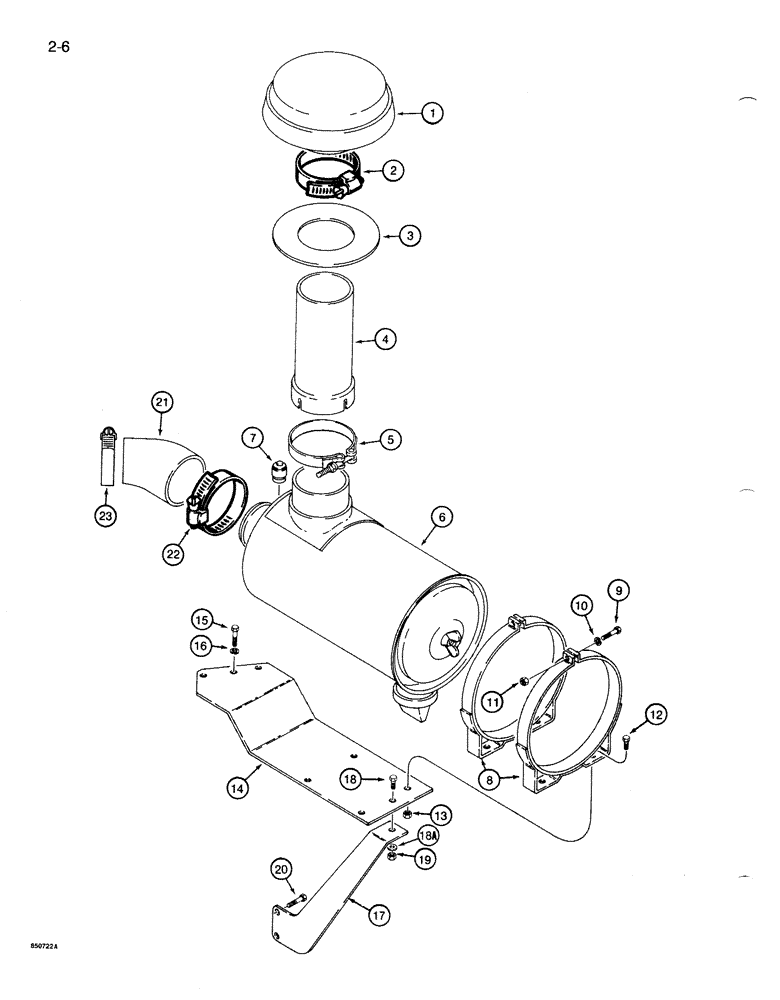

Запчасти Case 1085B (2-006) - AIR CLEANER AND AIR INTAKE PARTS (02) - ENGINE

S512971

CAP

ASSEMBLY - air inlet tube, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

CAP - air inlet tube

1шт.

2

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - adj, 4-1/16 - 5 inch dia

1шт.

3

S241675

PROTECTOR

PAD - rubber, Serial Range: tube-hood

1шт.

4

A171105

PIPE ASSY.

TUBE - air cleaner inlet

1шт.

5

214-362

CLAMP,#118, 4.56"-4.87", T-Bolt

- tube to air cleaner

1шт.

6

A170613

AIR CLEANER

CLEANER ASSEMBLY - air, parts list Fig. 2-008

1шт.

7

A59569

INDICATOR

- restriction, air cleaner

1шт.

8

A16574

BAND

- air cleaner

2шт.

9

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

2шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

13

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

4шт.

14

S241807

BRACKET

- mounting, air cleaner

1шт.

15

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

Bracket to engine Hex, M10 x 25, 8.8, Full Thd

3шт.

16

892-11010

LOCK WASHER,M10

3шт.

17

S241806

SUPPORT

- air cleaner bracket

1шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

18a

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

19

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

1шт.

20

A171690

BOLT

BOLT - hex, 12 - 1.75 x 85mm, special, bracket, Serial Range: support-engine

2шт.

21

S516467

ELBOW

HOSE - 45 degree, air, Serial Range: cleaner-turbocharger

1шт.

22

214-362

CLAMP,#118, 4.56"-4.87", T-Bolt

- adj, 4-9/16 - 4-7/8 inch dia, at air cleaner

1шт.

23

214-379

CLAMP,#84, 3.50"-3.81", T-Bolt

- adj, 3-1/2 - 3-13/16 inch dia, at turbocharger, replaces 214-358 clamp

1шт.
