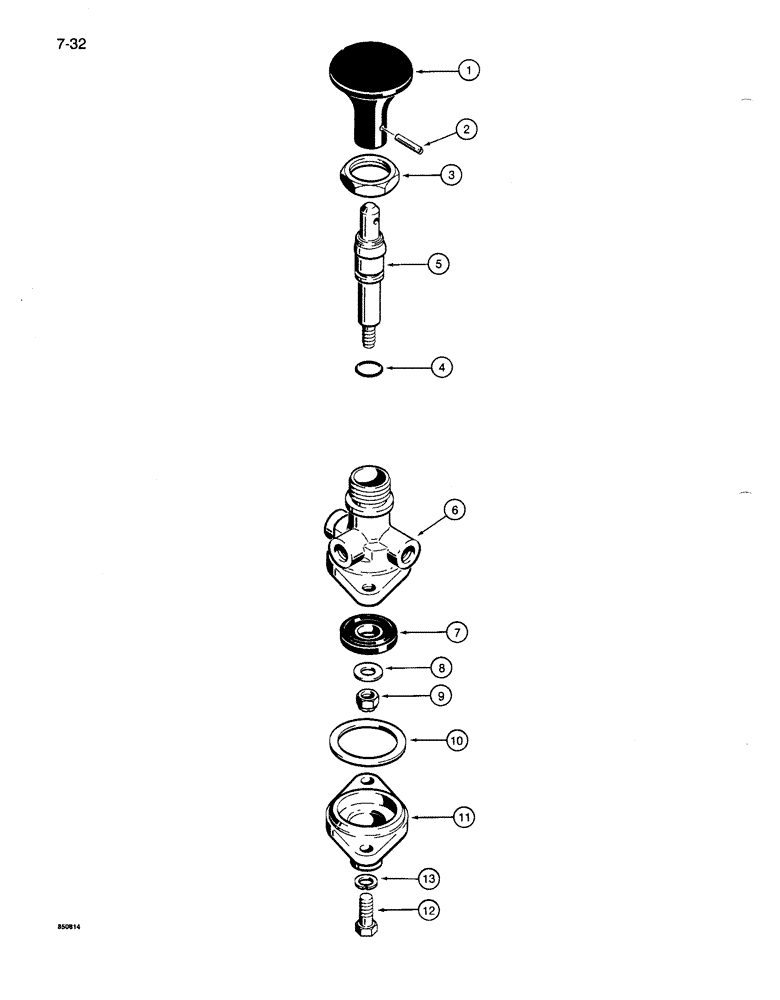

Запчасти Case 1085B (7-032) - S220779 DIGGING BRAKE AIR VALVE (07) - BRAKES

S220779

VALVE

ASSEMBLY - digging brake air, Includes: Ref. 1 - 13

1шт.

1

S94641

BUTTON

- control valve

1шт.

2

138-2087

PIN,5/32" x 5/8", Coiled

valve button 5/32" x 5/8", Coiled

1шт.

3

S94640

NUT

- special

1шт.

4

S87983

O-RING,0.486" ID x 0.07" Width

- plunger

1шт.

5

S94639

PLUNGER

- digging brake air valve

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - digging brake air valve

1шт.

7

S87984

VALVE

- inlet and exhaust

1шт.

8

S87985

WASHER

- special

1шт.

9

131-498

LOCK NUT,1/4"-28, GB

NUT - light hex, self-locking, 1/4 inch NF

1шт.

10

S87986

RING

SEAL - cover

1шт.

11

L33700

COVER

- valve

1шт.

12

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

13

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
