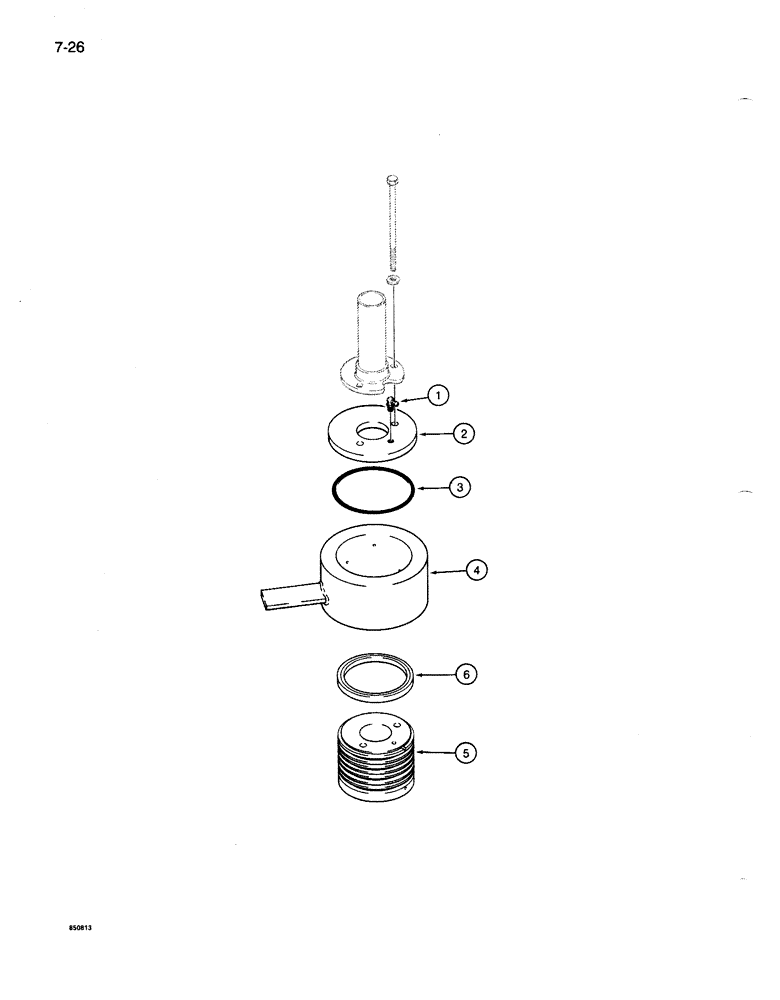

Запчасти Case 1085B (7-026) - 3-PORT AIR SWIVEL, UNITS WITH MALE TUBE PORTS ON HYDRAULIC SWIVEL (07) - BRAKES

S516761

PIVOT

SWIVEL ASSEMBLY - 3-port air, no longer available, order S517005 swivel assembly, parts list Fig. 7-028, Includes: Ref. 1 - 6

1шт.

See figure 9-33 for the air swivel mounting hardware.

1шт.

1

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

2

S242440

TURBINE

COVER - swivel assembly

1шт.

3

S120232

O-RING,4.237" ID x 0.103" Width

- cover

1шт.

4

S242439

HOUSING

- air swivel

1шт.

5

S516762

TURBINE

BODY - air swivel

1шт.

6

S120045

SEAL

- air swivel

4шт.
