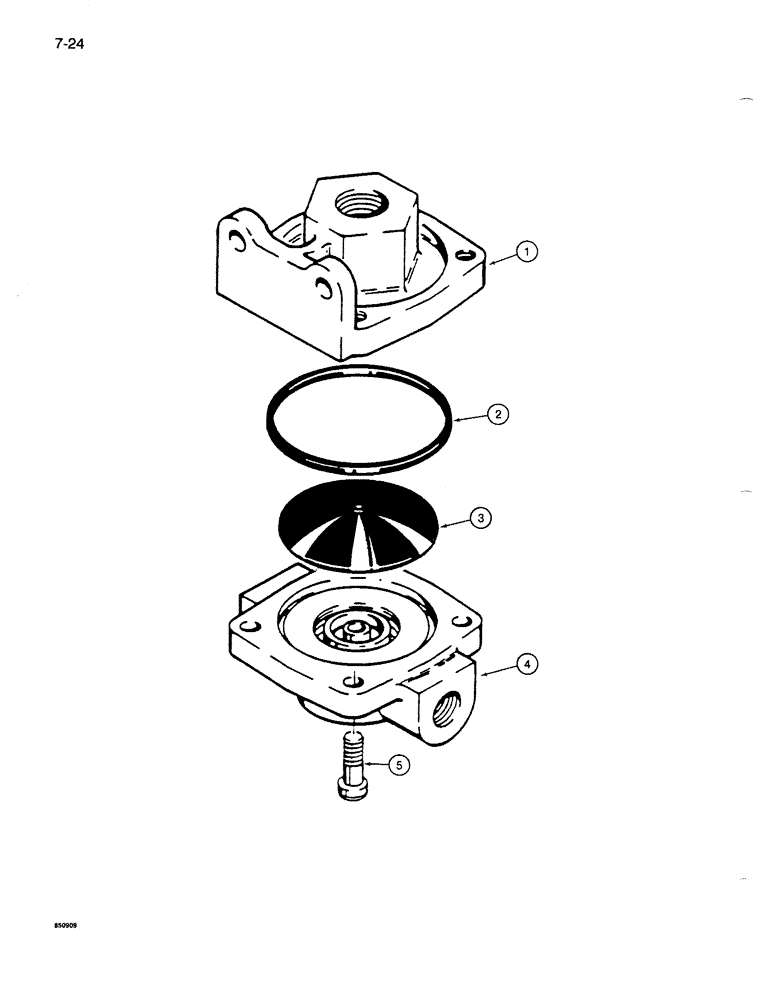

Запчасти Case 1085B (7-024) - QUICK RELEASE BRAKE VALVE (07) - BRAKES

L71758

VALVE

ASSEMBLY - quick release, parking brake, Includes: Ref. 1 - 5

1шт.

1

D72740

COVER

- valve

1шт.

2

D73718

SEAL ASSY.

SEAL - cover

1шт.

3

D72741

DIAPHRAGM

- valve

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

5

182-204

SCREW,Sl Pan Hd, 1/4" - 20 x 3/4"

- machine, pan head slotted, 1/4 NC x 3/4 inch

4шт.
