Артикул
Название
Примечание
Количество

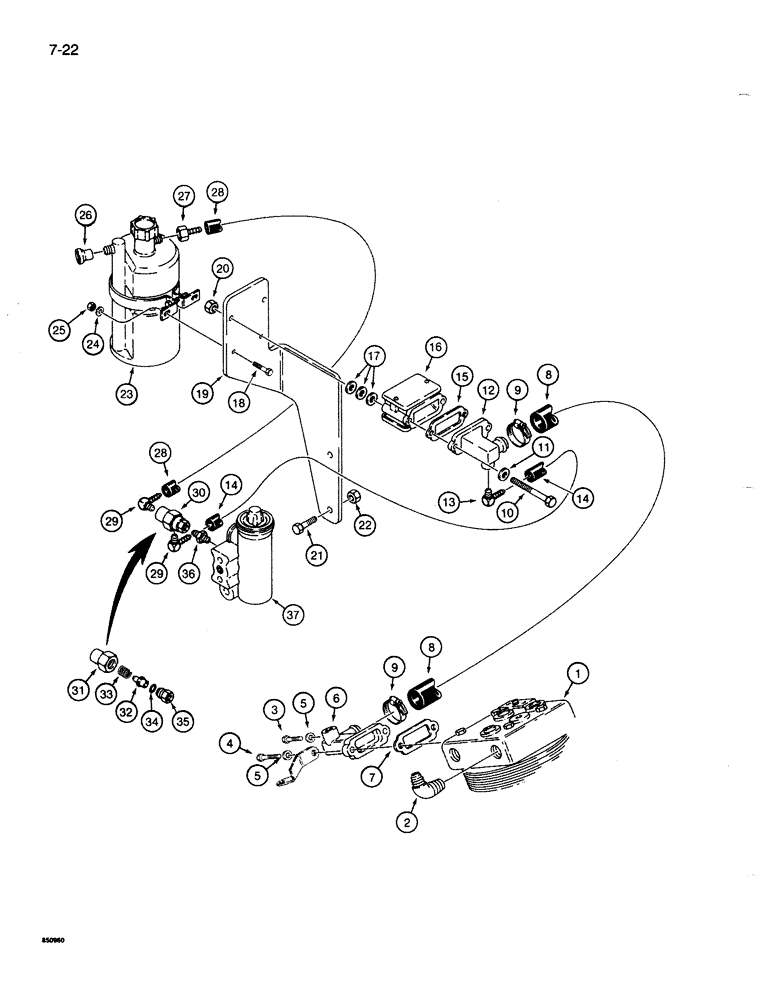

1
J905724
COMPRESSOR
ASSEMBLY - air, brake, parts list Fig. 7-018
1шт.
2
222-777
ELBOW,90 Degree, 7/8"-18, 45 Degree Fl x 1/2" NPT
- 90 degree, 7/8-14 45 degree flare x 1/2 inch PT
1шт.
3
413-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
1шт.
4
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
- hex, 5/16 NC x 1 inch
1шт.
6
L32921
ELBOW UNION
ADAPTER - air compressor inlet
1шт.
7
L31457
GASKET
- adapter
1шт.
8
S119451
HYDRAULIC HOSE,0.75" ID x 20.00", SAE 100R3 Class H
- Compressor inlet, Cut from S118382 bulk hose, See below 0.75" ID x 20.00", SAE 100R3 Class H
1шт.
9
214-1416
HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm
CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm
2шт.
10
413-556
BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5
- hex, 5/16 NC x 3-1/2 inch
2шт.
11
495-11034
WASHER,5/16", SAE
5/16" SAE (flat, 11/32 x 11/16 x 1/16")
2шт.
12
S242034
INTAKE ASSY
ADAPTER - filter
1шт.
13
217-292
FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF
ELBOW - 90 degree, 1/4 barb end x 1/8 inch PT
1шт.
14
S120573
HOSE - 25 inch (635 mm) long, filter adapter to check valve, cut from S120557 bulk hose, see below
1шт.
15
L31457
GASKET
- adapter
1шт.
16
D65134
FILTER
HOUSING - air filter
1шт.
16a
S94725
ELEMENT
FILTER - air, not shown
1шт.
17
495-11034
WASHER,5/16", SAE
5/16" SAE (flat, 11/32 x 11/16 x 1/16")
6шт.
18
413-416
BOLT,Hex, 1/4" - 20 x 1", Gr 5
- hex, 1/4 NC x 1 inch
2шт.
19
S242766
BRACKET
- alcohol evaporator bottle mounting
1шт.
20
231-1445
NUT,5/16"-18, GB
NUT - light hex, self-locking, 5/16 inch NC
2шт.
21
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
- hex, 3/8 NC x 1-1/4 inch
2шт.
22
131-52
NUT,3/8"-16, GC
NUT - light hex, self-locking, 3/8 inch NC
2шт.
23
S118424
EVAPORATOR
BOTTLE - alcohol evaporator, plastic
1шт.
24
495-11028
WASHER,1/4", SAE
(flat, 9/32 x 5/8 x 1/16") 1/4", SAE
2шт.
25
86625061
NUT,1/4"-20, GB
NUT - light hex, self-locking, 1/4 inch NC
2шт.
26
S118426
FILTER
- alcohol evaporator bottle
1шт.
27
217-191
FITTING,1/4" Hose Barb x 1/8" Female NPTF
Adapter, straight 1/4" Hose x 1/8" NPTF, Fem, Barbed
1шт.
28
S120573
HOSE - 25 inch (635 mm) long, check valve to bottle, cut from S120557 bulk hose, see below
1шт.
29
217-292
FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF
ELBOW - 90 degree, 1/4 barb end x 1/8 inch PT
2шт.
30
S242763
VALVE
ASSEMBLY - check, alcohol evaporator, Includes: Ref. 31 - 35
1шт.
31
NSS
NOT SOLD SEPARAT
BODY - check valve
1шт.
32
N13031
VALVE POPPET
POPPET - check valve
1шт.
33
N13032
SPRING
- poppet
1шт.
34
A28090
O-RING,0.301" ID x 0.441" OD x 0.07"
-011, 70 Duro, .301" ID x .070" Thk - Check valve
1шт.
35
NSS
NOT SOLD SEPARAT
FITTING - check valve
1шт.
36
217-1079
HYD CONNECTOR,1/8" - 27 NPTF
NIPPLE - hex, 1/8 PT x 1-1/16 inch, check valve to governor
1шт.
37
D72831
GOVERNOR
ASSEMBLY - air compressor, parts list Fig.7-020
1шт.
S118382
HOSE,0.75" ID x 240.00", SAE 100R4
0.75" ID x 240.00" Bulk, SAE 100R4
1шт.
S120557
HOSE,0.25" ID x 300.00", SAE 30R6
Bulk 0.25" ID x 300.00", SAE 30R6
1шт.
Выбрано товаров: 40
