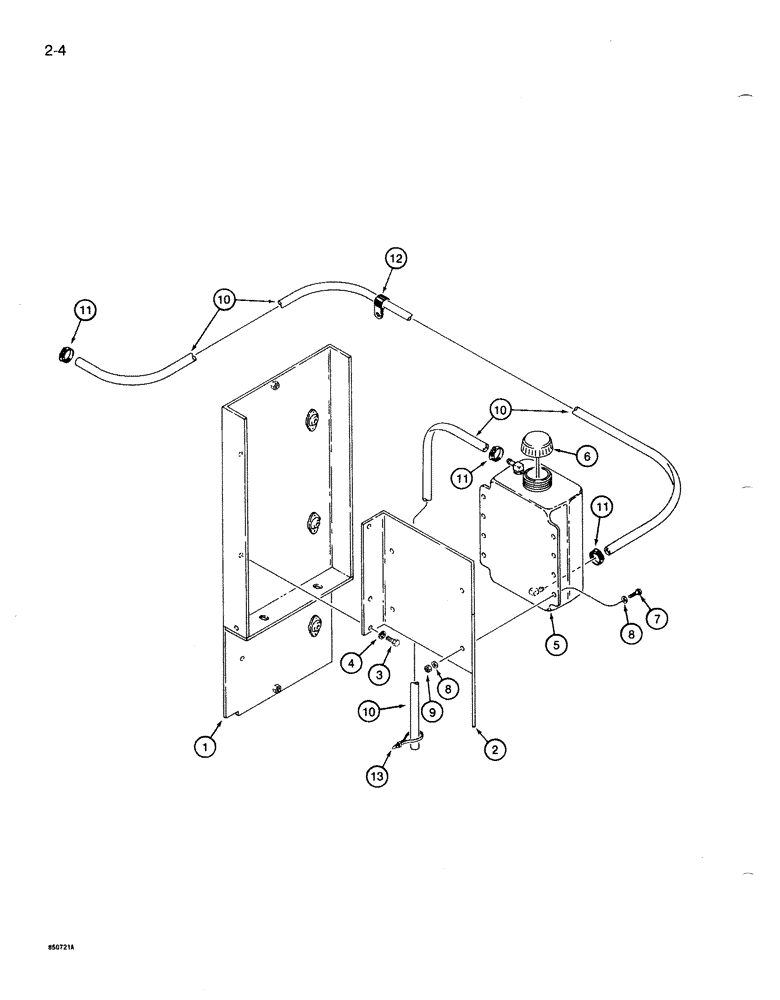

Запчасти Case 1085B (2-004) - COOLANT RECOVERY SYSTEM (02) - ENGINE

1

S516720

BRACKET

- radiator and cooler mounting, right-hand, see Fig. 2-002 for radiator, oil cooler and brackets

1шт.

2

S242136

BRACKET

- recovery bottle mounting

1шт.

3

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

A184374

RESERVOIR

BOTTLE - coolant recovery, replaces A171774 bottle

1шт.

6

A184079

CAP

- recovery bottle, replaces A171929 cap

1шт.

7

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

4шт.

8

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

8шт.

9

86625061

NUT,1/4"-20, GB

NUT - light hex, self-locking, 1/4 inch NC

4шт.

10

D94979

FUEL HOSE,7.90 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

HOSE , Radiator overflow and recovery bottle overflow 7.90 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

2шт.

11

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

overflow hoses #4, 0.25/0.62 Type F Worm

3шт.

12

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- radiator overflow hose

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
