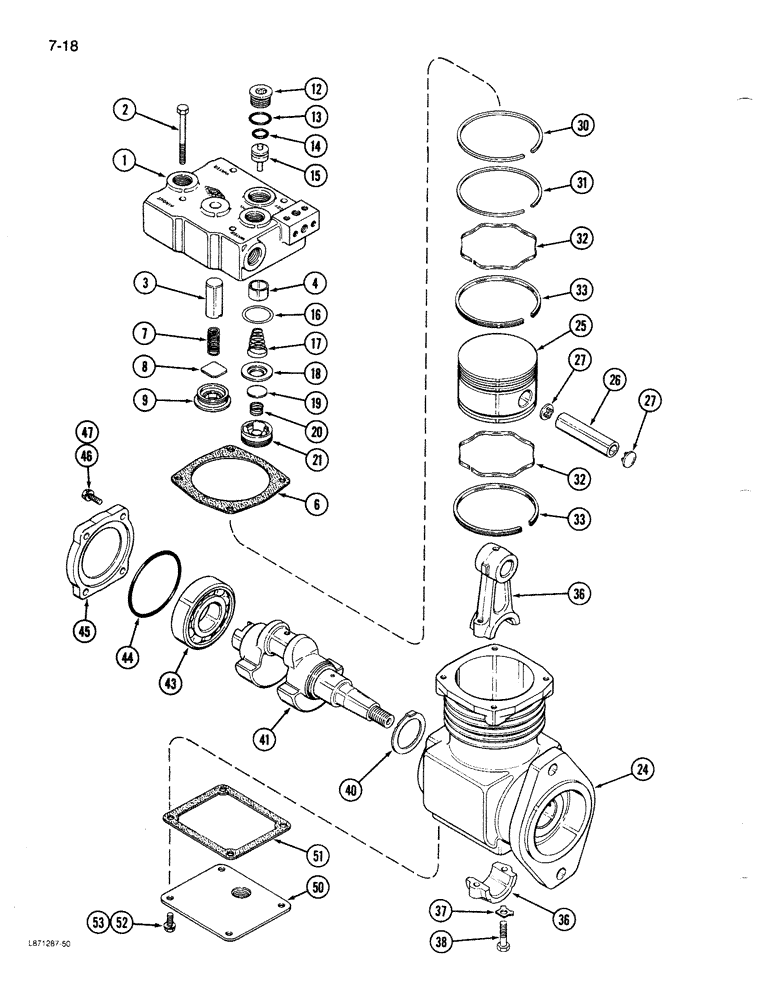

Запчасти Case 1085B (7-018) - AIR COMPRESSOR (07) - BRAKES

J905724

COMPRESSOR

ASSEMBLY - air, Includes: Ref. 1 - 53

1шт.

1

A173824

GASKET

HEAD - cylinder

1шт.

2

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch

4шт.

3

S117752

VALVE

STOP - inlet valve

1шт.

4

N9715

BUSHING

1шт.

N9714

HEAD

REPAIR KIT - cylinder head, Includes: Ref. 6 - 24

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET - head, cylinder

1шт.

7

S117754

SPRING

- valve

1шт.

8

L31450

VALVE

- exhaust

1шт.

9

NSS

NOT SOLD SEPARAT

SEAT - valve

1шт.

12

NSS

NOT SOLD SEPARAT

PLUG - hex

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - piston, large

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - piston, small

1шт.

15

NSS

NOT SOLD SEPARAT

PISTON - unloader

1шт.

16

NSS

NOT SOLD SEPARAT

GASKET - unloader

1шт.

17

NSS

NOT SOLD SEPARAT

SPRING - unloader

1шт.

18

NSS

NOT SOLD SEPARAT

SEAT - valve

1шт.

19

NSS

NOT SOLD SEPARAT

VALVE - inlet

1шт.

20

NSS

NOT SOLD SEPARAT

SPRING - valve

1шт.

21

NSS

NOT SOLD SEPARAT

STOP - valve

1шт.

24

NSS

NOT SOLD SEPARAT

BLOCK - compressor, Includes: Ref. 25 - 27

1шт.

Ref. #24--This Ref. is not part of the N9714 repair kit but it is NSS

1шт.

N9719

KIT

PISTON ASSEMBLY - compressor

1шт.

25

NSS

NOT SOLD SEPARAT

PISTON - compressor

1шт.

26

NSS

NOT SOLD SEPARAT

PIN - piston

1шт.

27

D80616

BUTTON

PLUG - pin

2шт.

N9717

RING

KIT - piston, Includes: Ref. 30 - 33

1шт.

30

NSS

NOT SOLD SEPARAT

RING - piston (top)

1шт.

31

NSS

NOT SOLD SEPARAT

RING - piston (second)

1шт.

32

NSS

NOT SOLD SEPARAT

RING - piston (expander)

2шт.

33

NSS

NOT SOLD SEPARAT

RING - piston, oil

2шт.

N9721

ROD, CONNECTING

ROD ASSEMBLY - connecting, Includes: Ref. 36 - 38

1шт.

36

NSS

NOT SOLD SEPARAT

ROD - connecting

1шт.

37

NSS

NOT SOLD SEPARAT

LOCK - bolt

1шт.

38

NSS

NOT SOLD SEPARAT

BOLT - rod

2шт.

40

S117757

WASHER, THRUST

WASHER - thrust

2шт.

41

NSS

NOT SOLD SEPARAT

CRANKSHAFT - compressor

1шт.

43

ST291

BEARING, BALL,35mm ID x 80mm OD x 21mm W

BALL BEARING - crankshaft

1шт.

44

A173807

O-RING,2.971" ID x 0.07"

1шт.

45

A173806

COVER

- end, crankshaft

1шт.

46

414-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5

- hex, 5/16 NF x 1 inch

4шт.

47

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

50

A173810

COVER

- bottom, crankshaft

1шт.

51

A173809

GASKET

- cover, bottom

1шт.

52

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

4шт.

53

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
