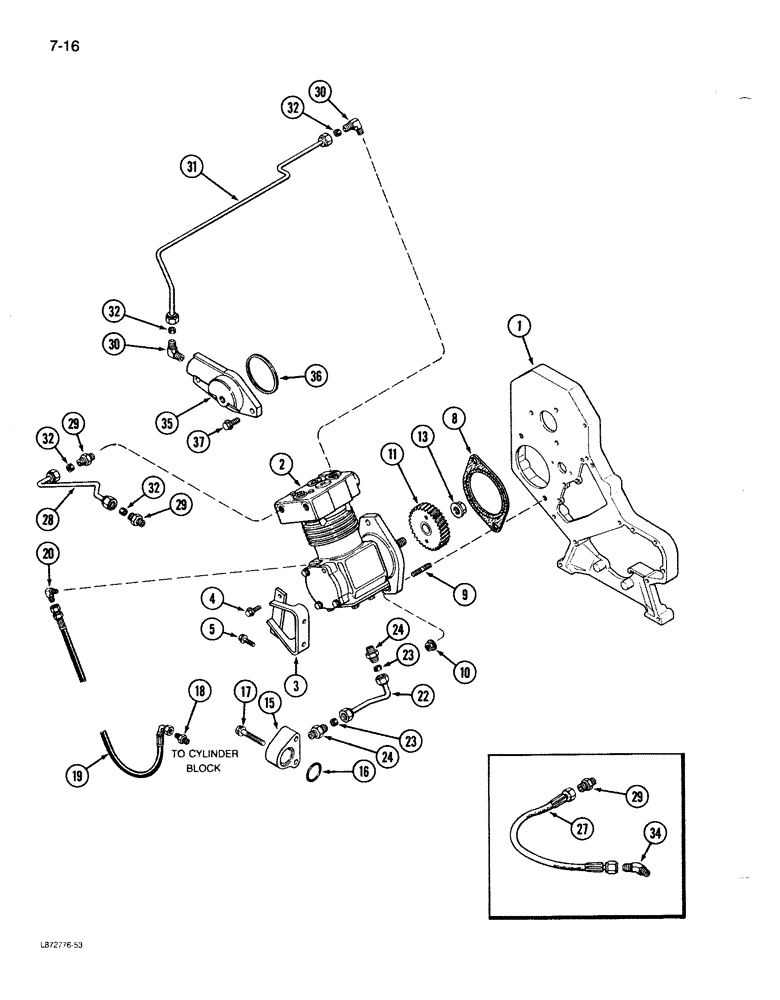

Запчасти Case 1085B (7-016) - AIR COMPRESSOR SYSTEM (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
HOUSING - timing gear (See Figure 2-18)
1шт.
2
REF
INSTRUCTION
COMPRESSOR ASSEMBLY -air (See Fig. 7-018)
1шт.
3
J915367
BRACE
- mounting (Replaces J905725)
1шт.
4
413-524
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
- hex, 5/16 NC x 1-1/2 inch (Replaces A77510)
2шт.
5
845-8035
BOLT,Hvy Hex, M8 x 35mm, Cl 8.8
- hex flange, 8 mm - 1.25 x 35 mm (Replaces J900630)
2шт.
8
A77441
GASKET
- compressor mounting
1шт.
9
J913370
STUD
- compressor mounting (Replaces J905371)
2шт.
11
J909381
GEAR
ASSEMBLY - drive (Replaces J905608)
1шт.
12
829-2312
FLANGE NUT,M12 x 1.75, Flg, Cl 10
- hex flange, 12 mm - 1.75, class 10
2шт.
13
J903269
NUT
- hex, gear retainer
1шт.
15
J904693
SPACER
- connector (See Fig. 2-032)
1шт.
16
J906704
O-RING
- sealing
1шт.
17
J905372
FLANGE BOLT,Hex, M12 x 60mm, Cl 10.9
BOLT - flanged hex, 12 mm - 1.75 x 60 mm
2шт.
18
222-901
HYD CONNECTOR,7/16"-20 45 Degree Fl x 1/8" NPT
ADAPTER - straight, 7/16-20 flare x 1/8 inch PT
1шт.
19
J911705
HOSE
ASSEMBLY - oil (Replaces J906666)
1шт.
20
A77512
ELBOW
- adapter, male
1шт.
22
J905310
TUBE ASSY.,12.7 mm OD x 164 mm L
TUBE ASSEMBLY - drain
1шт.
23
A77515
GASKET
GROMMET - drain tube
2шт.
24
A77513
UNION
CONNECTOR - straight, 13/16-18 thread x 1/2 inch PT
2шт.
27
J905502
HOSE
ASSEMBLY - coolant (If equipped)
1шт.
28
J910910
HOSE
TUBE ASSEMBLY - coolant
1шт.
29
A77513
UNION
CONNECTOR - straight, 1/2-14 thread x 3/4 inch PT (Replaces A77516)
1шт.
30
A77517
UNION
ELBOW - 90 degree, 13/16-18 thread x 1/2 inch PT
2шт.
31
J905473
TUBE,12.7 mm OD x 901 mm L
ASSEMBLY - inlet
1шт.
32
A77515
GASKET
GROMMET - drain tube
2шт.
34
J905503
ELBOW
- 45 degree, 3/4-16 thread x 1/2 PT
1шт.
35
J910529
CONNECTION
- water (Replaces J905314)
1шт.
36
J910530
SEAL
GASKET (Replaces J908023)
1шт.
37
J901249
FLANGE BOLT,Hvy Hex, M12 x 25mm, Cl 10.9
BOLT - hex flange, 12 mm - 1.75 x 25 mm
2шт.
Выбрано товаров: 29
