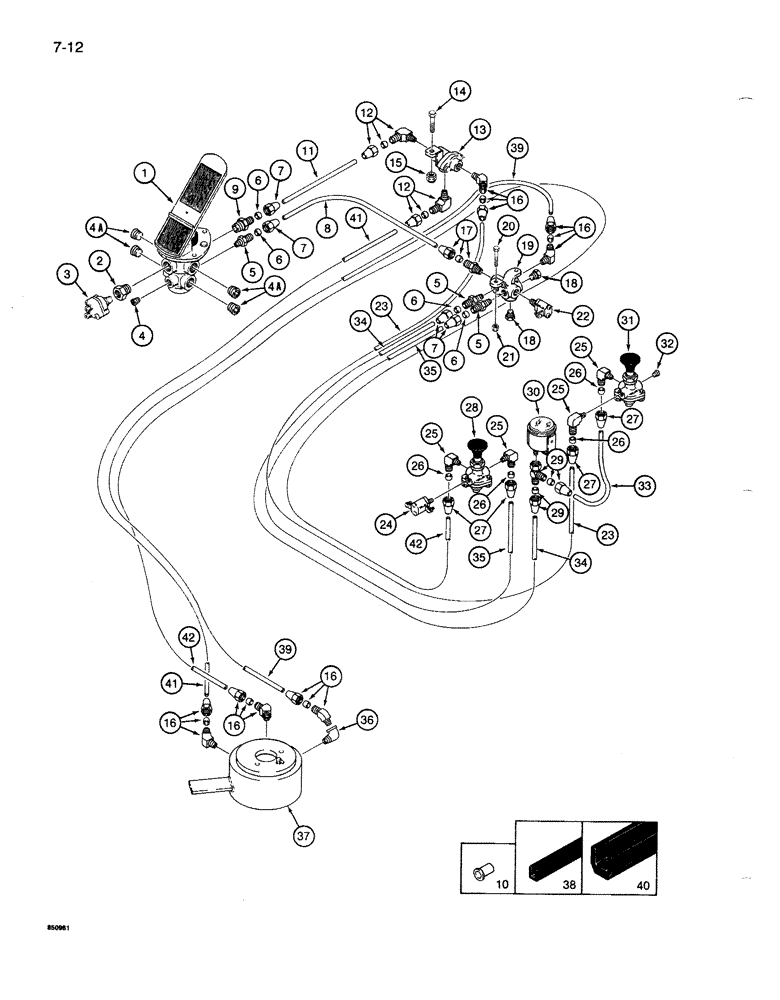

Запчасти Case 1085B (7-012) - BRAKE SYSTEM, AIR SWIVEL TO BRAKE TREADLE, AND BRAKE CONTROLS AT CONSOLE (07) - BRAKES

1

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - treadle and air, foot brake, parts list Figure 7-36

1шт.

2

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

1шт.

3

L47989

SWITCH

- stop lamp

1шт.

4

221-841

PLUG

- hex socket, 1/4 inch PT, auxiliary port

1шт.

4a

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket, 1/2 inch PT

4шт.

5

222-1842

FITTING,17/32"-24 x 1/4" NPT

ADAPTER - compression, 3/8 tube OD x 1/4 inch PT, Includes: Ref. 6 and 7

3шт.

6

222-1860

SLEEVE,3/8" Tube, Comp

- spherical, 3/8 inch tube OD

1шт.

7

222-1865

NUT,17/32"-24, Sph Sleeve

NUT - hex, 3/8 tube OD x 17/32-24 inch

1шт.

8

REF

INSTRUCTION

TUBE - nylon, 11 inch (279 mm) long, cut to required length from S118405 bulk roll, see below, manifold to treadle valve

1шт.

9

222-1841

CONNECTOR, ELEC,17/32"-24 x 1/2" NPT

ADAPTER - compression, 3/8 tube OD x 1/2 inch PT, includes sleeve and nut, see Ref. 6 and 7

1шт.

10

222-2446

INSERT,1/4" Tube

SLEEVE - spherical, 3/8 inch tube OD, used in nylon tubes at all compression fittings

18шт.

11

REF

INSTRUCTION

TUBE - nylon, 8 inch (203 mm) long, cut from S118405 bulk roll, see below, treadle valve to dual check valve

1шт.

12

222-1848

ELBOW,90 Degree, 17/32"-24 x 1/4" NPT, Comp

- 90 degree, compression, 3/8 tube OD x 1/4 inch PT, includes sleeve and nut, see Ref. 6 and 7

2шт.

13

S117726

VALVE

ASSEMBLY - double check air, parts list Fig. 7-042

1шт.

14

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, for S117726 valve mounting

2шт.

15

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC, for S117726 valve mounting

2шт.

16

222-1818

ELBOW,45 Degree, 17/32"-24 x 1/4" NPT, Comp

- 45 deg, compression, 3/8 tube OD x 1/4 inch fem PT, includes sleeve and nut, Ref. 6 and 7

5шт.

17

222-1843

FITTING,17/32"-24 x 3/8" NPT

ADAPTER - compression, 3/8 tube OD x 3/8 inch PT, includes sleeve and nut, see Ref. 6 and 7

1шт.

18

217-86

PLUG,Hex Hd, 1/4"-18, Brass

- hex, 1/4 inch PT

2шт.

19

S234050

MANIFOLD

- brake

1шт.

21

86625061

NUT,1/4"-20, GB

NUT - light hex, self-locking, 1/4 inch NC, for S234050 manifold mounting

2шт.

22

S117792

INDICATOR

SWITCH - low air pressure

1шт.

23

REF

INSTRUCTION

TUBE - nylon, 43 inch (1092 mm) long, cut from S118405 bulk roll, see below, digging brake valve to double check valve

1шт.

S118405

HOSE,600.00", SAE J844

600.00", SAE J844

1шт.

24

S118713

SWITCH

- stop lamp air

1шт.

25

222-1847

ELBOW,90 Degree, 17/32"-24 x 1/8" NPT, Comp

- 90 degree, compression, 3/8 tube OD x 1/8 inch PT, Includes: Ref. 26 and 27

4шт.

26

222-1860

SLEEVE,3/8" Tube, Comp

- spherical, 3/8 inch tube OD

1шт.

27

222-1865

NUT,17/32"-24, Sph Sleeve

NUT - hex, 3/8 tube OD x 17/32-24 inch

1шт.

28

L103834

VALVE

ASSEMBLY - parking brake air, parts list Fig. 7-034

1шт.

29

222-2410

TEE

- compression, 3/8 tube OD br x tube OD x 1/8 inch fem PT, includes sleeve and nut, see Ref. 26 and 27

1шт.

30

S514989

GAUGE

- air pressure

1шт.

31

S220779

VALVE

ASSEMBLY - digging brake air, parts list Fig. 7-032

1шт.

32

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

1шт.

33

REF

INSTRUCTION

TUBE - nylon, 16 inch (406 mm) long, cut from S118405 bulk roll, air gauge tee to digging brake supply

1шт.

34

REF

INSTRUCTION

TUBE - nylon, 36 inch (914 mm) long, cut from S118405 bulk roll, manifold to air pressure gauge

1шт.

35

REF

INSTRUCTION

TUBE - nylon, 40 inch (1016 mm) long, cut from S118405 bulk roll, manifold to parking brake supply

1шт.

36

217-19

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- street, 90 degree, 1/4 inch PT x female PT

1шт.

37

REF

INSTRUCTION

SWIVEL ASSEMBLY - air, three port, see Fig. 7-026 and 7-028 for correct swivel

1шт.

38

REF

INSTRUCTION

MOULDING - rubber, 6 inch (152 mm) long, cut from S118467 bulk roll, for protection of nylon tubes

1шт.

39

REF

INSTRUCTION

TUBE - nylon, 78 inch (1981 mm) long, cut from S118405 bulk roll, air swivel port 3 to manifold, see Fig. 9-060, items 12 and 12A, for tubes used with 30 and 60 inch cab risers

1шт.

40

REF

INSTRUCTION

SEAL - rubber, 8 inch (203 mm) long, cut from S118606 bulk roll, nylon tube protection at front right console

1шт.

41

REF

INSTRUCTION

TUBE - nylon, 68 inch (1727 mm) long, cut from S118405 bulk roll, double check valve to air swivel port 2, see Fig. 9-060, items 11 and 11A, for tubes used with 30 and 60 inch cab risers

1шт.

42

REF

INSTRUCTION

TUBE - nylon, 111 inch (2819 mm) long, cut from S118405 bulk roll, parking brake to air swivel port 1, see Fig. 9-060, items 10 and 10A, for tubes used with 30 and 60 inch cab risers

1шт.

S118405

HOSE,600.00", SAE J844

600.00", SAE J844

1шт.

S118467

SEAL

MOULDING - rubber, 10 ft (3.05 m) long, bulk roll

1шт.

S118606

SEAL, GLASS

SEAL - rubber, 10 ft (3.05 m) long, bulk roll

1шт.

20

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

For S234050 manifold mounting Hex, 1/4"-20 x 1 1/4", G5

2шт.
