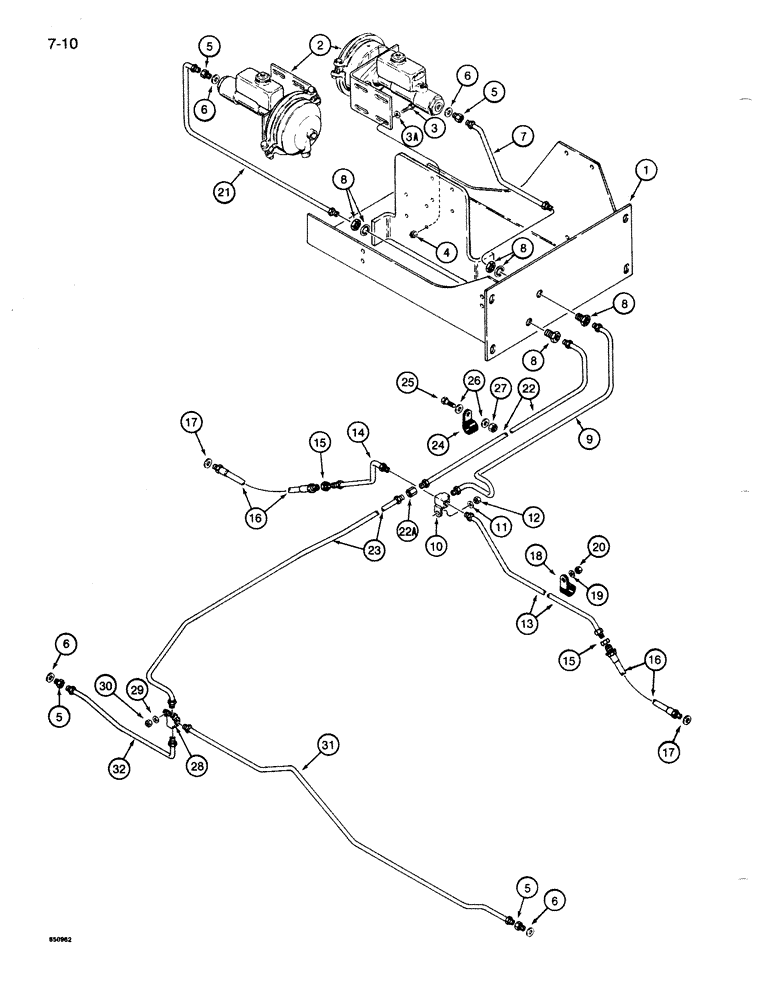

Запчасти Case 1085B (7-010) - BRAKE SYSTEM, HYDRAULIC BRAKE LINES FROM ACTUATORS TO WHEEL CYLINDERS (07) - BRAKES

1

S617422

SUPPORT

- air reservoir and brake actuators, see Fig. 7-4 for mounting hardware

1шт.

2

S618958

ACTUATOR

ASSEMBLY - front and rear brakes, parts list Figure 7-44

2шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

8шт.

3a

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

8шт.

4

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

8шт.

5

S66382

ADAPTER

- hydraulic brake tube

4шт.

6

A12988

GASKET

WASHER - adapter, copper

4шт.

7

S241850

TUBE ASSY.,0.31" OD x 12.25, 5.5" L

TUBE - hydraulic brake, front brake actuator

1шт.

8

S119003

FITTING

ADAPTER - tube, bulkhead type, includes lockwasher and nut

2шт.

9

S516201

TUBE ASSY.,0.31" OD

TUBE - hydraulic brake, front actuator to tee

1шт.

10

S79915

TEE

- hydraulic brake, front brake tubes

1шт.

11

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

1шт.

12

86625061

NUT,1/4"-20, GB

NUT - light hex, self-locking, 1/4 inch NC

1шт.

13

S39996

TUBE,25" OD

- hydraulic brake, right front cylinder

1шт.

14

S39995

TUBE,25" OD

- hydraulic brake, left front cylinder

1шт.

15

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex, jam, 5/8 inch NF

2шт.

16

S209753

HOSE

- brake tube to wheel cylinders, 21-1/8 inch (536 mm) long

2шт.

17

A12643

WASHER

- brake hose, copper

2шт.

18

A62209

CLAMP,5/16", Insul, 1/4" Bolt

- brake tube to frame

1шт.

19

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

1шт.

20

86625061

NUT,1/4"-20, GB

NUT - light hex, self-locking, 1/4 inch NC

1шт.

21

S241849

TUBE ASSY.,0.31" OD x 22.5, 8.65" L

TUBE - hydraulic brake, at rear brake actuator

1шт.

22

S242359

TUBE ASSY.,0.31" OD

TUBE - hydraulic brake, rear brake, front section

1шт.

22a

222-1054

HYD CONNECTOR,5/16" Inv Fl

COUPLING - 1/2-20 inch inverted flare

1шт.

23

S516200

TUBE ASSY.,0.31" OD

TUBE - hydraulic brake, rear brake, at tee

1шт.

24

S64985

CLAMP

- brake, Serial Range: tubes-frame

4шт.

25

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

26

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

6шт.

27

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

3шт.

28

S71659

TEE

- hydraulic brake, rear brake tubes

1шт.

29

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

1шт.

30

86625061

NUT,1/4"-20, GB

NUT - light hex, self-locking, 1/4 inch NC

1шт.

31

S37975

TUBE

- hydraulic brake, right rear cylinder

1шт.

32

S37857

TUBE

- hydraulic brake, left rear cylinder

1шт.
