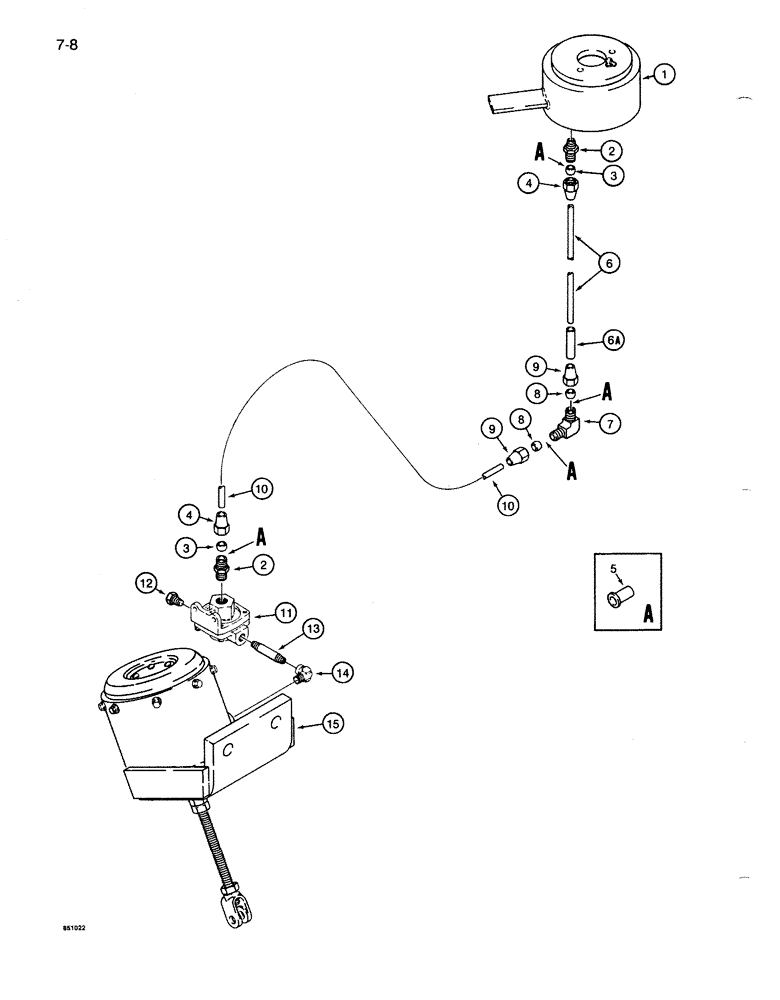

Запчасти Case 1085B (7-008) - BRAKE SYSTEM, AIR SWIVEL TO AIR CHAMBER (07) - BRAKES

1

REF

INSTRUCTION

SWIVEL ASSEMBLY - air, three port, see Fig. 7-026 and 7-028 for correct swivel

1шт.

2

222-1842

FITTING,17/32"-24 x 1/4" NPT

ADAPTER - compression, 3/8 tube OD x 1/4 inch PT, Includes: Ref. 3 - 4

2шт.

3

222-1860

SLEEVE,3/8" Tube, Comp

- spherical, 3/8 inch tube OD

1шт.

4

222-1865

NUT,17/32"-24, Sph Sleeve

NUT - hex, 3/8 tube OD x 17/32-24 inch

1шт.

5

222-2446

INSERT,1/4" Tube

SLEEVE - spherical, 3/8 inch tube OD, used in nylon tubes at all compression fittings

4шт.

6

REF

INSTRUCTION

TUBE - nylon, 18 inch (457 mm) long, cut from S118405 bulk roll, see below

1шт.

6a

REF

INSTRUCTION

HOSE - 2 inch (51 mm) long, cut from S118400 bulk hose, see below, fits as a sleeve over item 6 above

1шт.

7

222-2436

ELBOW

- 90 degree, compression, 3/8 inch tube OD

1шт.

8

222-1860

SLEEVE,3/8" Tube, Comp

- spherical, 3/8 inch tube OD

2шт.

9

222-1865

NUT,17/32"-24, Sph Sleeve

NUT - hex, 3/8 tube OD x 17/32-24 inch

2шт.

10

REF

INSTRUCTION

TUBE - nylon, 20 inch (508 mm) long, cut from S118405 bulk roll, see below

1шт.

11

L71758

VALVE

ASSEMBLY - quick release, parts list Fig. 7-024

1шт.

12

217-86

PLUG,Hex Hd, 1/4"-18, Brass

- hex, 1/4 inch PT

1шт.

13

217-217

NIPPLE - straight, 1/4 PT x 2-1/2 inch

1шт.

14

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- street, 90 degree, 1/4 inch PT x female PT

1шт.

15

S217432

CHAMBER

ASSEMBLY - air, parking brake, parts list Fig. 7-046

1шт.

S118405

HOSE,600.00", SAE J844

600.00", SAE J844

1шт.

S118400

HOSE,0.38" ID x 300.00"

- Bulk roll 0.38" ID x 300.00"

1шт.
