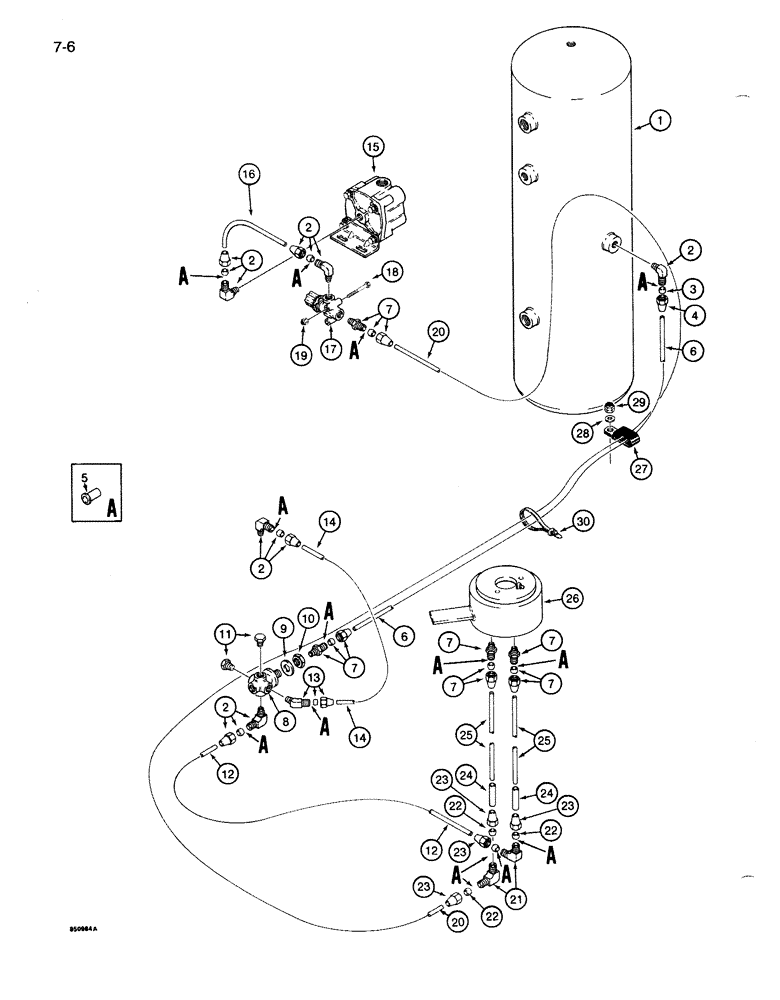

Запчасти Case 1085B (7-006) - BRAKE SYSTEM, RESERVOIR AND RELAY VALVE TO AIR SWIVEL (07) - BRAKES

1

S617271

RESERVOIR

- air

1шт.

2

222-1848

ELBOW,90 Degree, 17/32"-24 x 1/4" NPT, Comp

- 90 degree, compression, 3/8 tube OD x 1/4 inch PT, Includes: Ref. 3 and 4

5шт.

3

222-1860

SLEEVE,3/8" Tube, Comp

- spherical, 3/8 inch tube OD

1шт.

4

222-1865

NUT,17/32"-24, Sph Sleeve

NUT - hex, 3/8 tube OD x 17/32-24 inch

1шт.

5

222-2446

INSERT,1/4" Tube

SLEEVE - spherical, 3/8 inch tube OD, used in nylon tubes at all compression fittings

14шт.

6

S119500

TUBE - nylon, 126 inch (3200 mm) long, cut from S118405 bulk roll, see below, Serial Range: reservoir-manifold

1шт.

7

222-1842

FITTING,17/32"-24 x 1/4" NPT

ADAPTER - compression, 3/8 tube OD x 1/4 inch PT, includes sleeve and nut, Ref. 3 and 4

2шт.

8

S119019

FITTING

MANIFOLD - to air swivel and high-low solenoid, Includes: Ref. 9 and 10

1шт.

9

195-545

WASHER,3/4", SAE

- flat, 13/16 x 1-15/32 x 1/8 inch

1шт.

10

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

1шт.

11

217-86

PLUG,Hex Hd, 1/4"-18, Brass

- hex, 1/4 inch PT

2шт.

12

S119498

PLASTIC-RUBBER TUBE,0.375" OD x 32" L

TUBE - nylon, 32 inch (813 mm) long, cut from S118405 bulk roll, see below, manifold to air swivel, port 3

1шт.

13

222-1818

ELBOW,45 Degree, 17/32"-24 x 1/4" NPT, Comp

- 45 deg, compression, 3/8 tube OD x 1/4 inch fem PT, includes sleeve and nut, Ref. 3 and 4

1шт.

14

S119495

PLASTIC-RUBBER TUBE,0.375" OD x 17" L

TUBE - nylon, 17 inch (432 mm) long, cut from S118405 bulk roll, see below, manifold to high-low solenoid

1шт.

15

S515760

VALVE, BRAKE

VALVE ASSEMBLY - brake relay, parts list Fig. 7-030

1шт.

16

S119464

PLASTIC-RUBBER TUBE,0.375" OD x 12" L

TUBE - nylon, 12 inch (304 mm) long, cut from S118405 bulk roll, see below, brake relay valve to pressure reducing valve

1шт.

17

S242814

VALVE

- pressure reducing

1шт.

18

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

19

86625061

NUT,1/4"-20, GB

NUT - light hex, self-locking, 1/4 inch NC

2шт.

20

S119501

TUBE - nylon, 220 inch (5588 mm) long, cut from S118405 bulk roll, see below, pressure reducing valve to air swivel, port 2

1шт.

21

222-2436

ELBOW

- 90 degree, compression, 3/8 inch tube OD, Includes: Ref. 22 and 23

2шт.

22

222-1860

SLEEVE,3/8" Tube, Comp

- spherical, 3/8 inch tube OD

2шт.

23

222-1865

NUT,17/32"-24, Sph Sleeve

NUT - hex, 3/8 tube OD x 17/32-24 inch

2шт.

24

REF

INSTRUCTION

HOSE - 2 inch (51 mm) long, cut from S118400 bulk hose, see below, fits as a sleeve over Ref. 25 tube

2шт.

25

REF

INSTRUCTION

TUBE - nylon, 18 inch (457 mm) long, cut from S118405 bulk roll, see below, to air swivel through hydraulic swivel tube

2шт.

26

REF

INSTRUCTION

SWIVEL ASSEMBLY - air, three port, see Fig. 7-026 and 7-028 for correct swivel

1шт.

27

R14668

CLAMP

- air tubes to swivel, Serial Range: attaches-frame

1шт.

28

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

29

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

1шт.

30

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

S118405

HOSE,600.00", SAE J844

600.00", SAE J844

1шт.

S118400

HOSE,0.38" ID x 300.00"

- Bulk roll 0.38" ID x 300.00"

1шт.
