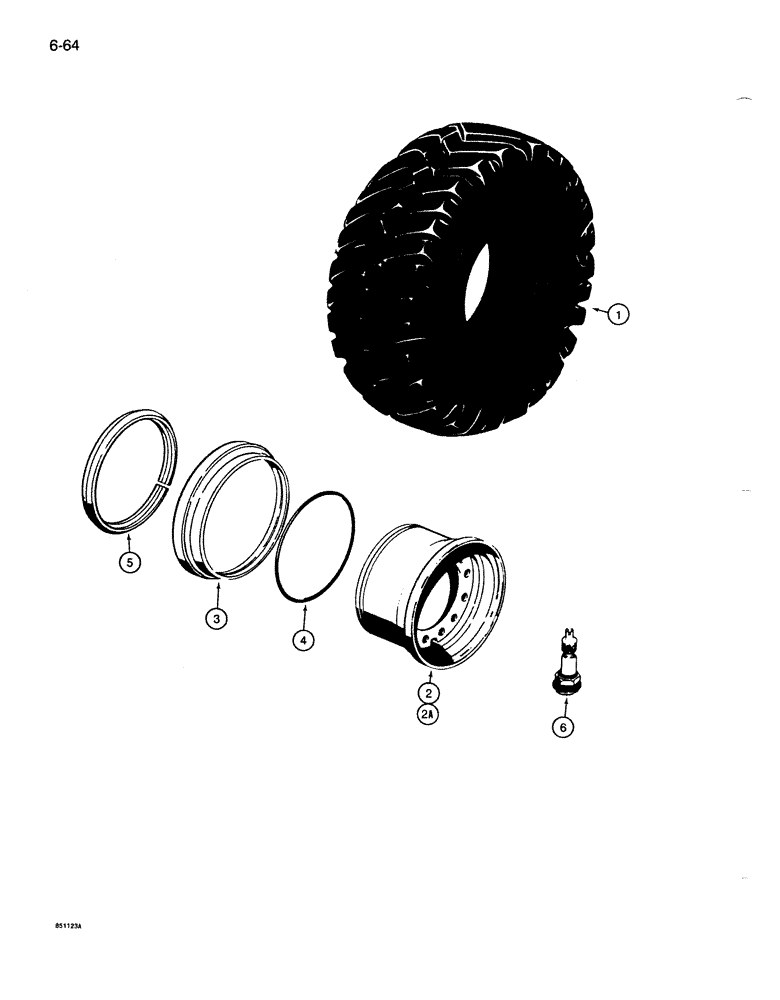

Запчасти Case 1085B (6-064) - WHEELS AND TIRES (06) - POWER TRAIN

1

REF

INSTRUCTION

TIRE - tubeless, 17.5 x 25, 12 ply, purchase from local source

4шт.

1

REF

INSTRUCTION

TIRE - tubeless, 17.5 x 25, 16 ply, purchase from local source

4шт.

1

REF

INSTRUCTION

TIRE - tubeless, 17.5 R25 - XRAT, (Michelin), purchase from local source

4шт.

2

S615325

WHEEL ASSY.

RIM - tire, flat wheel disc, if used

4шт.

2a

S94622

RIM

- tire, concave wheel disc, if used, not shown

4шт.

3

A19099

RING

- side, rim

4шт.

4

A19101

O-RING,6.6mm Thk x 590.55mm ID

- side rim

4шт.

5

A19100

LOCKING RING

RING - rim lock

4шт.

6

S80309

STEM

VALVE - tire

4шт.
