Запчасти Case 1085B (6-062) - DRIVE SHAFT, TRANSMISSION TO REAR AXLE (06) - POWER TRAIN

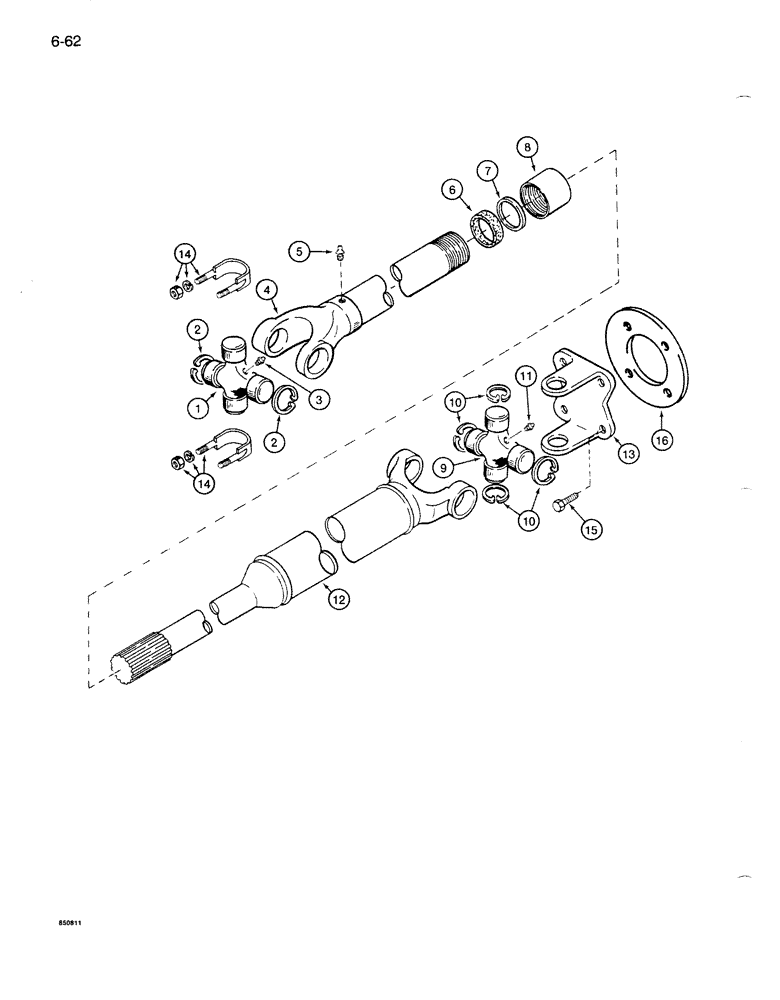

Схема запчастей Case 1085B - (6-062) - DRIVE SHAFT, TRANSMISSION TO REAR AXLE (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

S238498

SHAFT

ASSEMBLY - drive, transmission to rear axle, includes Ref. 13 yoke, Includes: Ref. 1 - 13

1шт.

S238979

SHAFT

ASSEMBLY - drive, transmission to rear axle, Includes: Ref. 1 - 12

1шт.

D45979

SPIDER ,U-JOINT

JOINT ASSEMBLY - universal, drive shaft, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

JOINT - universal, drive shaft

1шт.

2

NSS

NOT SOLD SEPARAT

RING - snap, bearing, only 2 required, 4 supplied with kit

4шт.

3

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

1шт.

4

S73704

YOKE

- slip

1шт.

5

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

1шт.

6

S12073

CORK

WASHER - cork

1шт.

7

S12072

BACK-UP RING

WASHER - special, cork retaining

1шт.

8

S12071

CAP

- yoke end

1шт.

D45979

SPIDER ,U-JOINT

JOINT ASSEMBLY - universal, drive shaft, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

JOINT - universal, drive shaft

1шт.

10

NSS

NOT SOLD SEPARAT

RING - snap, bearing

4шт.

11

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

1шт.

12

S239993

SHAFT

YOKE - with shaft, splined end

1шт.

13

S64879

FLANGE

YOKE - flange

1шт.

14

D45971

BOLT

U-BOLT - special, includes mounting hardware

2шт.

15

28-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 8

- hex, 1/2 NF x 1-1/2 inch, grade 8

4шт.

16

S236756

SPACER

- drive shaft to rear axle

1шт.

Выбрано товаров: 20
