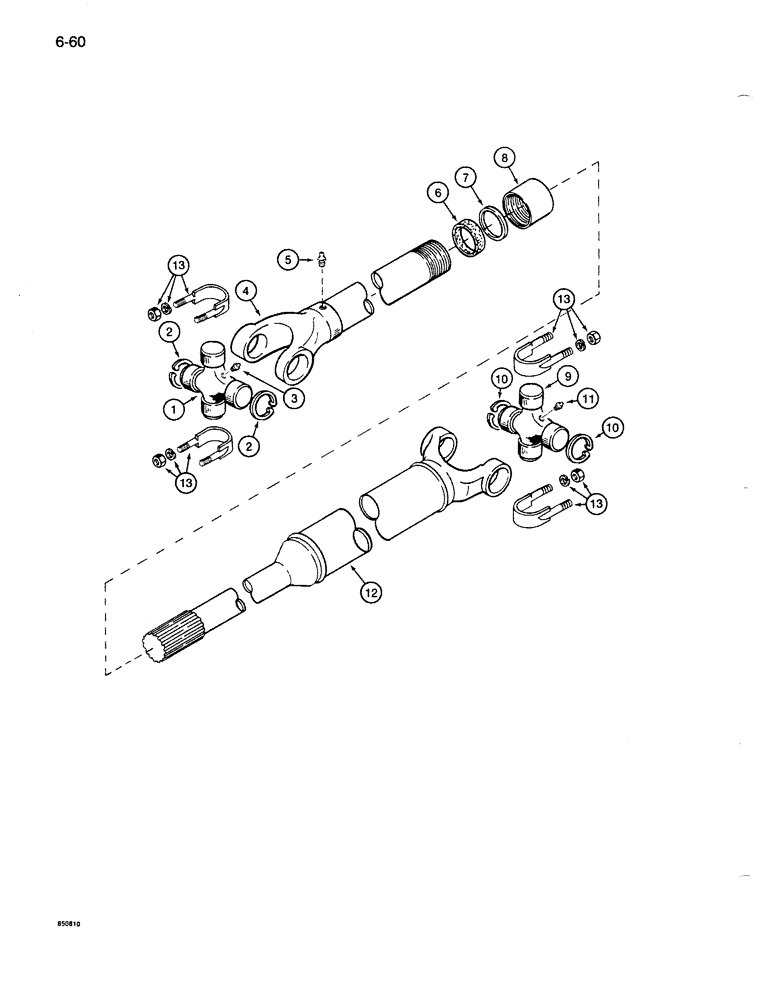

Запчасти Case 1085B (6-060) - DRIVE SHAFT, TRANSMISSION TO FRONT AXLE (06) - POWER TRAIN

S238979

SHAFT

ASSEMBLY - drive, transmission to front axle, Includes: Ref. 1 - 12

1шт.

D45979

SPIDER ,U-JOINT

JOINT ASSEMBLY - universal, drive shaft, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

JOINT - universal, drive shaft

1шт.

2

NSS

NOT SOLD SEPARAT

RING - snap, bearing, only 2 required, 4 supplied with kit

4шт.

3

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

1шт.

4

S73704

YOKE

- slip

1шт.

5

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight,1/4-28 taper x 11/16 inch

1шт.

6

S12073

CORK

WASHER - cork

1шт.

7

S12072

BACK-UP RING

WASHER - special, cork retaining

1шт.

8

S12071

CAP

- yoke end

1шт.

D45979

SPIDER ,U-JOINT

JOINT ASSEMBLY - universal, drive shaft, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

JOINT - universal, drive shaft

1шт.

10

NSS

NOT SOLD SEPARAT

RING - snap, bearing, only 2 required, 4 supplied with kit

4шт.

11

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

1шт.

12

S239993

SHAFT

YOKE - with shaft, splined end

1шт.

13

D45971

BOLT

U-BOLT - special, includes mounting hardware

4шт.
