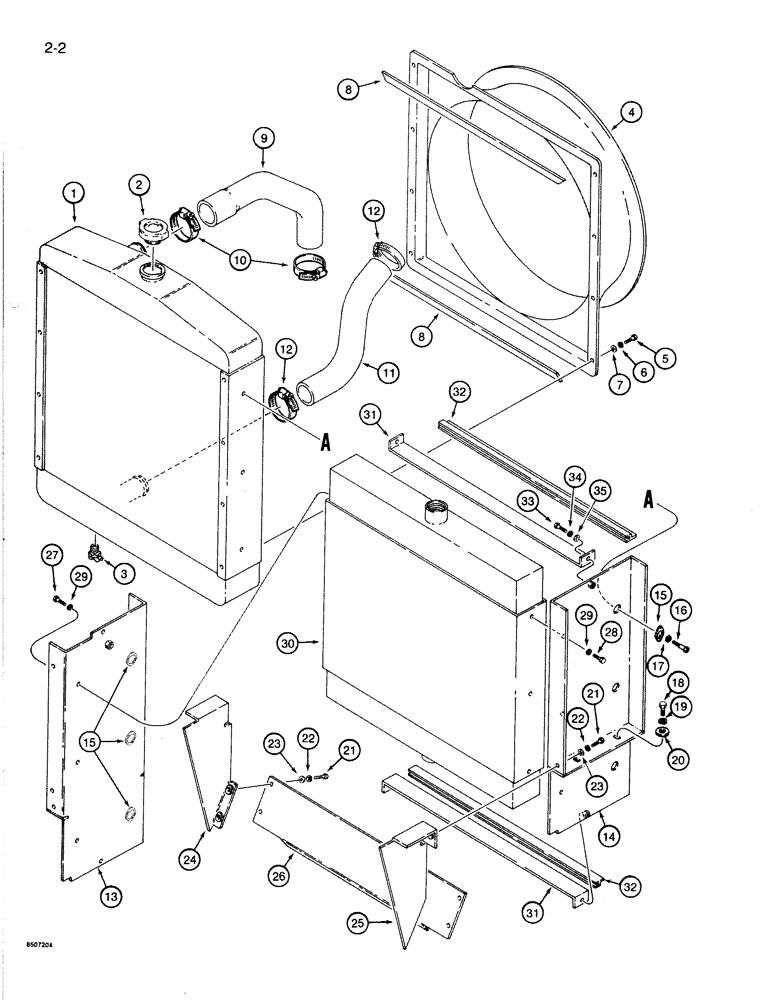

Запчасти Case 1085B (2-002) - RADIATOR, OIL COOLER AND HOSES (02) - ENGINE

1

A172331

RADIATOR

BRACKET - radiator and cooler mounting, right-hand, see Fig. 2-004 for radiator, oil cooler and brackets

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

3

A23656

COCK, DRAIN

VALVE - radiator drain

1шт.

4

A172295

SHROUD

- fan

1шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 x 20 mm

8шт.

6

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

8шт.

8

A171317

SEAL

-, Serial Range: shroud-radiator

2шт.

9

S516311

HOSE,45.00 mm ID, 58.00 mm ID x 370.00 mm, SAE 20R4 CLASS C

RADIATOR HOSE, , Upper 45.00 mm ID, 58.00 mm ID x 370.00 mm, SAE 20R4 CLASS C

1шт.

10

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

adj. #28, 1.31/2.25 Type F Worm

2шт.

11

S516312

HOSE,58.00 mm ID x 327.00 mm, SAE 20R4 CLASS C

RADIATOR HOSE, , Lower 58.00 mm ID x 327.00 mm, SAE 20R4 CLASS C

1шт.

12

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - adj, 2-1/16 - 3 inch dia

2шт.

13

S516718

BRACKET

- radiator and cooler mounting, left-hand, includes Ref. 15

1шт.

14

S516720

BRACKET

- radiator and cooler mounting, right-hand, includes Ref. 15

1шт.

15

S222918

SHOCK ABSORBER

MOUNT - insulating

3шт.

16

S76819

STEP BOLT

BOLT - shoulder, special

6шт.

17

93-21039

LOCK WASHER,Int Tooth, 3/8"

WASHER - internal tooth lock, 3/8 inch

6шт.

18

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

20

S95569

WASHER

- flat, special, hardened

4шт.

21

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

6шт.

22

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

23

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

6шт.

24

S515907

BRACKET

- shield mounting, left-hand

1шт.

25

S515905

BRACKET

- shield mounting, right-hand

1шт.

26

S241318

BRACKET

SHIELD - lower, oil cooler

1шт.

27

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

28

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, also mounts the coolant recovery bottle bracket

2шт.

29

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

30

A171762

COOLER

- hydraulic oil

1шт.

31

S242537

BRACKET

- cross, upper and lower

2шт.

32

S120311

SEAL - rubber, cross bracket, 28-1/2 inch (724 mm) long, cut from D74428 bulk roll, see below

4шт.

33

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

34

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

35

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch

4шт.

D74428

SEAL

- rubber, bulk roll, 12 ft (3.66 m) long

1шт.
