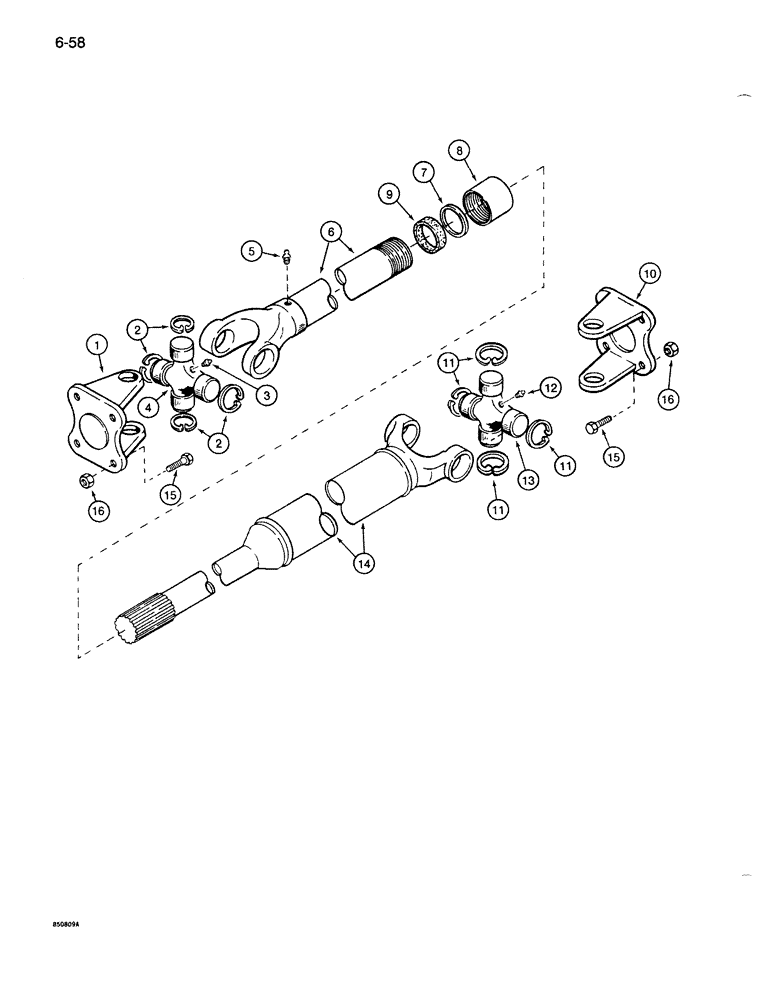

Запчасти Case 1085B (6-058) - DRIVE SHAFT, TORQUE CONVERTER TO TRANSMISSION (06) - POWER TRAIN

S238497

SHAFT

ASSEMBLY - drive, torque converter to transmission, Includes: Ref. 1 - 14

1шт.

1

S118315

YOKE

- flange

1шт.

S240058

KIT

JOINT ASSEMBLY - universal, drive shaft, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

RING - snap, bearing

4шт.

3

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

1шт.

4

NSS

NOT SOLD SEPARAT

JOINT - universal, drive shaft

1шт.

5

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

1шт.

6

S118319

YOKE

- slip

1шт.

7

H299347

WASHER

- special, cork retaining

1шт.

8

H299321

CAP

- yoke end, Includes: Ref. 9

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - cork

1шт.

10

S118315

YOKE

- flange

1шт.

S240058

KIT

JOINT ASSEMBLY - universal, drive shaft, Includes: Ref. 11-13

1шт.

11

NSS

NOT SOLD SEPARAT

RING - snap, bearing

4шт.

12

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

1шт.

13

NSS

NOT SOLD SEPARAT

JOINT - universal, drive shaft

1шт.

14

S240057

SHAFT

YOKE - with shaft, splined end

1шт.

15

28-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 8

- hex, 7/16 NF x 1-1/2 inch, grade 8

8шт.

16

129-530

NUT,7/16"-20, G8

8шт.
