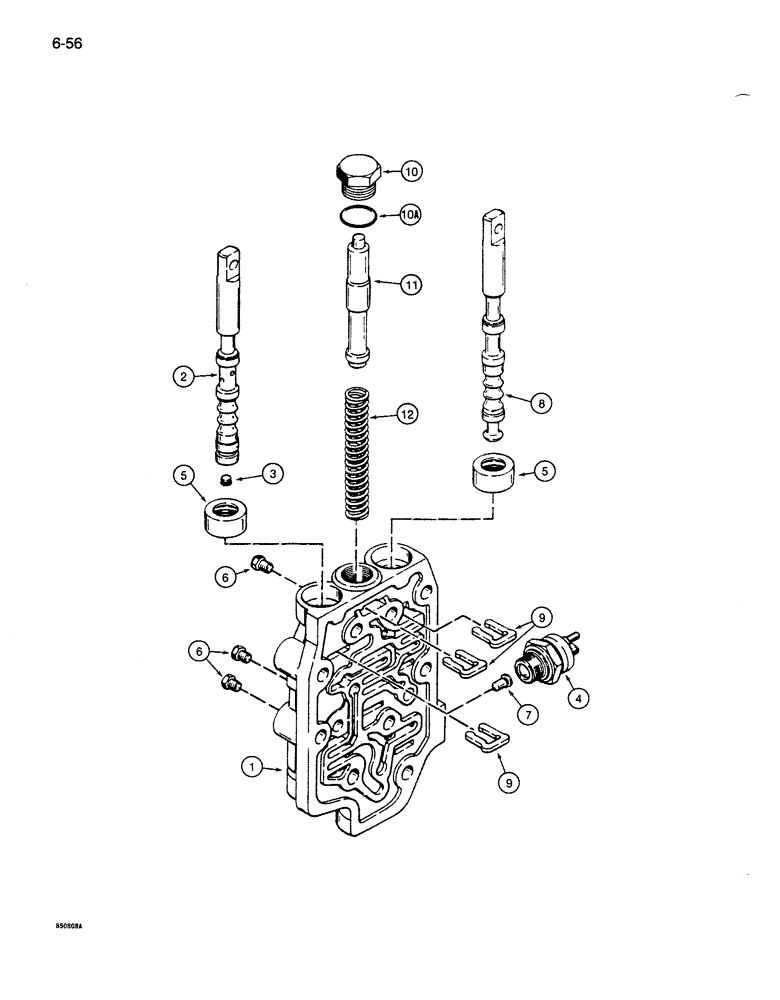

Запчасти Case 1085B (6-056) - TRANSMISSION, CONTROL VALVE (06) - POWER TRAIN

S614965

TRANSMISSION

ASSEMBLY - complete, used on 1085B, 1086B, includes parts listed on Fig. 6-044 through 6-056, Includes: Ref. 1 - 12, Serial Range: -JAK0031901

1шт.

S614965

TRANSMISSION

ASSEMBLY - complete, used on 1085B, 1086B, includes parts listed on Fig. 6-044 through 6-056, Includes: Ref. 1 - 12, Serial Range: -JAK0032301

1шт.

S619326

TRANSMISSION

ASSEMBLY - complete, used on 1085B, 1086B, includes parts listed on Fig. 6-044 through 6-056, Includes: Ref. 1 - 12, Start Serial: JAK0031901

1шт.

S619326

TRANSMISSION

ASSEMBLY - complete, used on 1085B, 1086B, includes parts listed on Fig. 6-044 through 6-056, Includes: Ref. 1 - 12, Start Serial: JAK0032301

1шт.

S239577

VALVE

CONTROL VALVE ASSEMBLY - transmission, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

2

E114395

SPOOL

- range selector, Includes: Ref. 3

1шт.

3

221-850

PLUG,Hex Soc, 1/16"-27

- hex socket, 1/16 inch PT, spool

1шт.

4

E114399

SWITCH

- neutral start, see Figure 4-18, Ref. 1, for harness connection

1шт.

5

D63387

OIL SEAL,15.88mm ID x 28.7mm OD x 13.87mm Thk

- oil, control valve housing

2шт.

6

221-850

PLUG,Hex Soc, 1/16"-27

- hex socket, 1/16 inch PT

3шт.

7

E114398

PIN

- neutral start switch

1шт.

8

N7205

SPOOL

- control valve, forward and reverse

1шт.

9

E114397

STOP

- spool

3шт.

10

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch O-ring boss, Spool, Incl. Ref. 10A

1шт.

10a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

E114401

SPOOL

- control valve

1шт.

12

D87217

SPRING

- spool

1шт.
