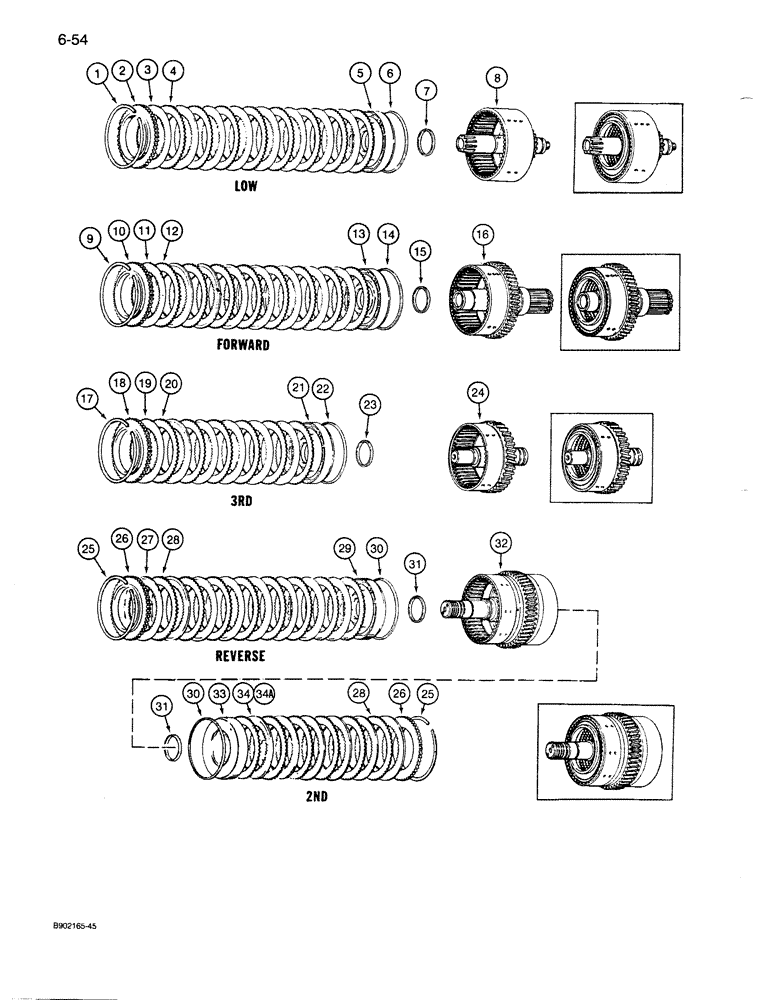

Запчасти Case 1085B (6-054) - TRANSMISSION, CLUTCHES (06) - POWER TRAIN

S614965

TRANSMISSION

ASSEMBLY - complete, used on 1085B, 1086B, includes parts listed on Fig. 6-044 through 6-056, Includes: Ref. 1 - 34, Serial Range: -JAK0031901

1шт.

S614965

TRANSMISSION

ASSEMBLY - complete, used on 1085B, 1086B, includes parts listed on Fig. 6-044 through 6-056, Includes: Ref. 1 - 34, Serial Range: -JAK0032301

1шт.

S619326

TRANSMISSION

ASSEMBLY - complete, used on 1085B, 1086B includes parts listed on Fig. 6-044 through 6-056, Includes: Ref. 1 - 34, Start Serial: JAK0031901

1шт.

S619326

TRANSMISSION

ASSEMBLY - complete, used on 1085B, 1086B includes parts listed on Fig. 6-044 through 6-056, Includes: Ref. 1 - 34, Start Serial: JAK0032301

1шт.

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - low, order individual components, Includes: Ref. 1 - 8

1шт.

1

E114380

RING, SNAP

RING - snap, backing plate

1шт.

2

E114381

PLATE

GEAR - backing plate, clutch disc

1шт.

3

N7219

DISC,92.66mm ID x 133.6mm OD x 2.41mm Thk

- clutch, friction, inner

8шт.

4

E114383

CLUTCH DISC

DISC - clutch, metal, outer

8шт.

5

E114384

PISTON

- clutch

1шт.

6

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING - piston, outer clutch

1шт.

7

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

- piston, inner clutch

1шт.

8

S117885

DRUM

HOUSING - clutch, with shaft

1шт.

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - forward, order individual components, Includes: Ref. 9 - 16

1шт.

9

E114380

RING, SNAP

RING - snap, backing plate

1шт.

10

E114381

PLATE

GEAR - backing plate, clutch disc

1шт.

11

N7217

DISC,92.66mm ID x 133.6mm OD x 2.41mm Thk

- clutch, friction, inner

8шт.

12

E114383

CLUTCH DISC

DISC - clutch, metal, outer

8шт.

13

E114384

PISTON

- clutch

1шт.

14

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING - piston, outer clutch

1шт.

15

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

- piston, inner clutch

1шт.

16

S117879

DRUM

HOUSING - clutch, with shaft

1шт.

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - third, order individual components, Includes: Ref. 17 - 24

1шт.

17

E114380

RING, SNAP

RING - snap, backing plate

1шт.

18

E114381

PLATE

GEAR - backing plate, clutch disc

1шт.

19

N7217

DISC,92.66mm ID x 133.6mm OD x 2.41mm Thk

- clutch, friction, inner

6шт.

20

E114383

CLUTCH DISC

DISC - clutch, metal, outer

6шт.

21

E114392

PISTON

- clutch

1шт.

22

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING - piston, outer clutch, Includes: Ref. 23

1шт.

23

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

- piston, inner clutch

1шт.

24

E114393

CLUTCH

HOUSING - clutch, with shaft

1шт.

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - reverse and second, order individual components, Includes: Ref. 25 - 34A

1шт.

25

E114380

RING, SNAP

RING - snap, backing plate

2шт.

26

E114381

PLATE

GEAR - backing plate, clutch disc

2шт.

27

N7217

DISC,92.66mm ID x 133.6mm OD x 2.41mm Thk

- clutch, friction, inner

8шт.

28

E114383

CLUTCH DISC

DISC - clutch, metal, outer

14шт.

29

E114384

PISTON

- clutch

1шт.

30

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING - piston, outer clutch

2шт.

31

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

- piston, inner clutch

2шт.

32

N13638

DRUM

HOUSING - clutch, with shaft

1шт.

33

E114392

PISTON

- clutch

1шт.

34

N7219

DISC,92.66mm ID x 133.6mm OD x 2.41mm Thk

- clutch, friction, inner, used with S614965 transmission assembly (Replaces N7217)

6шт.

34a

N7217

DISC,92.66mm ID x 133.6mm OD x 2.41mm Thk

- clutch, friction, inner, used with S619326 transmission assembly (Replaces N7212)

6шт.
