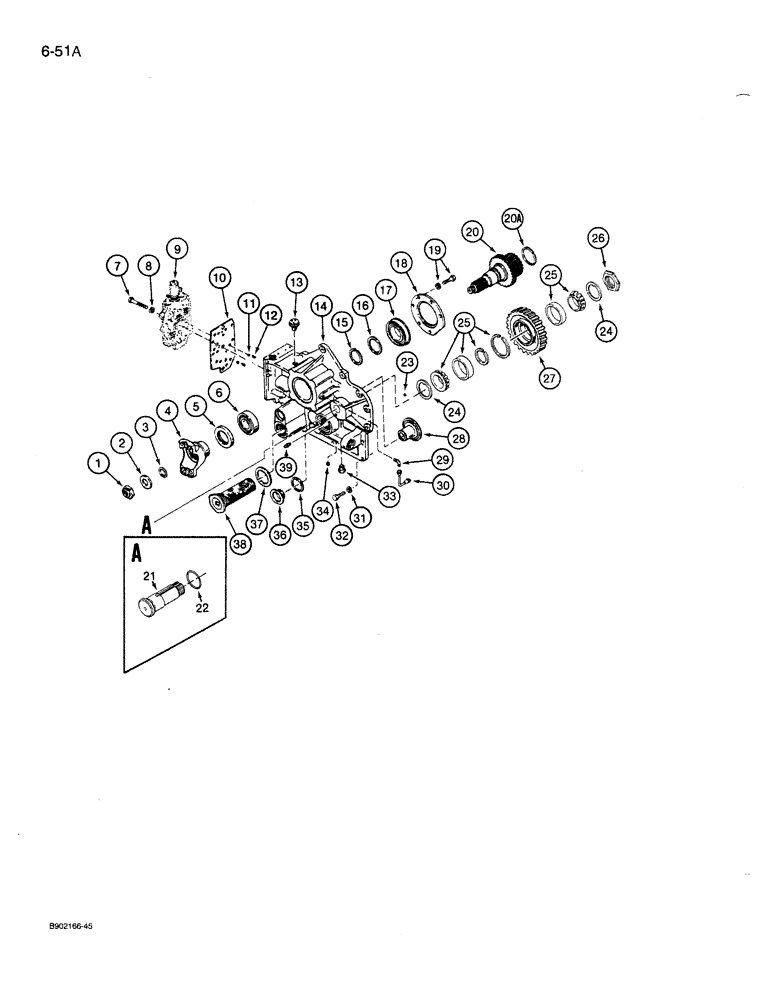

Запчасти Case 1085B (6-051A) - TRANSMISSION, INPUT SHAFT, FRONT COVER AND REVERSE IDLER (06) - POWER TRAIN

S619326

TRANSMISSION

ASSEMBLY - complete, includes parts listed on Fig. 6-044 through 6-056, Includes: Ref. 1 - 39

1шт.

1

A55863

LOCK NUT

- flange, special

1шт.

2

A17938

WASHER

- flange, special

1шт.

3

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- flange

1шт.

4

S117852

FLANGE

- input

1шт.

5

S89592

OIL SEAL,53.98mm ID x 90.17mm OD x 12.7mm Thk

- oil, input flange

1шт.

6

40035

SHAFT,1.5748" ID x 3.5433" OD x 0.9055"

- ball, input shaft

1шт.

7

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

9шт.

8

492-11038

LOCK WASHER,3/8"

9шт.

9

S239577

VALVE

- control, transmission, parts list page 6-056

1шт.

10

E114308

GASKET

- control valve

1шт.

11

211-210

BALL,3/8" Dia

- 3/8 inch, grade 25, chrome alloy steel

2шт.

12

E114309

SPRING

- detent

2шт.

13

N7134

BREATHER

- transmission and torque converter, see Fig. 6-040 for adapting parts

1шт.

14

S300099

COVER

- transmission, front, used with S619326 transmission assembly

1шт.

15

S89668

RING

- snap, rear bearing

1шт.

16

S117859

WASHER

- special, rear bearing

1шт.

17

S117860

BALL BEARING,2.3622" ID x 4.3307" OD x 0.8661"

BEARING - ball, rear, input shaft

1шт.

18

S117861

PLATE

- rear bearing retaining

1шт.

19

D58177

CAPTIVE WASHER SCREW,3/8" - 16 x 1"

BOLT - special, includes lockwasher

6шт.

20

S117862

SHAFT ASSY.

SHAFT AND HUB - transmission input, Includes: Ref. 20A

1шт.

20a

N13129

RING

- retaining

1шт.

21

D142275

SHAFT

- reverse idler

1шт.

22

360610R1

O-RING,1.609" ID x 0.139" Width

- idler shaft

1шт.

23

211-208

BALL,5/16" Dia

- 5/16 inch, grade 25, chrome alloy steel

1шт.

24

D142277

PLATE ASSY.

PLATE - thrust, reverse idler gear

2шт.

25

N7190

BEARING ASSY,45.24mm ID x 77.81mm OD x 44.67mm W

BEARING ASSEMBLY - reverse idler gear, matched set, parts not serviced separately

1шт.

26

D142278

BEARING LOCK NUT

NUT - bearing retaining plate

1шт.

27

N7155

GEAR

- reverse and second shaft

1шт.

28

E114312

SLEEVE

- front cover

1шт.

29

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree

1шт.

30

S300100

TUBE,0.252" OD x 3.74, 2.11" L

- lubrication

1шт.

31

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

16шт.

32

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

16шт.

33

214389

PLUG,3/4" - 16 ORB

Front cover Hex Hd, 3/4"-16 ORB

1шт.

34

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8" NPT

1шт.

35

L30039

GASKET,46.83mm ID x 58.74mm OD x 3.17mm Thk

- front cover

1шт.

36

L30038

PLUG

- special, front cover

1шт.

37

L30039

GASKET,46.83mm ID x 58.74mm OD x 3.17mm Thk

- suction screen

1шт.

38

S117867

SCREEN

- suction

1шт.

39

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch PT, front cover to lubrication tube

1шт.
