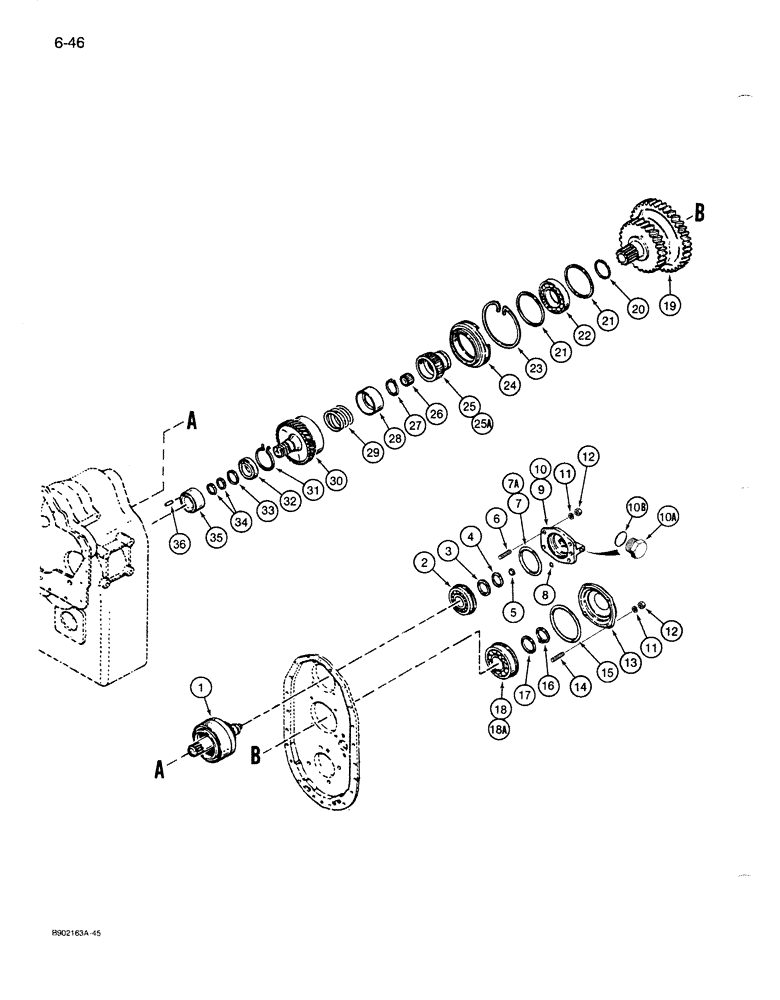

Запчасти Case 1085B (6-046) - TRANSMISSION, LOW SPEED CLUTCH, THIRD SPEED CLUTCH, GEARS, SHAFTS, AND BEARINGS (06) - POWER TRAIN

S614965

TRANSMISSION

ASSEMBLY - complete, used on 1085B, 1086B, includes parts listed on Fig. 6-044 through 6-056, Includes: Ref. 1 - 36, Serial Range: -JAK0031901

1шт.

S614965

TRANSMISSION

ASSEMBLY - complete, used on 1085B, 1086B, includes parts listed on Fig. 6-044 through 6-056, Includes: Ref. 1 - 36, Serial Range: -JAK0032301

1шт.

S619326

TRANSMISSION

ASSEMBLY - complete, used on 1085B, 1086B, includes parts listed on Fig. 6-044 through 6-056, Includes: Ref. 1 - 36, Start Serial: JAK0031901

1шт.

S619326

TRANSMISSION

ASSEMBLY - complete, used on 1085B, 1086B, includes parts listed on Fig. 6-044 through 6-056, Includes: Ref. 1 - 36, Start Serial: JAK0032301

1шт.

1

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - low speed, parts list Fig. 6-054

1шт.

2

N7276

BALL BEARING,50mm ID x 110mm OD x 27mm W

BEARING - ball, low speed shaft

1шт.

3

E114268

BEARING WASHER

WASHER - special, bearing support

1шт.

4

E114334

CLIP

RING - retaining, bearing

1шт.

5

N7260

RING

- piston, low shaft

1шт.

6

N7209

BEARING CAP

STUD - bearing cap

4шт.

7

39738

O-RING,4.609" ID x 0.139" Width

- bearing cap, used with S614965 transmission assembly

1шт.

7a

N8134

O-RING

- bearing cap, used with S619326 transmission assembly

1шт.

8

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- bearing cap, small

1шт.

9

E114362

CYLINDER END CAP

CAP - low shaft bearing, used with S614965 transmission assembly no longer available, order D142544 cap assembly

1шт.

10

D142544

COVER ASSY

CAP - low shaft bearing, used with S619326 transmission assembly, Includes: Ref. 10A -10B

1шт.

10a

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Cap, Includes Ref. 10B Hex Hd, 3/8"-24 ORB

1шт.

10b

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

11

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

12

25-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

8шт.

13

E114365

BEARING CAP

CAP - idler shaft bearing

1шт.

14

N7209

BEARING CAP

STUD - bearing cap

4шт.

15

A27384

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

- bearing cap

1шт.

16

E114367

CLIP

RING - retaining, bearing

1шт.

17

E114368

WASHER, THRUST

WASHER - special, bearing support

1шт.

18

E114369

BEARING

- ball, idler shaft, used with S614965 transmission assembly

1шт.

18a

S300101

BALL BEARING,55.001 mm ID x 120 mm OD x 29 mm

BEARING - ball, idler shaft, used with S619326 transmission assembly

1шт.

19

S117886

GEAR SHAFT

SHAFT AND GEAR - idler

1шт.

20

E114345

RING

- retaining, bearing

1шт.

21

E114346

O-RING

RING - bearing locating

2шт.

22

E114347

BEARING

- ball, third clutch disc hub

1шт.

23

E114349

RING, SNAP

RING - snap, bearing carrier

1шт.

24

E114350

BEARING CARRIER

CARRIER - bearing

1шт.

25

E114351

HUB

- third clutch, used with S614965 transmission assembly

1шт.

25a

N8418

GEAR WHEEL

HUB - third clutch, used with S619326 transmission assembly

1шт.

26

N7216

NEEDLE BEARING,1.125" ID x 1.5012" OD x 1"

BEARING - roller, pilot, third clutch shaft

1шт.

27

E114328

RING, SNAP

RING - snap, spring

1шт.

28

E114332

RETAINER

- spring

1шт.

29

E114331

SPRING

- piston return

1шт.

30

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - third, parts list Fig. 6-054

1шт.

31

E114352

RING, SNAP

RING - snap, bearing

1шт.

32

S89657

BEARING

- third clutch shaft

1шт.

33

100-11196

SNAP RING,#196, Ext

Ring, Snap, , bearing, CLIP - shutter control, radiator #196, Ext

1шт.

34

A17925

SPRING

RING - piston, third clutch shaft

2шт.

35

E114353

BEARING, ROLLER

RACE - bearing

1шт.

36

E114354

AXLE PIN

PIN - roll, race

1шт.
