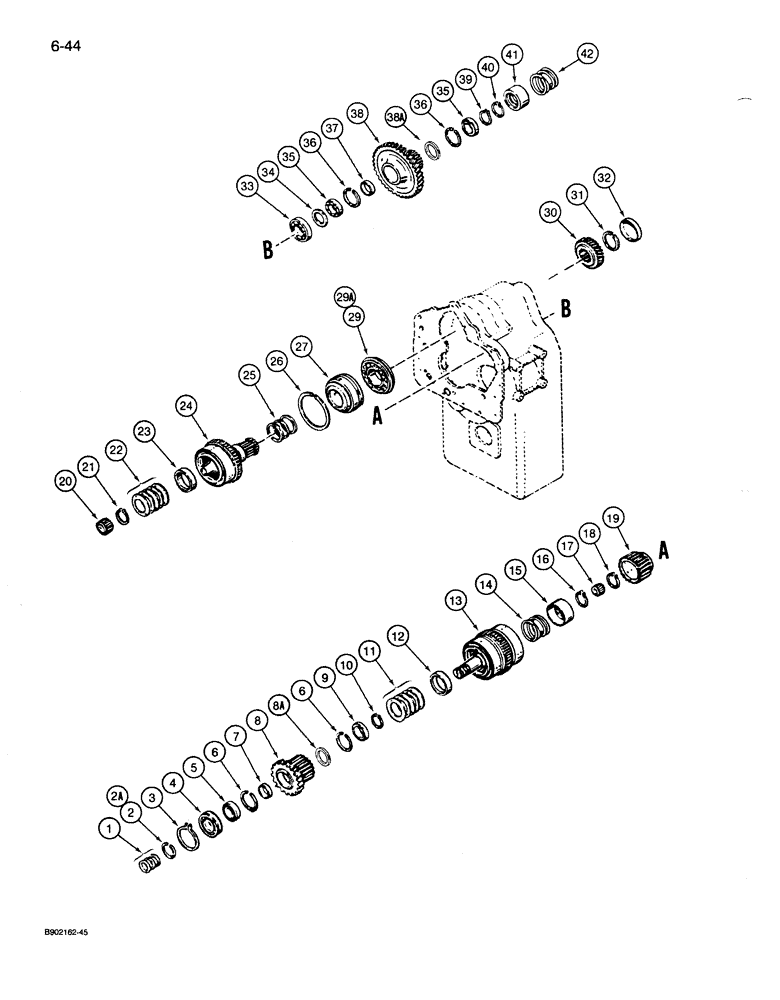

Запчасти Case 1085B (6-044) - TRANS., REV. & SECOND SPEED CLUTCH, FORWARD SPEED CLUTCH GEARS, SHAFTS & BEARINGS (06) - POWER TRAIN

S614965

TRANSMISSION

ASSEMBLY - complete, used on 1085B prior to P.I.N. JAK0031901, used on 1086B prior to P.I.N. JAK0032301, includes parts listed on Fig. 6-044 through 6-056., Includes: Ref. 1 - 42

1шт.

S619326

TRANSMISSION

ASSEMBLY - complete, used on 1085B P.I.N. JAK0031901 and after, used on 1086B P.I.N. JAK0032301 and after, includes parts listed on Fig. 6-044 through 6-056., Includes: Ref. 1 - 42

1шт.

1

A17925

SPRING

RING - piston, reverse and second shaft

3шт.

2

L33518

RING

- retaining, bearing, used with S614965 transmission assembly

1шт.

2a

L33512

RING

- retaining, bearing, used with S619326 transmission assembly

1шт.

3

S89652

RING

- snap, bearing

1шт.

4

S89654

BALL BEARING,40mm ID x 90mm OD x 23mm W

BEARING - ball, reverse and second shaft

1шт.

5

A28236

BALL BEARING,1.5743" ID x 2.6772" OD x 0.5906"

BEARING - ball, clutch driven gear, outer

1шт.

6

E114325

RING, SNAP

RING - retaining, bearing

2шт.

7

E114326

SPACER

- gear

1шт.

8

N7270

GEAR

AND HUB ASSEMBLY - reverse clutch, Includes: Ref. 8A

1шт.

8a

N13129

RING

- retaining, gear and hub assembly

1шт.

9

L33513

BALL BEARING,1.6748" ID x 2.6772" OD x 0.5906"

BEARING - ball, clutch driven gear, inner

1шт.

10

D87257

RING

- snap, spring

1шт.

11

D87249

SPRING

- Belleville, piston return

5шт.

12

N7215

SPACER

- spring

1шт.

13

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - reverse and second, parts list Fig. 6-054

1шт.

14

E114331

SPRING

- piston return

1шт.

15

E114332

RETAINER

- spring

1шт.

16

E114328

RING, SNAP

RING - snap, spring

1шт.

17

N7216

NEEDLE BEARING,1.125" ID x 1.5012" OD x 1"

BEARING - roller, reverse and second shaft

1шт.

18

E114334

CLIP

RING - retaining, second clutch disc hub

1шт.

19

N8749

GEAR

- second clutch disc hub

1шт.

20

E114339

NEEDLE BEARING,44.44mm ID x 54.02mm OD x 19.05mm W

BEARING - roller, forward shaft pilot

1шт.

21

D87257

RING

- snap, spring

1шт.

22

D87249

SPRING

- Belleville, piston return

5шт.

23

N7215

SPACER

- piston return spring

1шт.

24

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - forward, parts list Fig. 6-054

1шт.

25

A55824

SEAL

RING - piston, forward shaft

3шт.

26

E114355

RING

- retaining, piston ring sleeve

1шт.

27

E114356

BUSHING

SLEEVE - piston

1шт.

29

E114358

BEARING

- ball, forward shaft, used with S614965 transmission assembly

1шт.

29a

N9442

BALL BEARING

BEARING - ball,forward shaft, used with S619326 transmission assembly

1шт.

30

S117878

GEAR WHEEL

- foward shaft

1шт.

31

S117877

RING

- retaining gear

1шт.

32

E114336

PLUG

- forward shaft

1шт.

33

E114340

BALL BEARING

BEARING - ball, low speed clutch shaft

1шт.

34

E114341

SPACER

- bearing

1шт.

35

S89657

BEARING

- ball, low speed gear

2шт.

36

S89658

RING

- bearing locating

2шт.

37

N7213

SPACER

- low speed gear

1шт.

38

N7214

GEAR

- low speed, Includes: Ref. 38A

1шт.

38a

N13129

RING

- retaining, gear

1шт.

39

E114334

CLIP

RING - retaining, low gear bearing

1шт.

40

E114328

RING, SNAP

RING - snap, spring retainer

1шт.

41

E114332

RETAINER

- spring

1шт.

42

E114331

SPRING

- piston return

1шт.
