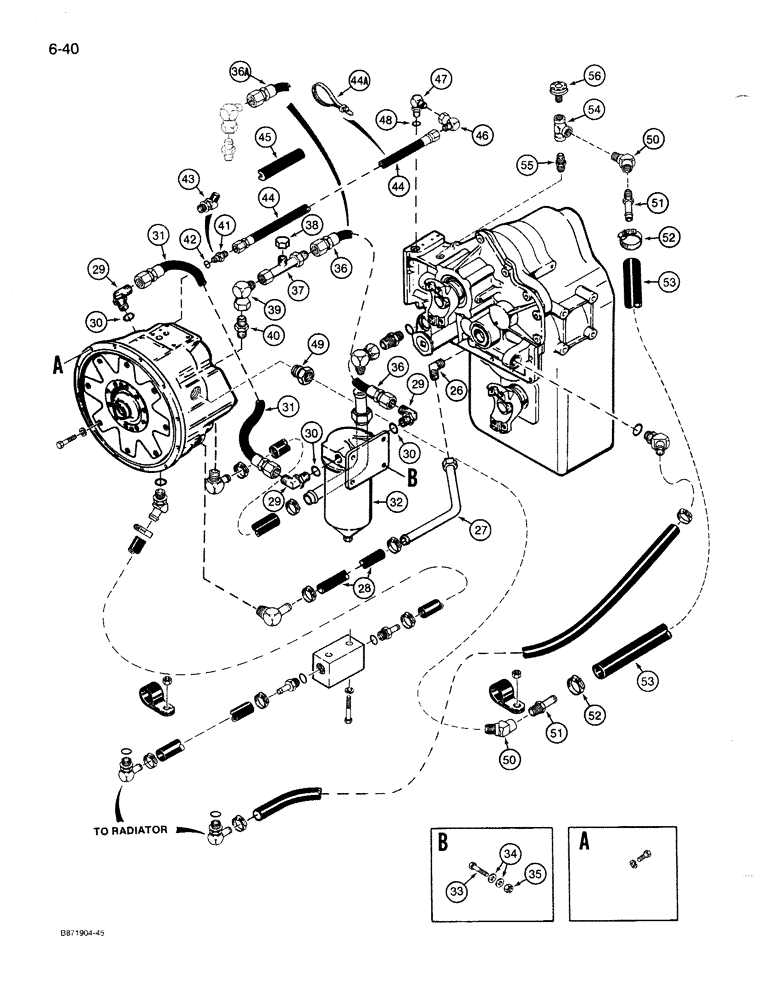

Запчасти Case 1085B (6-040) - TORQUE CONVERTER AND TRANSMISSION CIRCUIT (06) - POWER TRAIN

26

218-538

ELBOW,45 Degree, 1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF

- 45 degree, 1-5/16-12 flare x 1 inch PT

1шт.

27

S238558

TUBE,1" OD

- at transmission

1шт.

28

S120218

LARGE HOSE

HOSE - torque converter to transmission, 26 inch (660 mm) long, cut from S118383 bulk hose, see below

1шт.

29

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss

3шт.

30

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

31

D42969

HOSE

- 36 inch (914 mm) long, torque, Serial Range: converter-filter

1шт.

32

L47739

FILTER

ASSEMBLY - torque converter, parts list Fig. 6-042

1шт.

33

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

4шт.

34

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

8шт.

35

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

4шт.

36

S400833

HOSE

- 18 inch (457 mm) long, torque converter to filter, for replacement use item number 36A

1шт.

36a

R25834

HOSE

- 25 inch (635 mm) long, torque, Serial Range: converter-filter

1шт.

37

S215462

TUBE ASSY.,0.75" OD x 6" L

TUBE - three way, no longer available, use longer hose, item 36A, to eliminate tube if replacement is required

1шт.

38

218-755

CAP,37 Degree, 3/4"-16

Used with item 37 only 37º, 3/4"-16

1шт.

39

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel flare

1шт.

40

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, 1-1/16-12 flare x 3/4 inch PT

1шт.

41

218-5031

HYD CONNECTOR,3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

1шт.

42

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

43

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 deg, 3/4-16 inch flare x swivel straight thread

1шт.

44

S11230

HOSE

- 28 inch (711 mm) long, torque, Serial Range: converter-transmission

1шт.

44a

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

45

S119447

EDGE - trim, 6 inch (152 mm) long, cut from S118402 bulk roll, see below

1шт.

46

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel flare

1шт.

47

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

1шт.

48

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

49

221-602

REDUCER,Hex, 1" x 3/8" NPT

- pipe, 1 male x 3/8 inch female

1шт.

50

217-1087

ELBOW,45 Degree, 3/8"-18 Female x 3/8"-18 Male

Street 45º, 3/8"-18 Female x 3/8"-18 Male

2шт.

51

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

- stem, straight, 5/8 hose ID x 3/8 inch PT

2шт.

52

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - adj, 9/16 - 1-1/16 inch dia

2шт.

53

S120601

HOSE - breather, torque converter, 50 inch (1270 mm) long, cut from S118576 bulk hose, see below

1шт.

54

217-1162

TEE,3/8"-18 Female

- pipe, 3/8 inch female

1шт.

55

217-1081

HYD CONNECTOR,3/8" - 18 NPTF

NIPPLE - hex, 3/8 PT x 1-7/16 inch

1шт.

56

N7134

BREATHER

- transmission and torque converter, component of transmission, see Fig. 6-050, item 13

1шт.

S118383

HOSE,1.00" ID x 192.00", SAE 100R3

1.00" ID x 192.00" Bulk, SAE 100R3

1шт.

S118576

HOSE,0.62" ID BULK

0.625" ID x 300.00" Bulk

1шт.

S118402

RUBBER JOINT

TRIM - edge, bulk roll, 50 ft (15.24 m) long, continued from Fig. 6-38

1шт.
