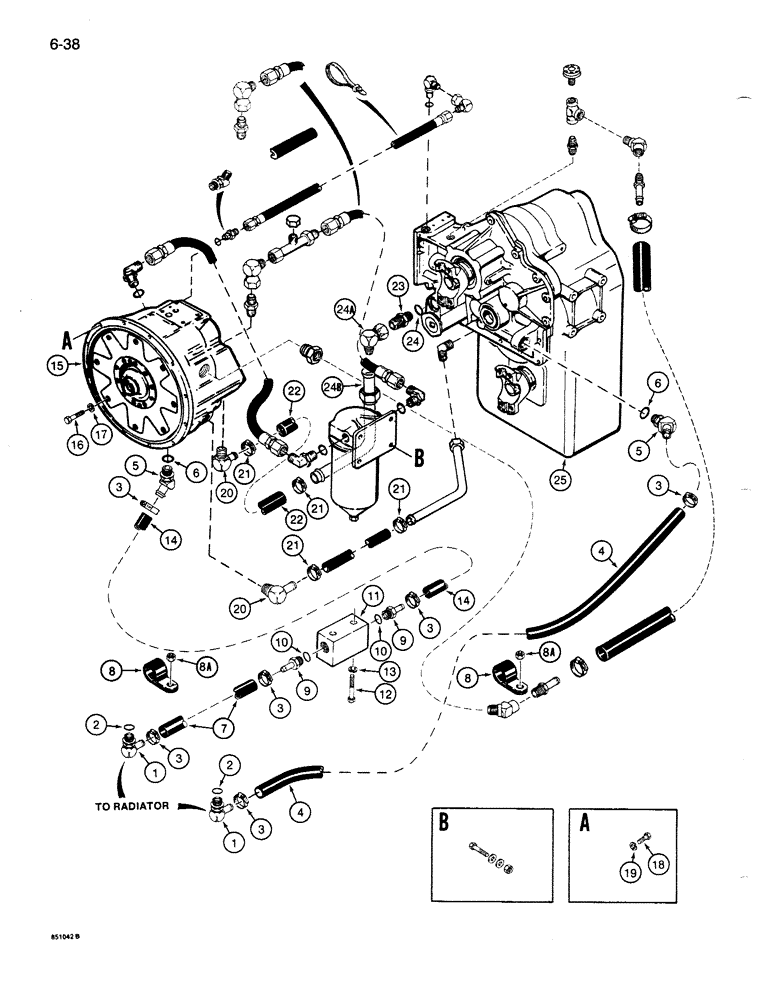

Запчасти Case 1085B (6-038) - TORQUE CONVERTER AND TRANSMISSION CIRCUIT (06) - POWER TRAIN

1

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

ELBOW - 90 deg, 3/4 stem end x 7/8-14 inch adj O-ring boss

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

3

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

6шт.

4

S120622

HYDRAULIC HOSE,0.75" ID x 112.00", SAE 100R3 Class H

- Radiator to transmission, Cut from S118382 bulk hose, See below 0.75" ID x 112.00", SAE 100R3 Class H

1шт.

5

217-315

FITTING,45 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 45 deg, 3/4 stem end x 1-1/16-12 inch adj O-ring

2шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

7

S120250

LARGE HOSE

HOSE - radiator to manifold, 50 inch (1270 mm) long, cut from S118382 bulk hose, see below

1шт.

8

S15544

CLAMP,1 5/16", Insul, 3/8" Bolt

- hose

5шт.

8a

131-52

NUT,3/8"-16, GC

NUT - light hex, self-locking, 3/8 inch NC

5шт.

9

217-177

FITTING,3/4" Hose Barb x 1-1/16" - 12 Male ORB

- stem, str, 3/4 hose ID x 1-1/16-12 inch O-ring

2шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

11

S516235

BLOCK

- manifold

1шт.

12

113-490

BOLT,Hex, 1/2" - 13 x 7/8", Gr 8, Full Thd

1шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

14

S119451

HYDRAULIC HOSE,0.75" ID x 20.00", SAE 100R3 Class H

- Manifold block to torque converter, Cut from S118382 bulk hose, See below 0.75" ID x 20.00", SAE 100R3 Class H

1шт.

15

S618297

CONVERTER

TORQUE CONVERTER ASSEMBLY - parts list Fig. 6-032 through 6-036

1шт.

16

414-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- hex, 3/8 NF x 1-3/4 inch

8шт.

17

492-11038

LOCK WASHER,3/8"

8шт.

18

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

12шт.

19

892-11010

LOCK WASHER,M10

12шт.

20

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

- 90 degree, 1 inch stem end x PT

2шт.

21

214-378

CLAMP,1.40"-1.56", T-Bolt

- hose, No. 14 heavy duty

4шт.

22

L48894

HOSE

- torque converter to transmission, 17 inch (432 mm) long

1шт.

23

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss

1шт.

24

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

24a

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, 1-5/16-12 inch flare x swivel flare

1шт.

24b

S233408

TUBE ASSY.,1" OD x 6.31, 3.31" L

TUBE - torque converter to transmission

1шт.

25

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figures 6-44 through 6-56 for correct transmission

1шт.

S118382

HOSE,0.75" ID x 240.00", SAE 100R4

0.75" ID x 240.00" Bulk, SAE 100R4 - Continued on Fig. 6-40

1шт.
