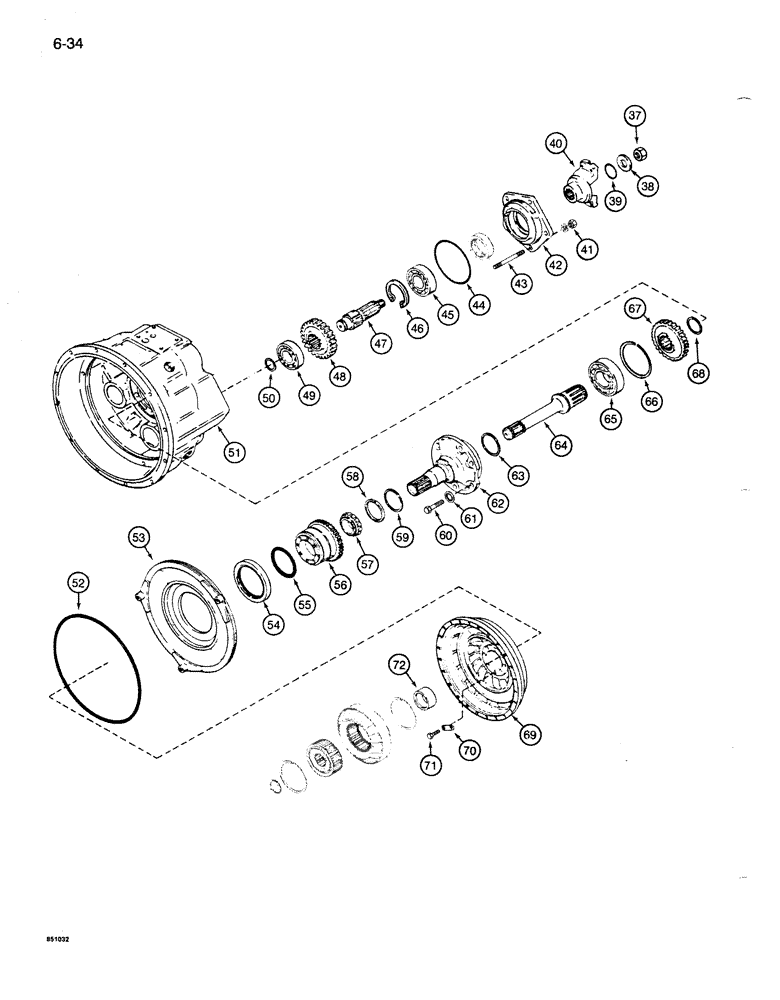

Запчасти Case 1085B (6-034) - TORQUE CONVERTER, HOUSING, SHAFTS, GEARS, AND BEARINGS (06) - POWER TRAIN

S618297

CONVERTER

TORQUE CONVERTER - complete, includes parts on Fig. 6-032 through 6-036, Includes: Ref. 37 - 72, 1 - 36 on Fig. 6-32, 73 - 101 on Fig. 6-36

1шт.

37

A55863

LOCK NUT

- flange, special

1шт.

38

A17938

WASHER

- flange

1шт.

39

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- flange

1шт.

40

S117852

FLANGE

- output

1шт.

41

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

2шт.

42

S105583

FLANGE

RING - retaining

1шт.

43

A18008

STUD

- ring

2шт.

44

N6597

O-RING

- ring

1шт.

45

ST436

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

BEARING - ball, output shaft, rear

1шт.

46

D47486

SNAP RING

RING - snap, bearing retaining

1шт.

47

S89538

SHAFT

- output

1шт.

48

L33456

GEAR WHEEL

GEAR - output shaft

1шт.

49

S105779

BALL BEARING

BEARING - ball, output shaft, front

1шт.

50

S89771

SEAL

RING - retaining

1шт.

51

S217797

HOUSING

- torque converter

1шт.

51a

S89927

CAP

PLUG - freeze, located backside of housing, not shown

1шт.

52

S5871

O-RING,11.984" ID x 12.262" OD x 0.139"

- oil baffle

1шт.

53

N6561

BAFFLE

- oil

1шт.

54

S117841

OIL SEAL

- oil baffle

1шт.

55

E114281

O-RING,3.63mm Thk x 92.89mm ID, 75 Duro

- impeller hub

1шт.

56

S117842

GEAR

- impeller hub

1шт.

57

D77034

BEARING, ROLLER, CYL,49.99mm ID x 72.1mm OD x 16mm W

BEARING - roller, impeller hub

1шт.

58

D87244

RING,Locking, 67.31mm ID x 72.14mm OD x 3.05mm Thk

- sealing

1шт.

59

D87245

RING

SPRING - expander

1шт.

60

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

6шт.

61

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

6шт.

62

S117843

SUPPORT

- reaction member

1шт.

63

A18012

RING,Locking, 54.74mm ID x 60.33mm OD x 3.15mm Thk

- sealing, turbine shaft

1шт.

64

S117844

SHAFT

- turbine

1шт.

65

N7486

BALL BEARING,1.9685" ID x 4.3307" OD x 1.063"

BEARING - ball, turbine shaft

1шт.

66

A17997

RING

- bearing retainer

1шт.

67

S89540

PINION

GEAR - turbine shaft

1шт.

68

A27089

SNAP RING,2.36mm Thk, Ext

RING - retainer

1шт.

69

S117845

IMPELLER

- torque converter

1шт.

70

E114283

LOCK

TAB - lock, impeller bolts

4шт.

71

28-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 8

- hex, 3/8 NF x 3/4 inch, grade 8

8шт.

72

N13028

SPACER

- freewheel

1шт.
