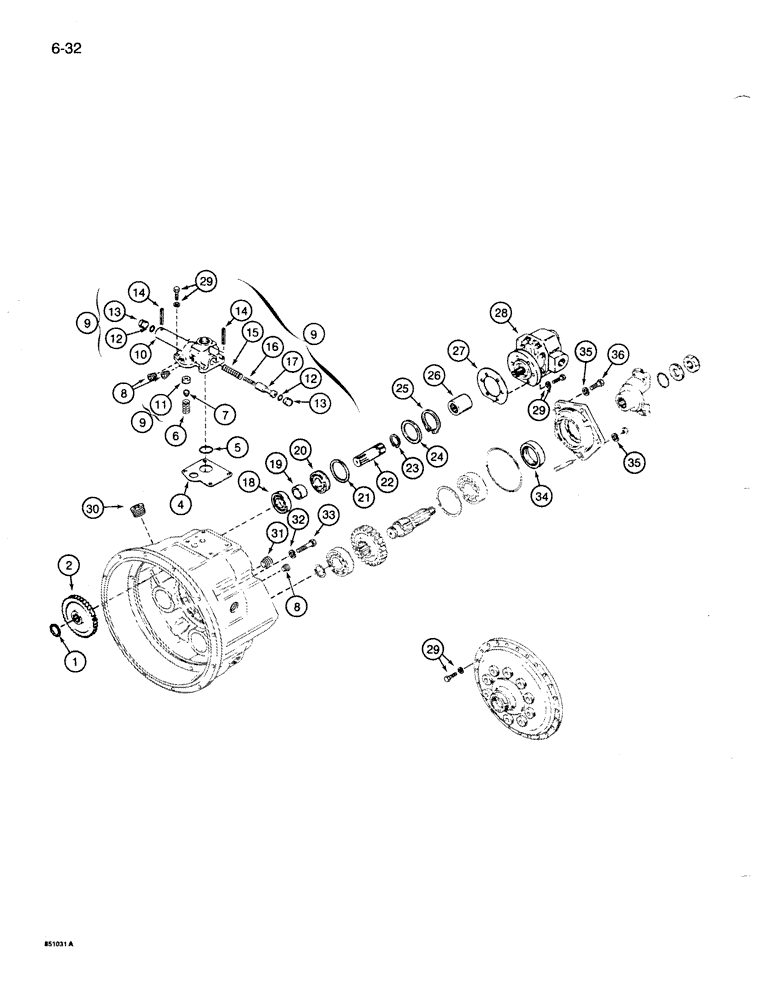

Запчасти Case 1085B (6-032) - TORQUE CONVERTER, VALVE AND CHARGING PUMP (06) - POWER TRAIN

S618297

CONVERTER

TORQUE CONVERTER - complete, includes parts on Fig. 6-032 through 6-036, Includes: Ref. 1 - 36, 37 - 72 on Fig. 6-34, 73 - 101 on Fig. 6-36

1шт.

1

A50078

SNAP RING,#118, 1.121", Ext

RING - snap, gear

3шт.

2

A18027

GEAR

- pump drive

3шт.

4

A18006

GASKET

- valve

1шт.

5

N6595

O-RING

-, Serial Range: valve-housing

1шт.

6

A18004

SPRING

- valve safety

1шт.

7

A18003

PLUNGER

- valve safety

1шт.

8

221-850

PLUG,Hex Soc, 1/16"-27

- hex socket, 1/16 inch PT

3шт.

9

A18005

VALVE

ASSEMBLY - pressure regulating, Includes: Ref. 10 - 17

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

11

A18002

SEAT

- plunger

1шт.

12

E114251

O-RING

- stop

2шт.

13

A18038

STOP

- valve

2шт.

14

138-304

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

2шт.

15

A18040

VALVE SPRING

SPRING -valve, large

1шт.

16

A18041

VALVE SPRING

SPRING - valve, small

1шт.

17

A55873

SPOOL

PISTON - valve

1шт.

18

S89534

CYLINDER END CAP

BEARING - ball, front

3шт.

19

S89535

SPACER

- pump shaft

3шт.

20

A17998

BALL BEARING,1.1807" ID x 2.4409" OD x 0.6299"

BEARING - ball, rear

3шт.

21

A18023

RING

- bearing locating

3шт.

22

D87167

SHAFT

- pump drive

3шт.

23

A18024

RING, SNAP

RING - bearing retaining

3шт.

24

A18022

WASHER

- retaining

3шт.

25

D23649

SNAP RING,2.625", Int, #262

Ring Snap, 2.625", Int, #262

3шт.

26

A18020

ADAPTER

SLEEVE - pump drive

1шт.

27

S110783

GASKET

- pump

1шт.

28

S217796

PUMP

- charging

1шт.

(No Seal Kit Available)

1шт.

29

D58177

CAPTIVE WASHER SCREW,3/8" - 16 x 1"

BOLT - includes lockwasher

31шт.

30

221-846

PLUG,Hex Soc, 1"-11 1/2

- hex socket, 1 inch PT

3шт.

31

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket, 1/2 inch PT, temperature port

1шт.

32

492-11038

LOCK WASHER,3/8"

3шт.

33

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch, Oil baffle

3шт.

34

L30014

OIL SEAL

- oil

1шт.

35

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

5шт.

36

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

3шт.
