Запчасти Case 1085B (6-030) - REAR DRIVE AXLE, DIFFERENTIAL WITHOUT NO-SPIN (06) - POWER TRAIN

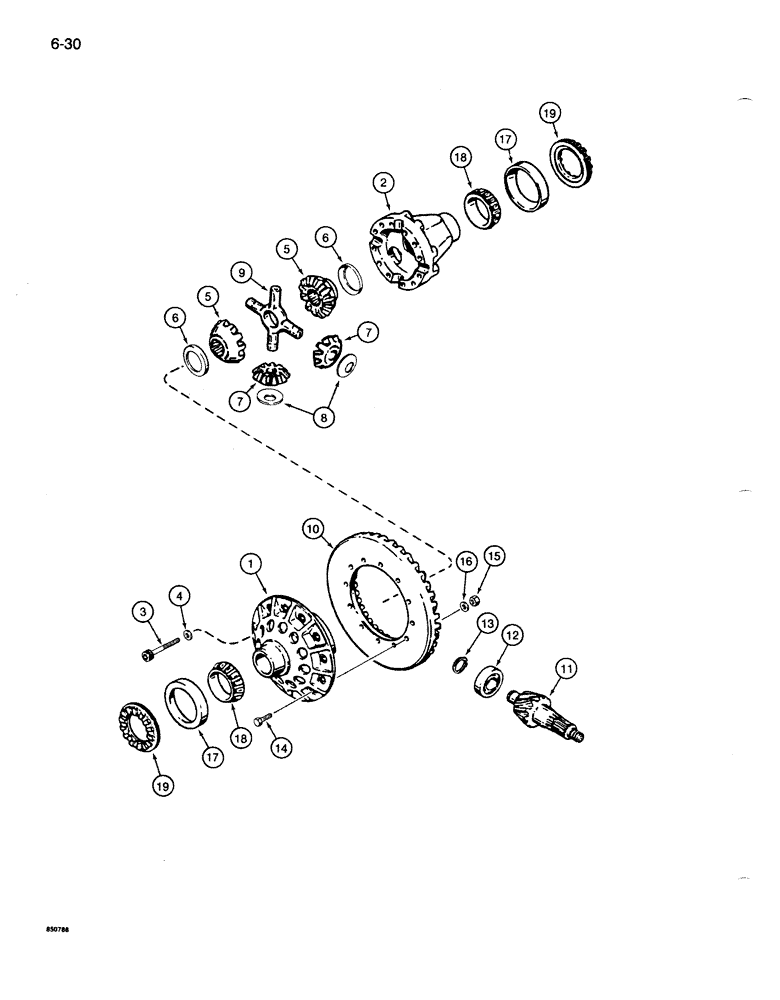

Схема запчастей Case 1085B - (6-030) - REAR DRIVE AXLE, DIFFERENTIAL WITHOUT NO-SPIN (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

S514427

AXLE

ASSEMBLY - rear drive, without No-Spin, complete, includes parts listed on Fig. 6-026 through 6-030, see Fig. 6-002 for axle identification, Includes: Ref. 1 - 19

1шт.

S238136

CARRIER

ASSEMBLY - differential, Includes: Ref. 1 - 19

1шт.

S113978

CASE

CAGE ASSEMBLY - differential, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - differential

1шт.

2

NSS

NOT SOLD SEPARAT

CAGE - differential

1шт.

3

26-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

- hex, 1/2 NC x 3-1/4 inch

16шт.

4

D47366

WASHER

- flat

16шт.

5

S113907

GEAR

- side, differential

2шт.

6

A25142

WASHER

- thrust, side gear

2шт.

7

A25131

PINION

GEAR - pinion, differential

4шт.

8

A25140

WASHER

- thrust, pinion gear

4шт.

9

A25143

SPIDER ASSY.

SHAFT - cross

1шт.

S114874

GEAR

SET - ring and pinion, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

GEAR - pinion

1шт.

11

NSS

NOT SOLD SEPARAT

SHAFT - pinion gear

1шт.

12

A47666

BEARING

- tapered roller

1шт.

13

A15442

LOCK

RING - lock

1шт.

14

S113908

BOLT

BOLT - cover to pinion gear

12шт.

15

131-1236

LOCK NUT,5/8"-18, GC

NUT - hex, self-locking, 5/8 inch NF

12шт.

16

L30737

WASHER

- flat

12шт.

17

L33303

BEARING CUP

CUP - tapered roller bearing

2шт.

18

L33297

ROLLER BEARING

BEARING - tapered roller

2шт.

19

S113916

NUT

RING - bearing adjustment

2шт.

Выбрано товаров: 23
