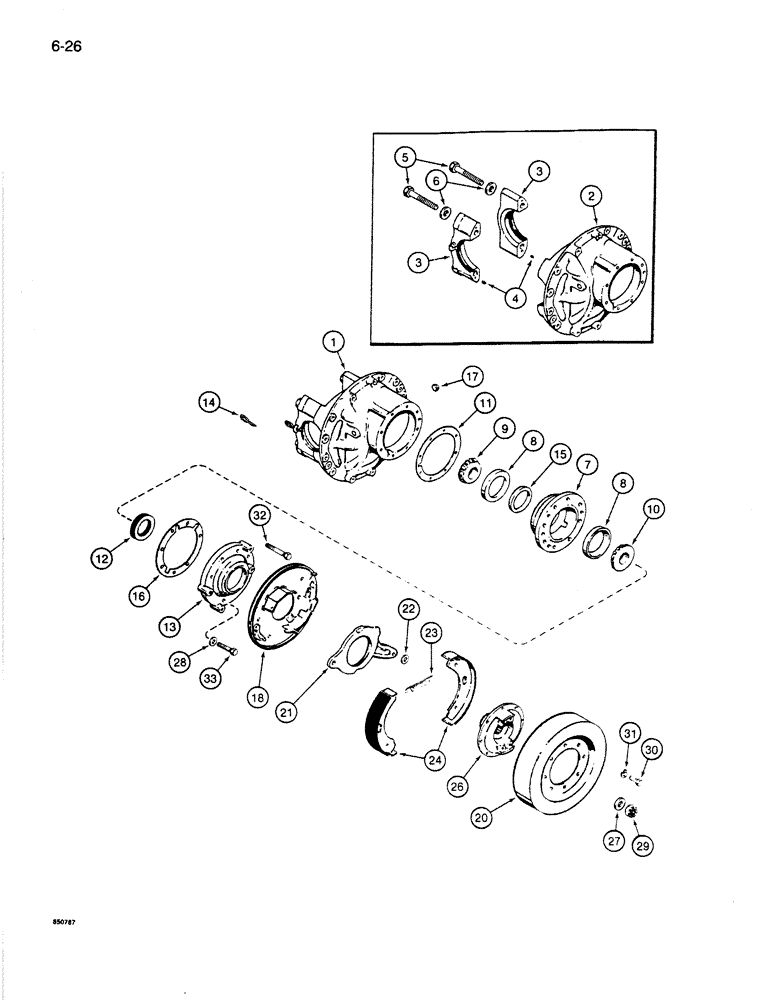

Запчасти Case 1085B (6-026) - REAR DRIVE AXLE, DIFFERENTIAL WITHOUT NO-SPIN (06) - POWER TRAIN

S514427

AXLE

ASSEMBLY - rear drive, without No-Spin, complete, includes parts listed on Fig. 6-026 through 6-030, see Fig. 6-002 for axle identification, Includes: Ref. 1 - 33

1шт.

S238136

CARRIER

ASSEMBLY - differential, Includes: Ref. 1 - 33

1шт.

1

S238137

CARRIER

AND CAP ASSEMBLY - differential, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

3

NSS

NOT SOLD SEPARAT

CAP - bearing

1шт.

4

A15443

DOWEL

PIN - adjustment

2шт.

5

L34037

BOLT

- bearing cap

4шт.

6

A16783

WASHER

- bearing cap bolt

4шт.

S236216

CAGE

ASSEMBLY - pinion shaft, Includes: Ref. 7 and 8

1шт.

7

S114872

CAGE

- pinion shaft

1шт.

8

1968297C1

BEARING CUP,47.62 mm ID x 111.15 mm OD x 30.36 mm

CUP - tapered roller bearing, inner and outer

2шт.

9

L30032

ROLLER BEARING

- tapered roller, inner

1шт.

10

L35488

ROLLER BEARING,47.638 mm ID x 30.365 mm

- tapered roller, outer

1шт.

11

S116395

SHIM,.003" Thk

(.0762 mm) .003" Thk

1шт.

11

S116396

SHIM,.005" Thk

1шт.

11

S116397

SHIM,.010" Thk

1шт.

S116394

COVER

ASSEMBLY - carrier, Includes: Ref. 12 and 13

1шт.

12

L34024

SEAL,60.33mm ID x 85.27mm OD x 11.53mm Thk

- oil

1шт.

13

NSS

NOT SOLD SEPARAT

COVER - carrier

1шт.

14

L30029

PIN

- cotter, cap

2шт.

15

D82755

SHIM,.234" Thk

Spacer - bearing (5.944 mm) .234" Thk

1шт.

15

D82756

SHIM,.235" Thk

Spacer - bearing (5.969 mm) .235" Thk

1шт.

15

D82757

SHIM,.236" Thk

Spacer - bearing (5.994 mm) .236" Thk

1шт.

15

D82758

SHIM,.237" Thk

Spacer - bearing (6.020 mm) .237" Thk

1шт.

15

D82759

SHIM,.238" Thk

Spacer - bearing (6.045 mm) .238" Thk

1шт.

15

D82760

SHIM,.239" Thk

Spacer - bearing (6.071 mm) .239" Thk

1шт.

15

D82761

SHIM,.240" Thk

Spacer - bearing (6.096 mm) .240" Thk

1шт.

15

N8611

SPACER

- bearing, .242 inch (6.147 mm) thick

1шт.

15

N8612

SPACER

- bearing, .244 inch (6.198 mm) thick

1шт.

15

N8613

SPACER

- bearing, .246 inch (6.248 mm) thick

1шт.

15

D82762

SHIM,.247" Thk

Spacer - bearing (6.274 mm) .247" Thk

1шт.

15

D82763

SHIM,.254" Thk

Spacer - bearing (6.452 mm) .254" Thk

1шт.

15

D82764

SHIM,.261" Thk

Spacer - bearing (6.629 mm) .261" Thk

1шт.

15

D82765

SEAL

SPACER - bearing, .268 inch (6.807 mm) thick

1шт.

15

D82766

SHIM,.275" Thk

Spacer - bearing (6.985 mm) .275" Thk

1шт.

15

D82767

SHIM,.282" Thk

Spacer - bearing (7.163 mm) .282" Thk

1шт.

15

D82768

SHIM,.289" Thk

Spacer - bearing (7.341 mm) .289" Thk

1шт.

15

D82769

SHIM,.296" Thk

Spacer - bearing (7.518 mm) .296" Thk

1шт.

16

NSS

NOT SOLD SEPARAT

GASKET - cover, use 345-84 sealant, item 34

1шт.

17

221-845

PLUG,Hex Soc, 3/4"-14

- hex socket, 3/4 inch PT, oil filler

1шт.

18

N13116

PLATE ASSY.

PLATE - backing

1шт.

20

A25271

BRAKE DRUM

DRUM - brake

1шт.

21

A12779

LEVER

- actuator, brake

1шт.

22

A16642

WASHER

ROLLER - lever

1шт.

23

A12778

SPRING

- brake shoe

2шт.

24

A12780

BRAKE SHOE

SHOE AND LINING - parking brake

2шт.

26

S113917

YOKE

FLANGE - shaft

1шт.

27

S114895

WASHER

- flat

1шт.

28

L35233

WASHER

- special

6шт.

29

S113912

LOCK NUT

- bevel pinion

1шт.

30

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- hex, 3/8 NC x 1 inch, grade 8

8шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

32

26-940

BOLT - hex, 9/16 NC x 2-1/2 inch, grade 8

6шт.

33

26-928

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 8

- hex, 9/16 NC x 1-3/4 inch, grade 8

2шт.

34

345-84

ADHESIVE

SEALANT - 3 oz (89 ml) of sealant in a tube, not shown

1шт.

A12843

PACKAGE

KIT - lining, includes linings and rivets for one wheel

2шт.
