Запчасти Case 1085B (6-024) - REAR DRIVE AXLE, NO-SPIN DIFFERENTIAL (06) - POWER TRAIN

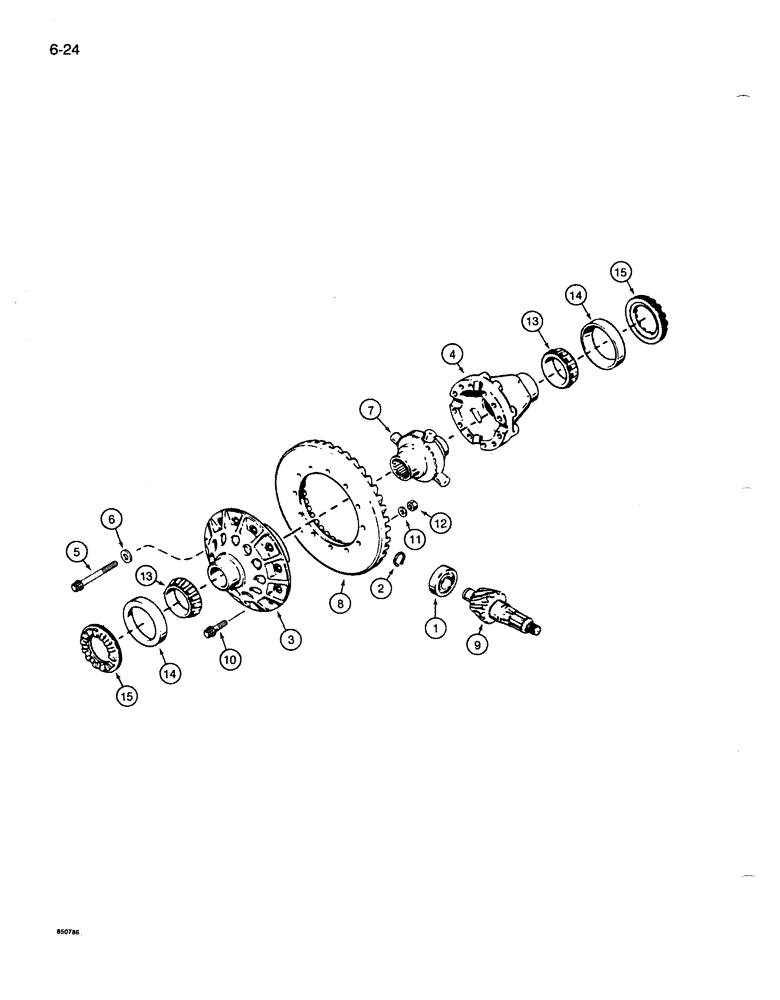

Схема запчастей Case 1085B - (6-024) - REAR DRIVE AXLE, NO-SPIN DIFFERENTIAL (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

S514426

CENTER AXLE

AXLE ASSEMBLY - rear drive, with No-Spin, complete, includes parts listed on Fig. 6-020 through 6-024, see Fig. 6-002 for axle identification, Includes: Ref. 1 - 15

1шт.

S238144

DIFFERENTIAL

CARRIER ASSEMBLY - differential, Includes: Ref. 1 - 15

1шт.

1

D82735

ROLLER BEARING,35mm ID x 72mm OD x 20.64mm W

BEARING - tapered roller

1шт.

2

A15442

LOCK

RING - lock

1шт.

S113978

CASE

CAGE ASSEMBLY - differential, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

CAGE - differential

1шт.

4

NSS

NOT SOLD SEPARAT

COVER - differential

1шт.

5

26-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

- hex, 1/2 NC x 3-1/4 inch, grade 8

16шт.

5

26-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

- hex, 1/2 NC x 3-1/4 inch, grade 8

16шт.

6

D47366

WASHER

- flat

16шт.

7

S236227

KIT

SHAFT - cross, no-spin

1шт.

S114874

GEAR

SET - ring and pinion, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

GEAR - pinion

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - pinion, gear

1шт.

10

S113908

BOLT

BOLT - cage

12шт.

11

L30737

WASHER

- flat

12шт.

12

131-1236

LOCK NUT,5/8"-18, GC

NUT - hex, self-locking, 5/8 inch NF

12шт.

13

L33297

ROLLER BEARING

BEARING - tapered roller

2шт.

14

L33303

BEARING CUP

CUP - bearing

2шт.

15

S113916

NUT

RING - bearing adjusting

2шт.

Выбрано товаров: 20
