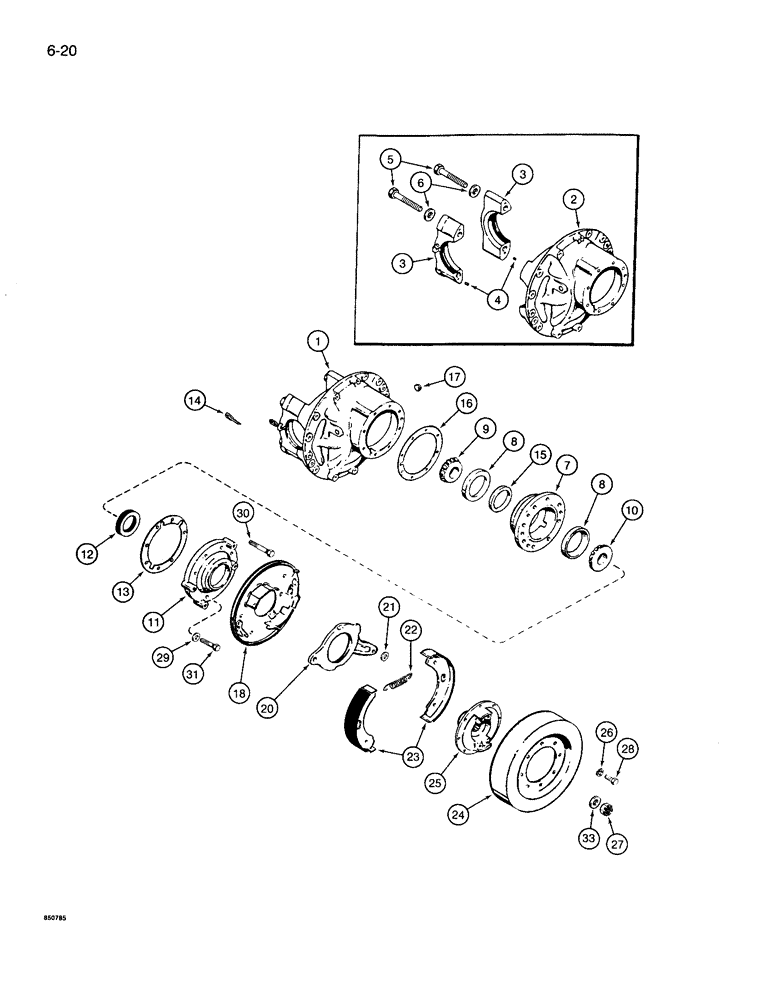

Запчасти Case 1085B (6-020) - REAR DRIVE AXLE, NO-SPIN DIFFERENTIAL (06) - POWER TRAIN

S514426

CENTER AXLE

AXLE ASSEMBLY - rear drive, with No-Spin, complete, includes parts listed on Fig. 6-020 through 6-024, see Fig. 6-002 for axle identification, Includes: Ref. 1 - 33

1шт.

S238144

DIFFERENTIAL

CARRIER ASSEMBLY - differential, Includes: Ref. 1 - 33

1шт.

1

S238137

CARRIER

AND CAP ASSEMBLY - differential, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

3

NSS

NOT SOLD SEPARAT

CAP - bearing

2шт.

4

A15443

DOWEL

PIN - adjustment

4шт.

5

L34037

BOLT

- bearing cap

4шт.

6

A16783

WASHER

- bearing cap bolt

4шт.

S236216

CAGE

ASSEMBLY - pinion shaft, not available, order components separately, Includes: Ref. 7 and 8

1шт.

7

S114872

CAGE

- pinion shaft

1шт.

8

1968297C1

BEARING CUP,47.62 mm ID x 111.15 mm OD x 30.36 mm

CUP - tapered roller bearing, inner and outer

2шт.

9

L30032

ROLLER BEARING

- tapered roller, inner

1шт.

10

L35488

ROLLER BEARING,47.638 mm ID x 30.365 mm

- tapered roller, outer

1шт.

S116394

COVER

ASSEMBLY - carrier, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

COVER - carrier

1шт.

12

L34024

SEAL,60.33mm ID x 85.27mm OD x 11.53mm Thk

- oil

1шт.

13

NSS

NOT SOLD SEPARAT

GASKET - cover, use 345-84 sealant, item 34

1шт.

14

L30029

PIN

- cotter, cap

2шт.

15

D82755

SHIM,.234" Thk

Spacer - bearing (5.944 mm) .234" Thk

1шт.

15

D82756

SHIM,.235" Thk

Spacer - bearing (5.969 mm) .235" Thk

1шт.

15

D82757

SHIM,.236" Thk

Spacer - bearing (5.994 mm) .236" Thk

1шт.

15

D82758

SHIM,.237" Thk

Spacer - bearing (6.020 mm) .237" Thk

1шт.

15

D82759

SHIM,.238" Thk

Spacer - bearing (6.045 mm) .238" Thk

1шт.

15

D82760

SHIM,.239" Thk

Spacer - bearing (6.071 mm) .239" Thk

1шт.

15

D82761

SHIM,.240" Thk

Spacer - bearing (6.096 mm) .240" Thk

1шт.

15

N8611

SPACER

- bearing, .242 inch (6.147 mm) thick

1шт.

15

N8612

SPACER

- bearing, .244 inch (6.198 mm) thick

1шт.

15

N8613

SPACER

- bearing, .246 inch (6.248 mm) thick

1шт.

15

D82762

SHIM,.247" Thk

Spacer - bearing (6.274 mm) .247" Thk

1шт.

15

D82763

SHIM,.254" Thk

Spacer - bearing (6.452 mm) .254" Thk

1шт.

15

D82764

SHIM,.261" Thk

Spacer - bearing (6.629 mm) .261" Thk

1шт.

15

D82765

SEAL

SPACER - bearing, .268 inch (6.807 mm) thick

1шт.

15

D82766

SHIM,.275" Thk

Spacer - bearing (6.985 mm) .275" Thk

1шт.

15

D82767

SHIM,.282" Thk

Spacer - bearing (7.163 mm) .282" Thk

1шт.

15

D82768

SHIM,.289" Thk

Spacer - bearing (7.341 mm) .289" Thk

1шт.

15

D82769

SHIM,.296" Thk

Spacer - bearing (7.518 mm) .296" Thk

1шт.

16

S116395

SHIM,.003" Thk

(.0762 mm) .003" Thk

1шт.

16

S116396

SHIM,.005" Thk

(.1270 mm) .005" Thk

1шт.

16

S116397

SHIM,.010" Thk

(.2540 mm) .010" Thk

1шт.

17

221-845

PLUG,Hex Soc, 3/4"-14

- hex socket head, 3/4 inch PT, oil fill

1шт.

18

N13116

PLATE ASSY.

PLATE - backing RESERVED

1шт.

20

A12779

LEVER

- actuator, brake

1шт.

21

A16642

WASHER

ROLLER - lever

1шт.

22

A12778

SPRING

- brake shoe

2шт.

23

A12780

BRAKE SHOE

SHOE AND LINING ASSEMBLY - parking brake

2шт.

24

A25271

BRAKE DRUM

DRUM - brake

1шт.

25

S113917

YOKE

FLANGE - differential pinion shaft

1шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

27

S113912

LOCK NUT

- bevel pinion

1шт.

28

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- hex, 3/8 NF x 1 inch, grade 8

8шт.

29

L35233

WASHER

- flat, special

6шт.

30

26-940

BOLT - hex, 9/16 NC x 2-1/2 inch, grade 8

6шт.

31

26-928

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 8

- hex, 9/16 NC x 1-3/4 inch, grade 8 RESERVED

2шт.

33

S114895

WASHER

- flat, special

1шт.

34

345-84

ADHESIVE

SEALANT - 3 oz (89 ml) of sealant in a tube, not shown

1шт.

A12843

PACKAGE

KIT - lining, includes linings and rivets for one wheel

2шт.
