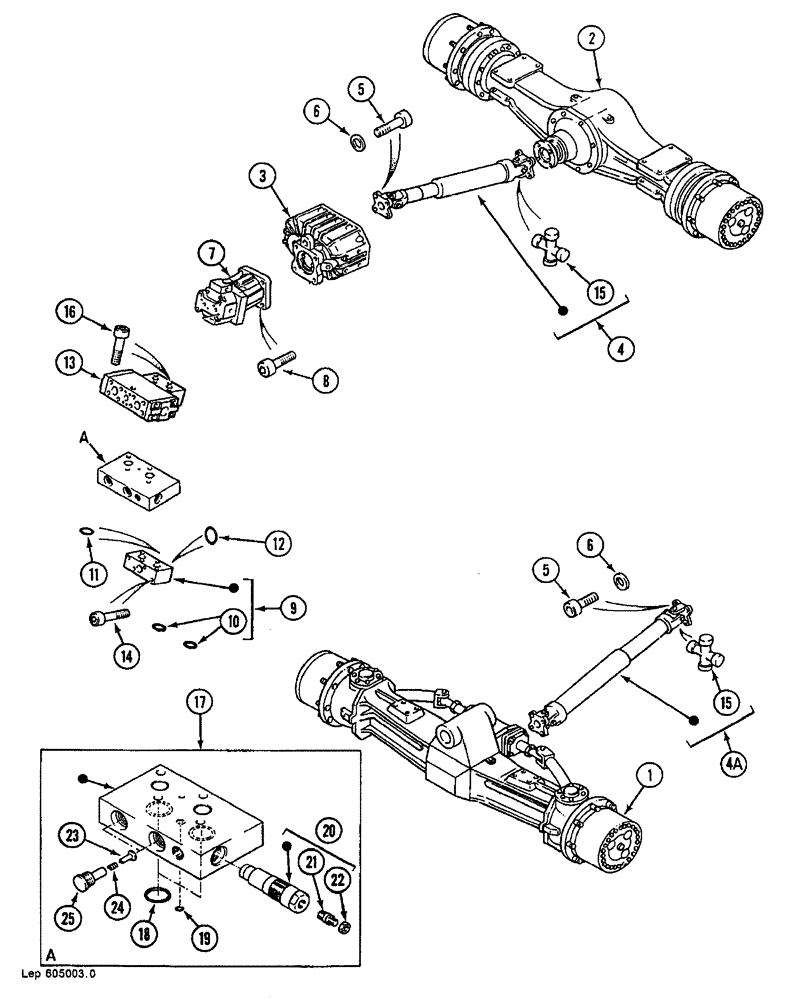

Запчасти Case 688B (54) - UNDERCARRIAGE DRIVE TRAIN (04) - UNDERCARRIAGE

1

REF

INSTRUCTION

FRONT AXLE

1шт.

2

REF

INSTRUCTION

REAR AXLE

1шт.

3

REF

INSTRUCTION

GEARBOX

1шт.

4

H1840145

COUPLING

800 mm

2шт.

5

Q1532941

SCREW

M12 x 30 x 1.25

8шт.

6

G34713

WASHER

8шт.

7

REF

INSTRUCTION

HYD. MOTOR

1шт.

8

M932937

SCREW

M16 x 45

4шт.

9

G4237595

SHIN

1шт.

10

J5949625

SEAL PACKAGE

1шт.

11

D330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

3.53 x 32.92

2шт.

12

W230411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1.78 x 6.07

2шт.

13

REF

INSTRUCTION

VALVE

1шт.

14

Q1232975

SCREW,Hex Skt Hd, M14 x 70mm, Cl 10.9

4шт.

15

V40016

SPIDER

2шт.

16

T1332913

M14 x 125

4шт.

17

U5243328

BLOCK ASSY.

1шт.

18

D330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

3.53 x 32.92

2шт.

19

W230411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1.78 x 6.7, 80

1шт.

20

J3843676

VALVE

1шт.

21

F3240452

SCREW

1шт.

22

J1983045

NUT

1шт.

23

N1729865

VALVE POPPET

2шт.

24

K2838140

SPRING

2шт.

25

A3728806

VALVE POPPET

2шт.
