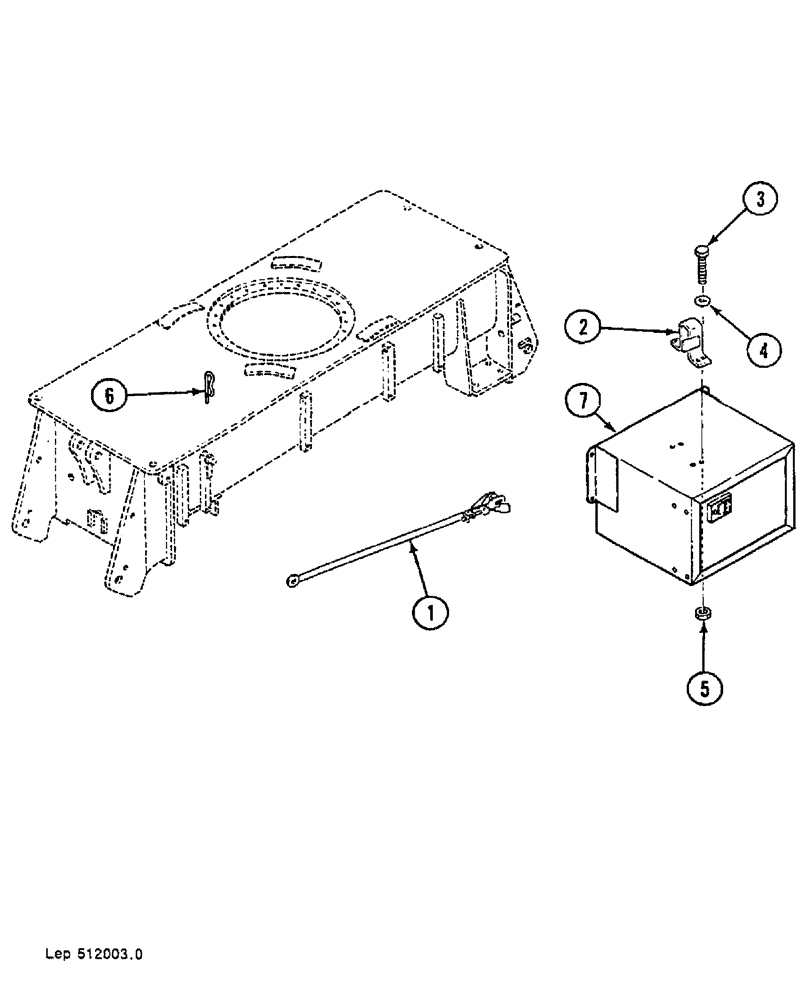

Запчасти Case 688B (50) - TOWING BAR (04) - UNDERCARRIAGE

1

J7946255

DRAWBAR

1шт.

2

H6828224

SUPPORT

1шт.

3

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

4

W3528795

WASHER

10.25 x 7 x 25

4шт.

5

G34598

SAFETY NUT

M10

1шт.

6

L36005

SPLIT PIN/SAFETY PIN

1шт.

7

REF

INSTRUCTION

BOX left

1шт.
