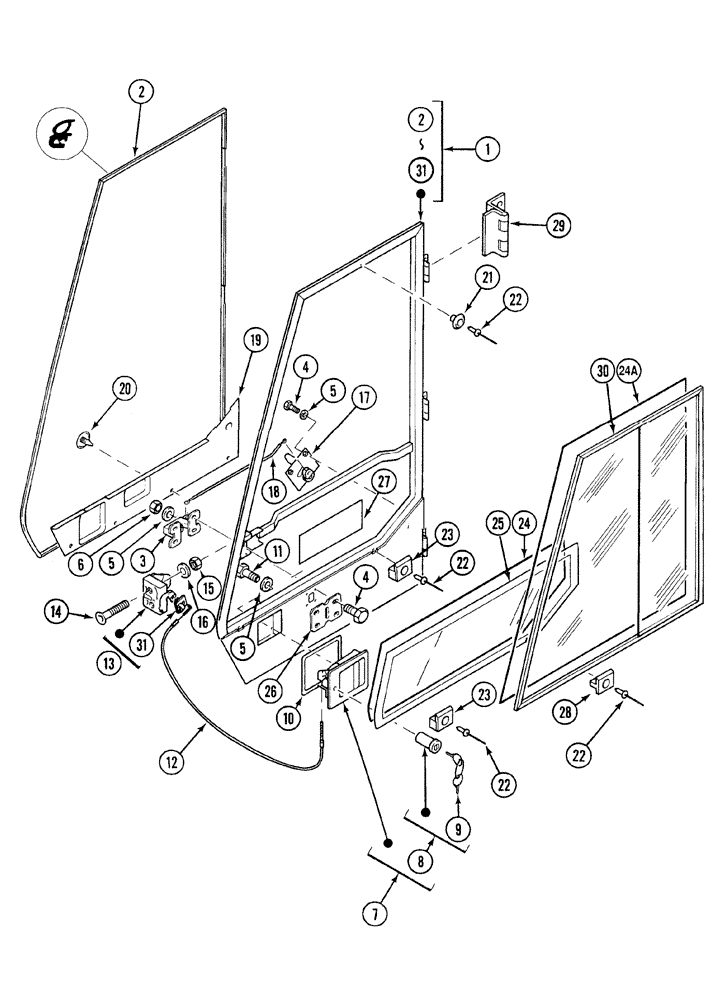

Запчасти Case 788 (09E-08) - CAB DOOR SLIDING WINDOW 788P / 788PSU (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

1

DI-P1386601

DOOR

Consists Of Ref. Numbers 2-31

1шт.

2

Z9646084

GASKET

1шт.

3

T1652015

LOCK ASSY

1шт.

4

120100

BOLT,M6 x 20mm, Cl 8.8

6шт.

5

U35001

WASHER

M6 N

10шт.

6

F234513

SAFETY NUT

M6

4шт.

7

E1652002

HANDLE

Consists Of Ref. Numbers 8, 9

1шт.

8

F1652003

LOCK, CYLINDER

LOCK-CYLINDER , Consists Of Ref. Number 9

1шт.

9

G1652004

SET OF 2 KEYS

1шт.

10

C9646018

GASKET,1mm Thk

1шт.

11

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

M6 x 12

4шт.

12

E2631342

CABLE ASSY.

1шт.

13

D1352058

LOCK ASSY

1шт.

14

P32411

SCREW,Cross, M8 x 45, 10.9

2шт.

15

A134596

SAFETY NUT

M8

2шт.

16

J745438

WASHER

9 x 3 x 18

2шт.

17

C4143222

CONTROL

1шт.

18

G2631344

CABLE

1шт.

19

DI-42528

LINING

1шт.

20

J3836960

BUTTON

4шт.

21

1328415C1

SPACER

1шт.

22

1328414C1

RIVET,Pop, 4mm OD x 22mm L

5шт.

23

1328410C1

CLIP

2шт.

24

DI-42529

GASKET

1500 mm (59-1/8 in)

1шт.

24a

Seal

1шт.

25

DI-2088

GLASS

1шт.

26

J2725991

DOOR COVER

1шт.

27

W4641443

LARGE PLATE

PLATE, LARGE

1шт.

28

1328409C1

CLAMP

2шт.

29

T1136631

HINGE

3шт.

30

S2447078

WINDOW ASSY

See Page(s) 9E-11

1шт.

31

T3836946

CLIP,ELECTRICAL

1шт.
