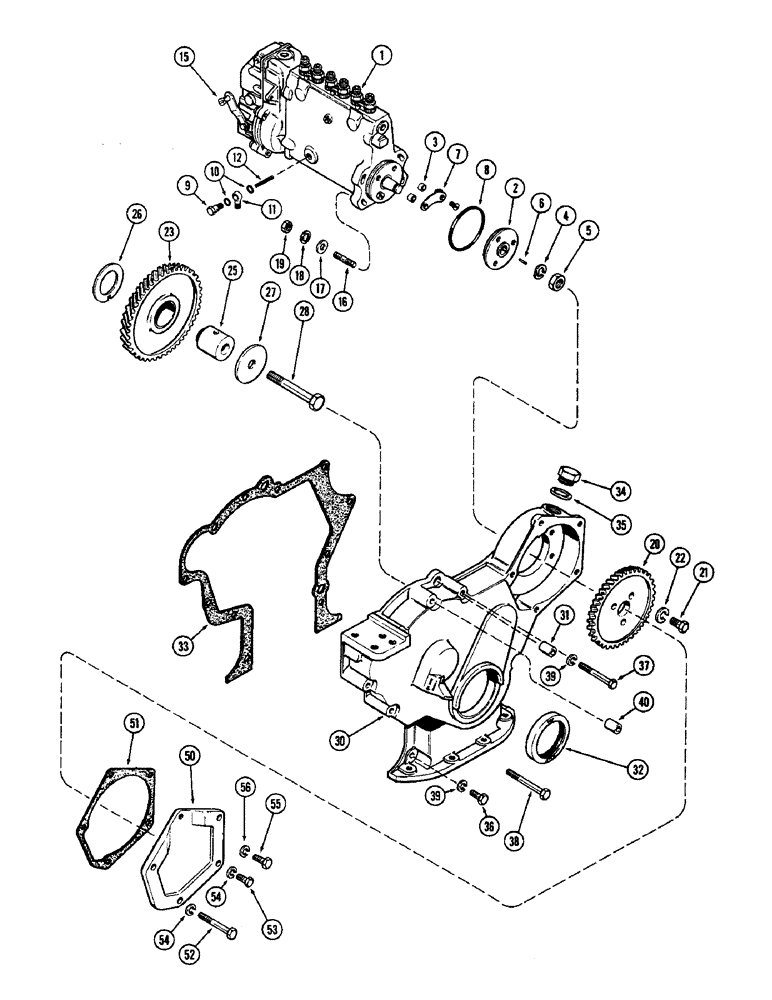

Запчасти Case W9E (033A) - FUEL INJECTION PUMP & DRIVE, (401B) DIESEL ENGINE, USED PRIOR TO ENG. SN. 2323001 (03) - FUEL SYSTEM

1

A60688

PUMP, FUEL INJECTION

PUMP ASSY - fuel injection (2000 R.P.M.) (Bosch #PES6A85C-420LS-2264), Includes: Ref. 2 - 12

1шт.

2

A41853

HUB

- pump drive

1шт.

3

A41855

BUSHING

SPACER - hub

2шт.

4

A42312

LOCK WASHER

- lock, hub nut

1шт.

5

A42313

NUT

- hub

1шт.

6

A20933

KEY

-, Serial Range: hub-shaft

1шт.

7

A41854

INDICATOR

POINTER - pump adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - pump mounting (2-61/64 x 3-3/16 x 1/8")

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube fitting

1шт.

10

A22381

WASHER

- copper, tube fitting

2шт.

11

A25191

FITTING

- banjo, oil, Serial Range: tube-pump

1шт.

12

A25190

SPRING

- fitting

1шт.

15

A59101

PIVOT

- stop control rod

1шт.

16

A58689

STUD

- pump mounting (3/8" N.C. x 1-7/8")

4шт.

17

A57470

WASHER

- stud (13/32 x 11/16" x 16 ga.)

4шт.

18

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

19

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

20

A58693

GEAR

- drive, injection pump

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

22

92-6

LOCK WASHER,3/8"

3шт.

23

A58686

GEAR

ASSY - idler, w/bushing

1шт.

25

A58690

SHAFT

- idler

1шт.

26

A58691

WASHER

- thrust, idler shaft (1-3/4 x 2-11/16 x 1/16")

1шт.

27

A58692

PLATE

- thrust, idler shaft

1шт.

28

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

- 1/2 x 4-1/2" N.C. hex.

1шт.

30

A58609

COVER

ASSY - drive gear, Includes: Ref. 31

1шт.

31

A58611

PIN

- dowel, cover

2шт.

32

A62049

OIL SEAL

- crankshaft front (2-5/8 x 3-5/8 x 1/2")

1шт.

33

A58612

GASKET

-, Serial Range: cover-block

1шт.

34

A21140

PLUG

- timing window

1шт.

35

A58613

SEALING WASHER

GASKET - nylon (1 x 1-1/4 x 1/16")

1шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

37

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex.

2шт.

38

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C. hex.

1шт.

39

92-6

LOCK WASHER,3/8"

7шт.

40

A19774

BUSHING

SPACER - alternator pry point

1шт.

50

A61053

COVER

- drive gear

1шт.

51

A58615

GASKET

- cover, drive gear

1шт.

52

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" N.C. hex.

2шт.

53

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

54

92-6

LOCK WASHER,3/8"

3шт.

55

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

56

92-5

LOCK WASHER,5/16"

1шт.
