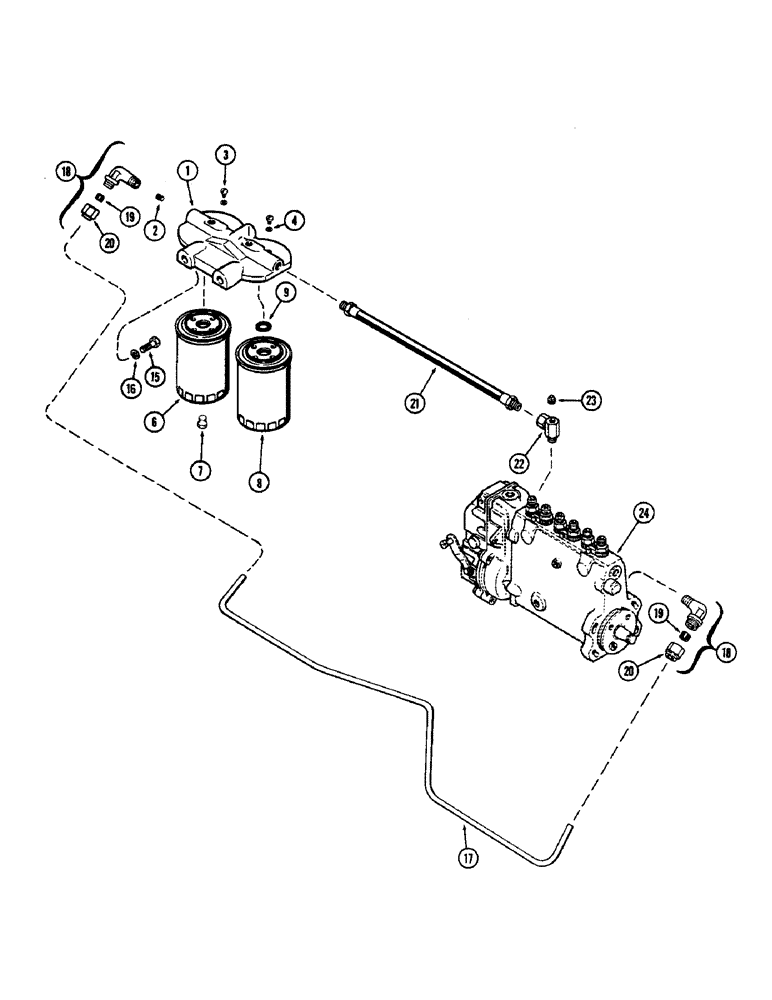

Запчасти Case W9E (030) - FUEL INJECTION FILTER SYSTEM, (401B) DIESEL ENGINE, 1ST USED ENG. SN. 2323001 (03) - FUEL SYSTEM

A62347

FILTER

ASSY - fuel, Includes: Ref. 1 - 9

1шт.

1

A62339

HEAD

ASSY - filter mounting, Includes: Ref. 2

1шт.

2

221-1041

PLUG

- pipe, 1/8" hex. socket

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleeder

2шт.

4

A20662

GASKET

WASHER - bleeder screw

2шт.

CASA41745

FUEL FILTER

ELEMENT KIT - fuel filter, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

FILTER ASSY - 1st stage, Includes: Ref. 7

1шт.

7

221-1661

PLUG

- pipe, 1/8" hex. hd.

1шт.

8

NSS

NOT SOLD SEPARAT

FILTER ASSY - 2nd stage, Includes: Ref. 9

1шт.

9

A42315

GASKET

-, Serial Range: filter-head

1шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

A62342

TUBE

- transfer, Serial Range: pump-filter

1шт.

18

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY - 5/16" tube x 1/4" P.T., Includes: Ref. 19 and 20

2шт.

19

222-103

SLEEVE,5/16" Tube

1шт.

20

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

21

A58716

HOSE

- filter to pump (17")

1шт.

22

A20539

FITTING

UNION -, Serial Range: hose-pump

1шт.

23

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" sq. hd.

1шт.

24

A62329

PUMP

ASSY - fuel injection (Repairs figure 32)

1шт.
