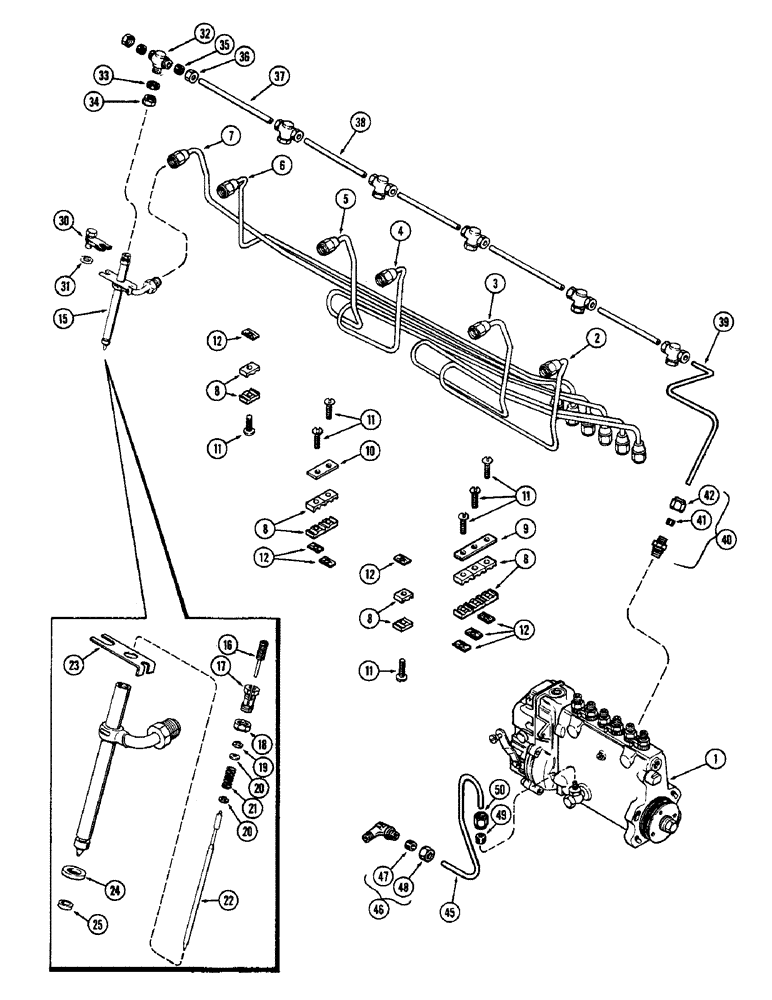

Запчасти Case W9E (028) - FUEL INJECTION SYSTEM, (401B) DIESEL ENGINE (03) - FUEL SYSTEM

1

A62329

PUMP

ASSY - injection (1st used eng. SN 2323001) (Repairs figure 32)

1шт.

1

A60688

PUMP, FUEL INJECTION

PUMP ASSY - injection (Use prior to eng. SN2323001) (Repairs figure 33A)

1шт.

2

A58702

TUBE

ASSY - fuel injection, #1 cylinder

1шт.

3

A58703

TUBE

ASSY - fuel injection, #2 cylinder

1шт.

4

A58704

TUBE

ASSY - fuel injection, #3 cylinder

1шт.

5

A58705

TUBE

ASSY - fuel injection, #4 cylinder

1шт.

6

A58706

TUBE

ASSY - fuel injection, #5 cylinder

1шт.

7

A58707

TUBE

ASSY - fuel injection, #6 cylinder

1шт.

8

A58709

BRACKET

- clamp, injection tube

14шт.

9

A58708

PLATE

- clamp, tube bracket (6 tubes)

1шт.

10

A58710

PLATE

- clamp, tube bracket (4 tubes)

1шт.

11

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- mach. #10 x 1" N.C. rd. hd.

7шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - speed, #10 flat Tinnerman

7шт.

15

A58694

NOZZLE

ASSY - fuel injection (See note), Includes: Ref. 16 - 25

6шт.

A138322R

REMAN-INJECT NOZZLE

W8E, W10E, W9E all S/N 9811801 & AFTER REMAN FOR NEW P/N A58694

6шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

16

A41408

ADJUSTMENT SCREW,#10 - 56 x 1.40"

SCREW - lift adjusting

1шт.

17

A41409

ADJUSTMENT SCREW,5/16" - 48

SCREW - pressure adjusting

1шт.

18

A42424

LOCK NUT

- hex, adjusting screw

1шт.

19

A41407

WASHER

- ball

1шт.

20

A41401

SEAT

- spring

2шт.

21

A41444

VALVE SPRING

SPRING - pressure adjusting

1шт.

22

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

23

A41768

PLATE

- nozzle locating

1шт.

24

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

25

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

30

A58695

CLAMP

ASSY - nozzle assy.

6шт.

31

A58696

SPACER

- nozzle clamp

6шт.

32

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - nozzle leak-off

6шт.

33

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

-, Serial Range: tee-nozzle

6шт.

34

A58961

NUT

-, Serial Range: tee-nozzle

6шт.

35

222-102

SLEEVE,1/4" Tube

Leak-off tube to tee 1/4" Tube

12шт.

36

87017024

TUBE NUT,1/2"-24

NUT - leak-off tube to tee, 1/4" OD

12шт.

37

A58965

TUBE

- leak-off (4-5/8" long)

3шт.

38

A58964

TUBE

- leak-off (5-5/8" long)

2шт.

39

A58963

TUBE

- leak-off, #1, Serial Range: nozzle-valve

1шт.

40

A28098

VALVE

- check, leak-off (In pump), Includes: Ref. 41 and 42

1шт.

41

222-102

SLEEVE,1/4" Tube

1шт.

42

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

1шт.

45

A58717

TUBE

- cyl., Serial Range: block-pump

1шт.

46

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- tube to block, 1/4" tube x 1/8" PT, Includes: Ref. 47 and 48

1шт.

47

222-102

SLEEVE,1/4" Tube

1шт.

48

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

1шт.

49

222-102

SLEEVE,1/4" Tube

Tube to pump 1/4" Tube

1шт.

50

222-102

SLEEVE,1/4" Tube

NUT - tube to pump, 1/4"

1шт.
