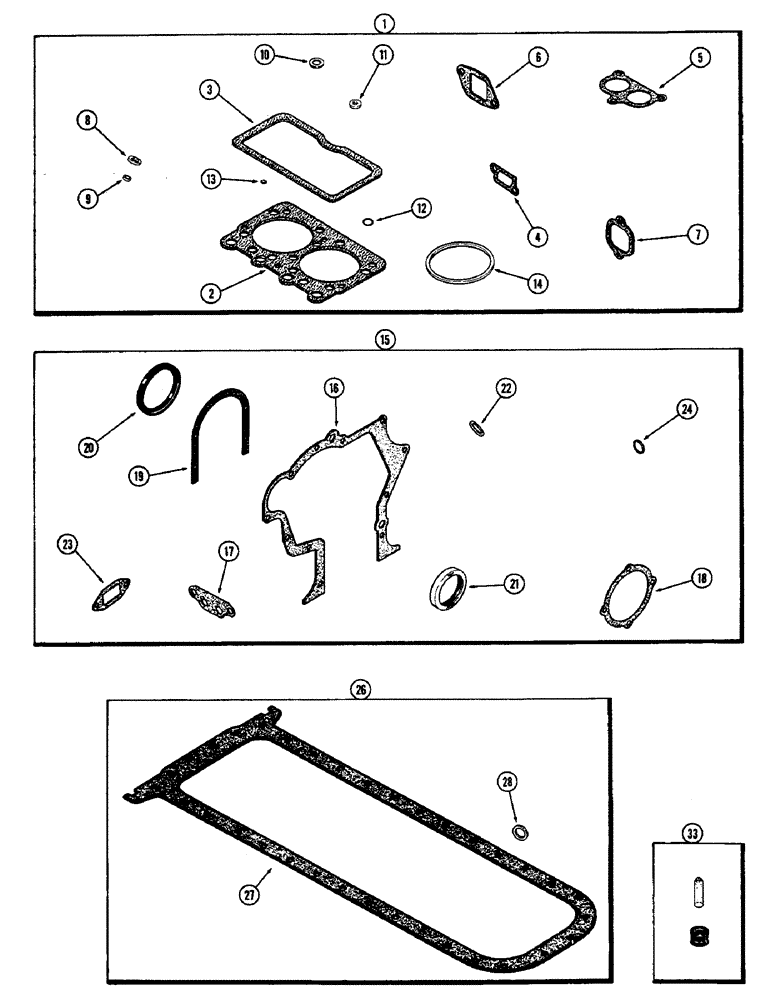

Запчасти Case W9E (026) - ENGINE GASKET KITS, (401B) DIESEL ENGINE (03) - FUEL SYSTEM

1

A42890

VALVE

GASKET KIT - valve grind, Includes: Ref. 1 - 14

1шт.

For complete engine overhaul order 1 - A42890, 1 - A42096 & 1 - A41761

1шт.

2

A62215

GASKET

- cyl., Serial Range: head-block

3шт.

3

A58928

CYLINDER HEAD GASKET

- cyl. head cover

3шт.

4

A58637

MANIFOLD GASKET

- water manifold

3шт.

5

A58639

GASKET

- thermostat housing

1шт.

6

A58662

MANIFOLD GASKET

- intake manifold

6шт.

7

A58666

MANIFOLD GASKET

- exhaust manifold

6шт.

8

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injector nozzle

6шт.

9

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, injector nozzle

6шт.

10

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube

3шт.

11

A23684

GASKET

GASKET - cover studs

6шт.

12

A34133

GASKET

- breather screw

3шт.

13

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube

3шт.

14

A34686

RING

- fire, cylinder sleeve

6шт.

15

A42096

GASKET

KIT - cylinder block, Includes: Ref. 16 - 24

1шт.

For complete engine overhaul order 1 - A42890, 1 - A42096 & 1 - A41761

1шт.

16

A58612

GASKET

- timing gear cover

1шт.

17

A58756

OIL PAN GASKET SET

- filter base (Not used this unit)

1шт.

18

A58646

GASKET

- water, Serial Range: pump-body

1шт.

19

A32830

GASKET

- rear oil seal retainer

1шт.

20

A62050

OIL SEAL

- oil, crankshaft rear

1шт.

21

A62049

OIL SEAL

- oil, crankshaft front

1шт.

22

A58613

SEALING WASHER

GASKET - timing window plug

1шт.

23

A58649

GASKET

- water pump, Serial Range: body-block

1шт.

24

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

"O" RING - oil pump & oil filter base

3шт.

26

A41761

GASKET

KIT - oil pan, Includes: Ref. 27 and 28

1шт.

For complete engine overhaul order 1 - A42890, 1 - A42096 & 1 - A41761

1шт.

27

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A41761)

1шт.

28

A58933

OIL PAN GASKET SET

- drain plug (7/8 x 1-1/4 x 1/16" nylon)

1шт.

33

M20614

SEAL KIT

SEAL KIT - valve (Includes 4 seals and installation sleeve)

1шт.
