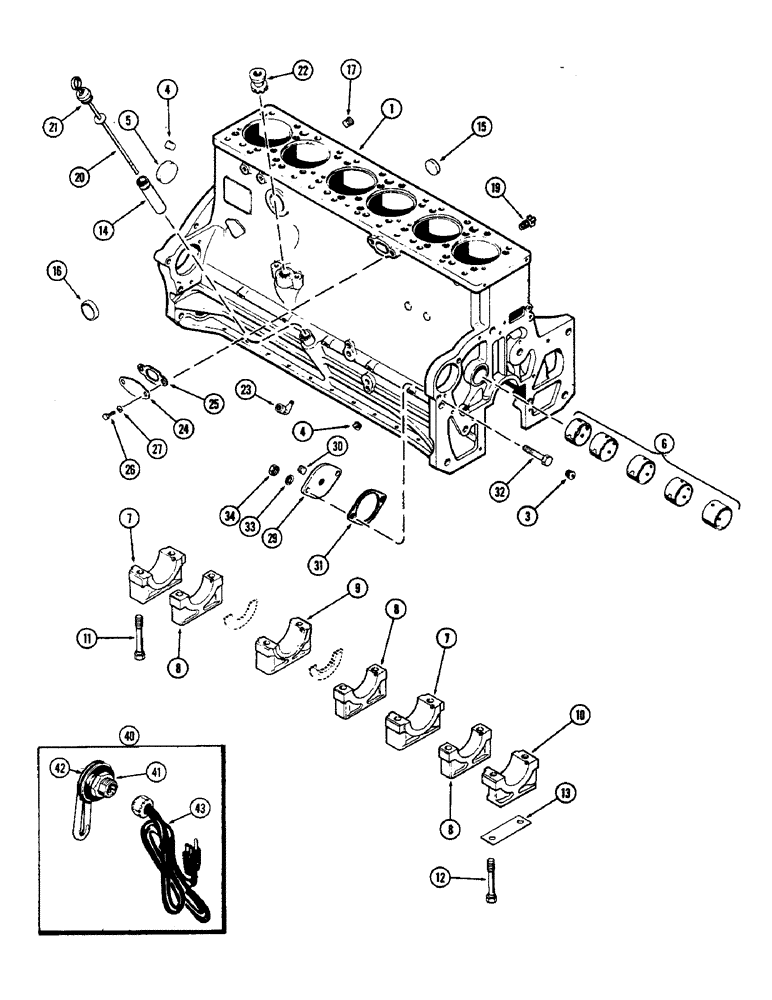

Запчасти Case W9E (016) - CYLINDER BLOCK ASSY., (401B) DIESEL ENGINE, CYLINDER BLOCK (02) - ENGINE

A41962

BLOCK

ASSY - short (Incl. stripped block, pistons, sleeves, conn. rods, crankshaft, bearings, rear oil seal, camshaft, lifters and oil pump), Includes: Ref. 1 - 16

1шт.

1

A41963

SKELETON ENGINE

BLOCK ASSY - stripped (Casting #A58511), Includes: Ref. 3 - 16

1шт.

3

221-1843

PLUG

- 3/8" P.T. hex. socket hd.

4шт.

4

221-1041

PLUG

- 1/8" P.T. slotted headless

5шт.

5

A24361

PLUG

- camshaft hole (2-3/8" cup type)

1шт.

6

A23544

BUSHING

KIT - camshaft

1шт.

7

A58783

BEARING CAP

CAP - wide main bearing

2шт.

8

A58784

BEARING CAP

CAP - nawwor main bearing

3шт.

9

A58785

BEARING CAP

CAP - thrust, main bearing

1шт.

10

A58782

CAP

- front main bearing

1шт.

11

A58566

STEP BOLT

BOLT - bearing cap (5/8 x 4-1/2" N.C. spec.)

12шт.

12

A58567

STEP BOLT

BOLT - oil pmp & brg. cap (5/8 x 6-13/16" N.C. spec.)

2шт.

13

A58859

SHIM,.005" Thk

Oil pump to cap .005" Thk

1шт.

14

A34540

TUBE

SOCKET - oil filler & dipstick

1шт.

15

A58568

PLUG,Cup, 1 3/8", Stainless

- water gallery (1-3/8" cup type)

3шт.

16

A58569

PLUG,Cup, 2", Stainless

- heater hole (2" cup type)

1шт.

17

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - 3/4" P.T. hex. socket hd.

1шт.

19

A23656

COCK, DRAIN

VALVE - drain, water

1шт.

20

A34541

DIPSTICK

- oil level, Includes: Ref. 21

1шт.

REF. 20 ANOTHER GAUGE USED(NOT A SUB) PART A20739

1шт.

21

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - 3/4 x 1 x 1/8"

2шт.

22

A34266

DRIVE

ASSY - tachometer

1шт.

23

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- street, 1/8" 90 degrees

1шт.

24

A58851

PLATE

COVER - water opening, oil cooler

1шт.

25

A58670

GASKET

- cover, water opening

1шт.

26

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd

2шт.

27

92-8

LOCK WASHER,1/2"

2шт.

29

A58891

COVER

- pump opening

1шт.

30

221-1843

PLUG

- cover, 3/8" P.T. hex. socket hd.

1шт.

31

A58617

GASKET

- cover, pump opening

1шт.

32

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C. hex.

2шт.

33

92-6

LOCK WASHER,3/8"

2шт.

34

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

40

A42279

HEATER

KIT - cylinder block, Includes: Ref. 41 - 43

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Order A42279), cylinder block heater

1шт.

42

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING - element to block (1-3/4 x 2 x 1/8"), cylinder block heater

1шт.

43

A42297

LAMP

CORD - heater, 60" long (Includes plugs), cylinder block heater

1шт.
