Запчасти Case W9E (010) - MANIFOLD & MUFFLER, (377B) SPARK IGNITION ENGINE (02) - ENGINE

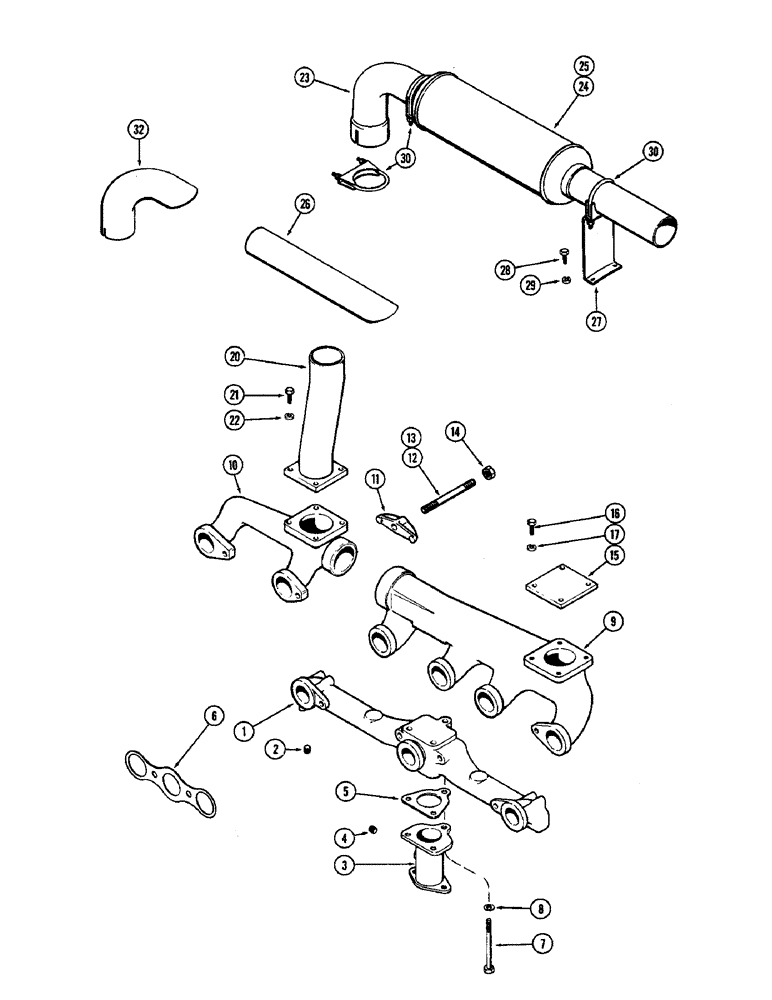

Схема запчастей Case W9E - (010) - MANIFOLD & MUFFLER, (377B) SPARK IGNITION ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A61009

MANIFOLD - intake

1шт.

2

221-1843

PLUG

- 3/8" P.T. hex. socket hd.

1шт.

3

A61160

RISER

- intake manifold

1шт.

4

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

5

A58833

GASKET

-, Serial Range: riser-manifold

1шт.

6

A58804

GASKET

- intake & exhaust manifold

3шт.

7

13-676

CAPSCREW,Hex, 3/8" - 16 x 4 3/4", Gr 5

BOLT, Hex, 3/8"-16 x 4 3/4", G5

2шт.

8

92-6

LOCK WASHER,3/8"

2шт.

9

A58840

MANIFOLD - rear exhaust

1шт.

10

A60884

MANIFOLD - front exhaust

1шт.

11

A24368

CLAMP

-, Serial Range: manifolds-head

6шт.

12

A61051

STUD - manifold clamp (7/16" N.C. - N.F. x 6-3/8")

4шт.

13

A61052

STUD - manifold clamp (7/16" N.C. - N.F. x 7-7/32")

2шт.

14

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

6шт.

15

A58665

COVER

- rear exhaust manifold

1шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

17

92-6

LOCK WASHER,3/8"

4шт.

20

L42619

STACK -, Serial Range: exhaust-muffler

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

L42606

ELBOW -, Serial Range: stack-muffler

1шт.

24

A24103

MUFFLER

- exhaust (See L10224)

1шт.

25

L10224

MUFFLER

- exhaust (Spark arresting)

1шт.

26

L10225

EXHAUST SYSTEM PIPE

PIPE - tail (w/L10224 only)

1шт.

27

L42170

BRACKET - rear support, muffler

1шт.

28

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

29

92-5

LOCK WASHER,5/16"

2шт.

30

A27115

CLAMP

BRACKET - clamp, muffler & pipe

3шт.

32

A19954

ELBOW UNION

ELBOW - muffler (Used w/backhoe)

1шт.

Выбрано товаров: 29
