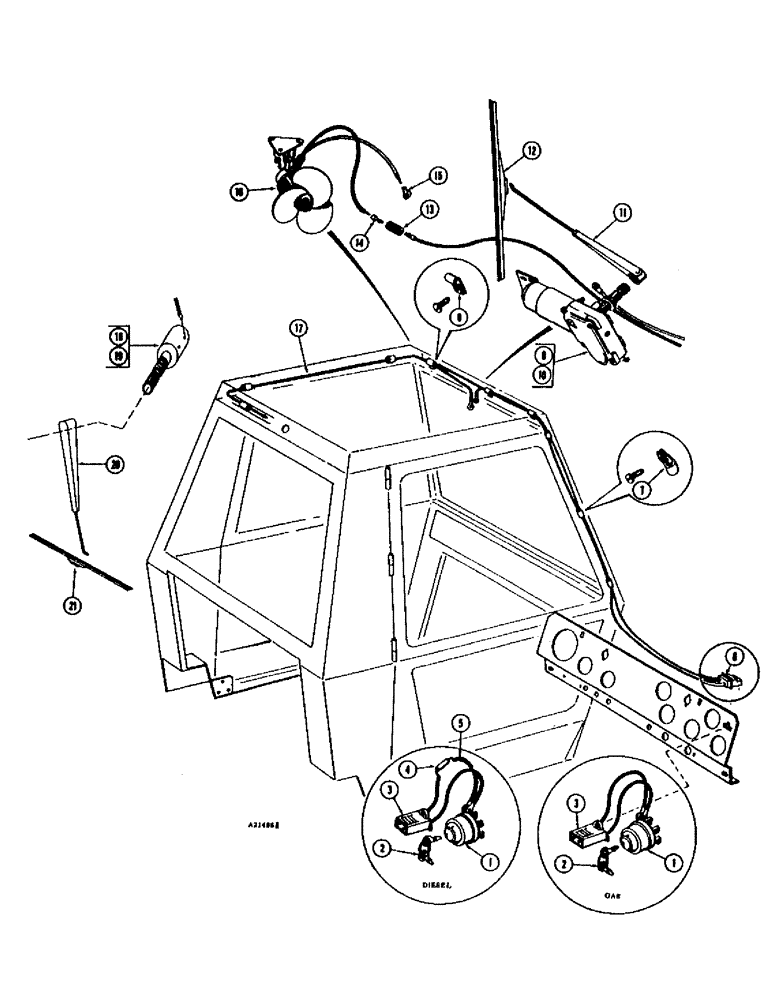

Запчасти Case W9E (277E) - OPERATORS CAB, CAB ELECTRICAL SYSTEM (09) - CHASSIS

1

L17820

SWITCH

- electrical, Includes: Ref. 2

1шт.

2

A20346

KEY

- ignition switch

1шт.

3

L17477

PLUG AND WIRE - cab connector

1шт.

173-63

SCREW,Sl Rnd Hd, #6 - 32 x 5/8"

- machine, #6 x 5/8" N.C., rd. hd.

1шт.

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

129-5

NUT,#6-32

1шт.

4

A56520

RESISTOR - Diesel only

1шт.

5

A13754

ELECTRICAL WIRE

WIRE - resistor, diesel only

1шт.

6

L17476

HARNESS - cab wiring, connector to defroster fan and windshield wipers

1шт.

7

L10168

CLAMP -, Serial Range: harness-cab

5шт.

187-1009

BOLT

SCREW - self-tapping, 1/4" x 3/8" N.C.

5шт.

8

L10167

CLAMP - windshield wiper wires

5шт.

187-1009

BOLT

SCREW - self-tapping, 1/4" x 3/8" N.C.

2шт.

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

3шт.

9

T41944

MOTOR

- windshield wiper, front, 12 V gas

1шт.

10

T41945

WIPER MOTOR

MOTOR - windshield wiper, front, 24 V diesel

1шт.

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

- machine, #10 x 3/4" rd. hd., Z.P.

1шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

129-17

NUT,Hex, #10 - 24

NUT - #10 N.C. hex., Z.P.

1шт.

11

T41946

ARM

- windshield wiper, front

1шт.

12

A42580

WIPER BLADE,203.2mm L

BLADE - windshield wiper, front, 16"

1шт.

13

A27213

CONNECTOR - wire to defroster fan

1шт.

14

L10051

TERMINAL CONNECTOR,Male

TERMINAL - wire

1шт.

15

223-58

TERMINAL CONNECTOR,14 - 16

EYELET - wire

1шт.

16

L10169

FAN

- defroster

1шт.

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- machine, #6 x 1/2" N.C. rd. hd., Z.P.

3шт.

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

3шт.

129-15

NUT,#6-32

3шт.

17

T42514

WIRE - windshield wiper, rear

1шт.

18

A13039

MOTOR - windshield wiper, rear 12 V gas

1шт.

19

A56143

WIPER MOTOR

MOTOR - windshield wiper, rear, 24 V diesel

1шт.

20

A10893

ARM

- windshield wiper, rear

1шт.

21

A56144

BLADE - windshield wiper, rear, 10"

1шт.
