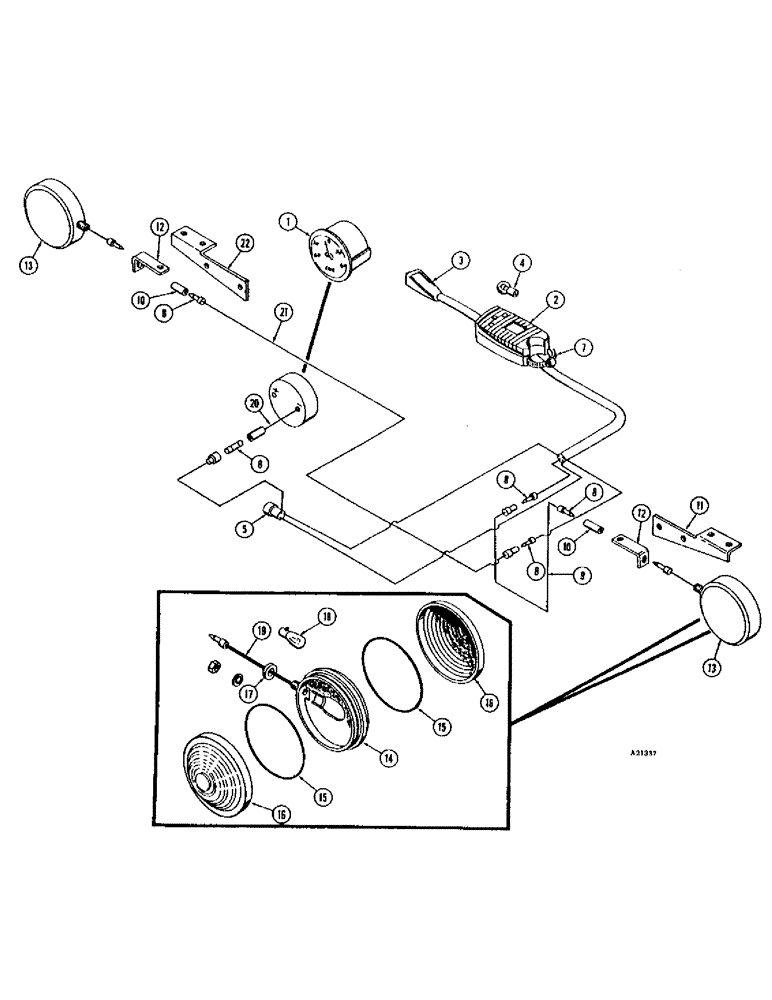

Запчасти Case W9E (274) - TURN SIGNALS (09) - CHASSIS

1

A55699

ELECTRICAL GAUGE

GAUGE - ammeter, 60 amp.

1шт.

2

A19877

SWITCH ASSEMBLY - 12 volt (Gas models only), Includes: Ref. 3 - 7

1шт.

3

L30264

HANDLE - signal switch

1шт.

4

B50213

BULB

- signal switch, 12 volt

1шт.

5

A19878

FLASHER - signal control, 12 volt

1шт.

187-570

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

SCREW - #10 x 1/4" rd. hd. self-tapping

1шт.

6

223-14

FUSE,10 Amp, Type SFE

- protective, 14 amp.

1шт.

7

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- switch mounting #28, 1.31/2.25 Type F Worm

1шт.

177-82

SCREW - machine, #8 x 1 fillister head

2шт.

2

A55993

SWITCH ASSEMBLY - 24 volt (Diesel models only), Includes: Ref. 3 - 7

1шт.

3

L30264

HANDLE - signal switch

1шт.

4

A14928

BULB

- signal switch, 24 volt

1шт.

5

A55994

FLASHER UNIT

FLASHER - signal control, 24 volt

1шт.

187-570

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

SCREW - #10 x 1/4" rd. hd. self-tapping

1шт.

6

223-6

FUSE,6 Amp, Type 3AG

- protective, 60 amp.

1шт.

7

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- switch mounting #28, 1.31/2.25 Type F Worm

1шт.

177-82

SCREW - machine, #8 x 1 fillister head

2шт.

8

L10051

TERMINAL CONNECTOR,Male

CONNECTOR - bullet - Male

4шт.

9

L17193

ELECTRICAL WIRE

WIRE - connector, to L.H. front signal

1шт.

10

A27213

CONNECTOR - female

2шт.

11

T41494

BRACKET - turn signal, L.H. w/cab

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

92-6

LOCK WASHER,3/8"

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

12

T41493

BRACKET - turn signal

2шт.

13

T41491

LIGHT - turn signal, 12 volt (Gas models only), Includes: Ref. 14 - 19

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - light

1шт.

15

NLS

NO LONGER SERVICED

"O" RING - light

2шт.

16

A41261

LENS

- light

2шт.

17

A41263

GASKET - mounting and light

1шт.

18

A41264

BULB,#1156, 12V

Light #1156, 12V

1шт.

19

A41260

WIRE - light

1шт.

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

129-165

JAM NUT,Jam, 1/2"-20, G5

1шт.

13

T41492

LIGHT - turn signal, 24 volt (Diesel models only), Includes: Ref. 14 - 19

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - light

1шт.

15

A41262

O-RING,3.484" ID x 0.139"

"O" RING - light

2шт.

16

A41261

LENS

- light

2шт.

17

A41263

GASKET - mounting, light

1шт.

18

A15084

LAMP

BULB - light, 24 volt

1шт.

19

A41260

WIRE - light

1шт.

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

129-165

JAM NUT,Jam, 1/2"-20, G5

1шт.

20

223-50

TERMINAL CONNECTOR,14 - 16

TERMINAL - eyelet, switch wire

1шт.

21

L15397

WIRE - connector R.H. front signal

1шт.

22

T41495

BRACKET - turn signal, R.H. w/cab

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

92-6

LOCK WASHER,3/8"

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.
