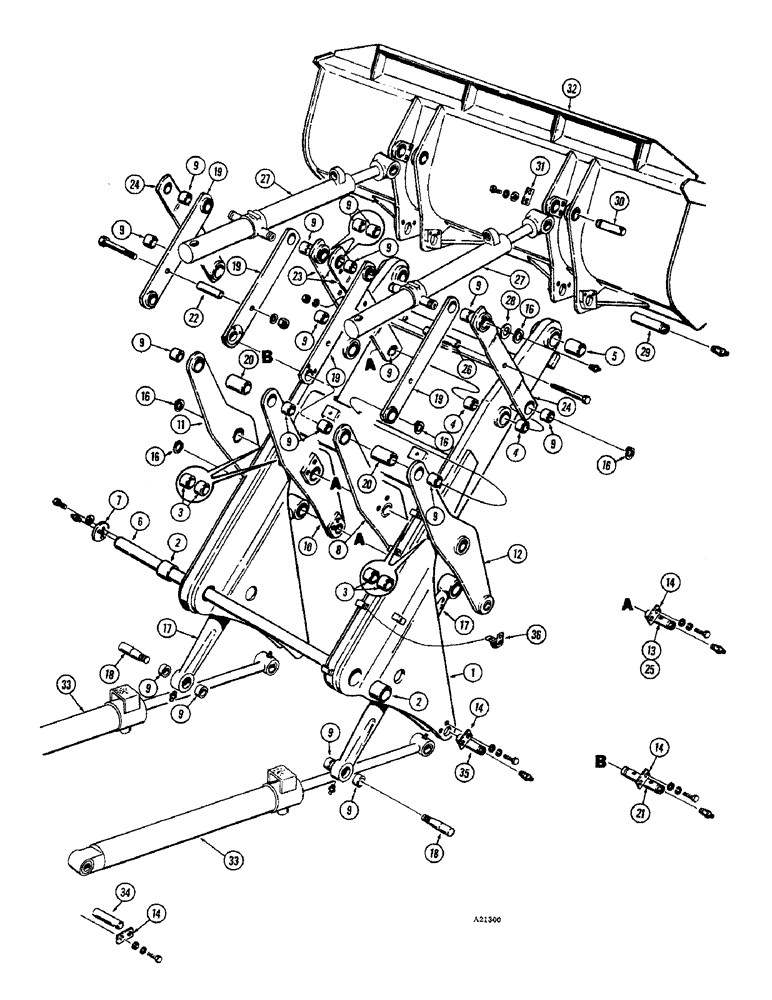

Запчасти Case W9E (218) - LOADER LIFT FRAME AND RELATED PARTS (09) - CHASSIS

1

T41116

LIFT FRAME - loader, Includes: Ref. 2 - 5

1шт.

2

A16761

BUSHING

- pivot, lift, Serial Range: frame-chassis

2шт.

3

A12062

BUSHING

- tilt lever to tilt frame

4шт.

4

A12059

BUSHING

- pivot, cylinder link to lift frame

4шт.

5

A56184

BUSHING

- pivot, loader bucket to lift frame

2шт.

6

A15964

SHAFT

- pivot, lift, Serial Range: frame-chassis

1шт.

7

A15965

PLATE

- shaft retainer

2шт.

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2" x 1-1/4" N.F. hex.

6шт.

92-8

LOCK WASHER,1/2"

6шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

2шт.

8

L19231

LEVER - tilt, inner, R.H., Includes: Ref. 9

1шт.

9

A12062

BUSHING

- lever

3шт.

10

L19232

LEVER - tilt, inner, L.H., Includes: Ref. 9

1шт.

9

A12062

BUSHING

- lever

3шт.

11

L19229

LEVER - tilt, outer, L.H., Includes: Ref. 9

1шт.

9

A12062

BUSHING

- lever

3шт.

12

L19228

LEVER - tilt, outer, R.H., Includes: Ref. 9

1шт.

9

A12062

BUSHING

- lever

3шт.

13

T41113

AXLE PIN

PIN - tilt lever to lift frame

4шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

4шт.

14

L17204

LOCK

- pin retainer

12шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

24шт.

92-6

LOCK WASHER,3/8"

24шт.

95-6

WASHER,3/8"

- plain, 3/8"

24шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

12шт.

16

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

12шт.

17

T41121

DRAG LINK

LINK - leveling, chassis to tilt lever, Includes: Ref. 9

2шт.

9

A12062

BUSHING

- leveling link

4шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

2шт.

18

A12523

PIN

- leveling, Serial Range: link-chassis

2шт.

131-216

LOCK

NUT - 1-1/2" N.F. hex.

2шт.

19

T41115

LINK - outer and inner leveling, at tilt lever, Includes: Ref. 9

4шт.

9

A12062

BUSHING

- link

2шт.

20

T41110

SPACER

- tilt lever

2шт.

21

L17107

AXLE PIN

PIN - tilt lever to leveling link

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

2шт.

22

L17113

SPACER - leveling link

2шт.

13-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

- 3/4" x 8-1/2" N.C. hex.

2шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

25-1012

NUT,3/4"-10, G5

2шт.

23

L19236

LINK - cylinder pivot, rear, Includes: Ref. 9

2шт.

9

A12062

BUSHING

- pivot link

2шт.

24

L19235

LINK - cylinder pivot, outer, Includes: Ref. 9

2шт.

9

A12062

BUSHING

- cylinder link

2шт.

25

L17106

AXLE PIN

PIN - cylinder pivot, Serial Range: link-frame

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

2шт.

26

L17437

SPACER

- cylinder link

2шт.

13-10136

CAPSCREW,Hex, 5/8" - 11 x 8 1/2", Gr 5

BOLT - 5/8" x 8-1/2" N.C. hex.

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

2шт.

27

G32000

CYLINDER - hydraulic, loader tilt (Use G32227) Parts list figure 264)

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

4шт.

28

D25509

WASHER

- plain, special

4шт.

29

A18597

PIN

- lower pivot, lift, Serial Range: frame-bucket

2шт.

30

A14105

PIN

- upper pivot, tilt, Serial Range: cylinder-bucket

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

2шт.

31

L17207

LOCK ASSY

LOCK - pin retainer

4шт.

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

92-8

LOCK WASHER,1/2"

8шт.

95-8

WASHER,1/2"

- plain 1/2"

8шт.

32

REF

INSTRUCTION

BUCKET - loader (See figure 222 for optional types)

1шт.

33

G31992

CYLINDER - hydraulic, loader lift (Use G32178) Parts list figure 262

2шт.

34

A18909

AXLE PIN

PIN - pivot, lift, Serial Range: cylinder-chassis

2шт.

35

A18908

PIN

- pivot, lift, Serial Range: cylinder-frame

2шт.

36

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- return to dig wires

5шт.

71-46

SCREW - fillister head. 1/4" x 3/8"

5шт.

95-4

WASHER,1/4"

LOCKWASHER - 1/4"

5шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.
