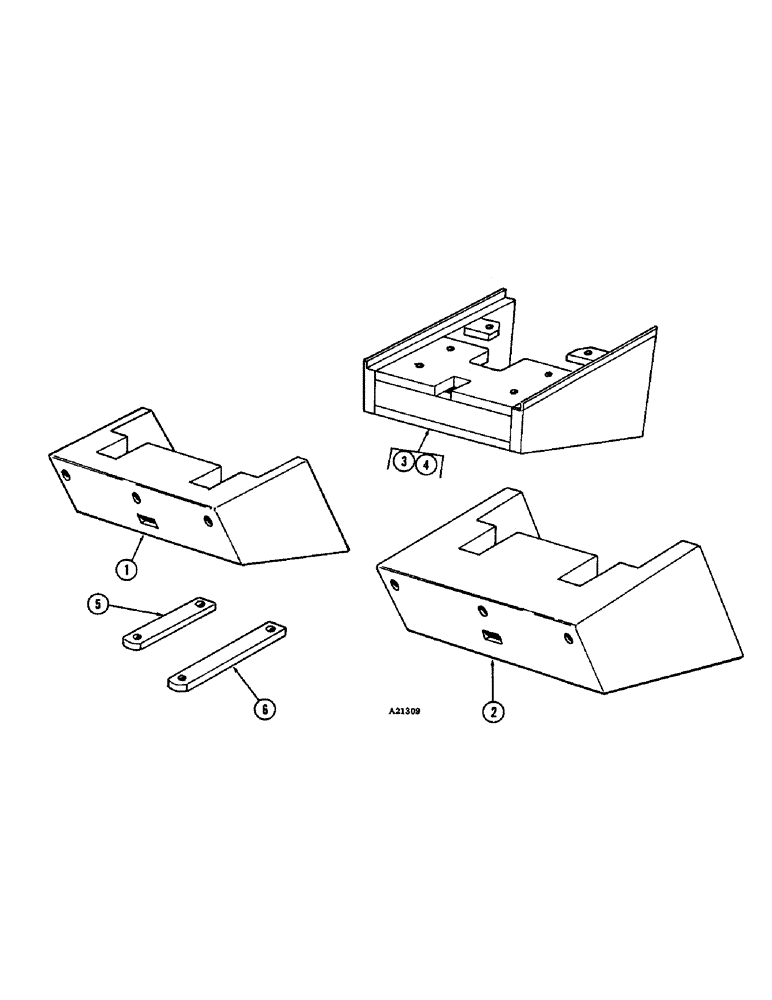

Запчасти Case W9E (148) - REAR COUNTERWEIGHTS (09) - CHASSIS

1

T41103

COUNTERWEIGHT - rear, W8E & W9E

1шт.

2

T41154

COUNTERWEIGHT - rear, W10E

1шт.

15-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

- 3/4" x 8" N.C. hex.

3шт.

195-45

WASHER,3/4"

3шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

25-1012

NUT,3/4"-10, G5

3шт.

3

L42192

COUNTERWEIGHT - rear, inside, W8E & W9E

1шт.

4

T41153

COUNTERWEIGHT - rear, inside, W10E

1шт.

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

2шт.

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

4шт.

195-45

WASHER,3/4"

6шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

25-1012

NUT,3/4"-10, G5

6шт.

5

T41107

DRAWBAR - W8E & W9E

1шт.

6

T41370

DRAWBAR - W10E

1шт.
