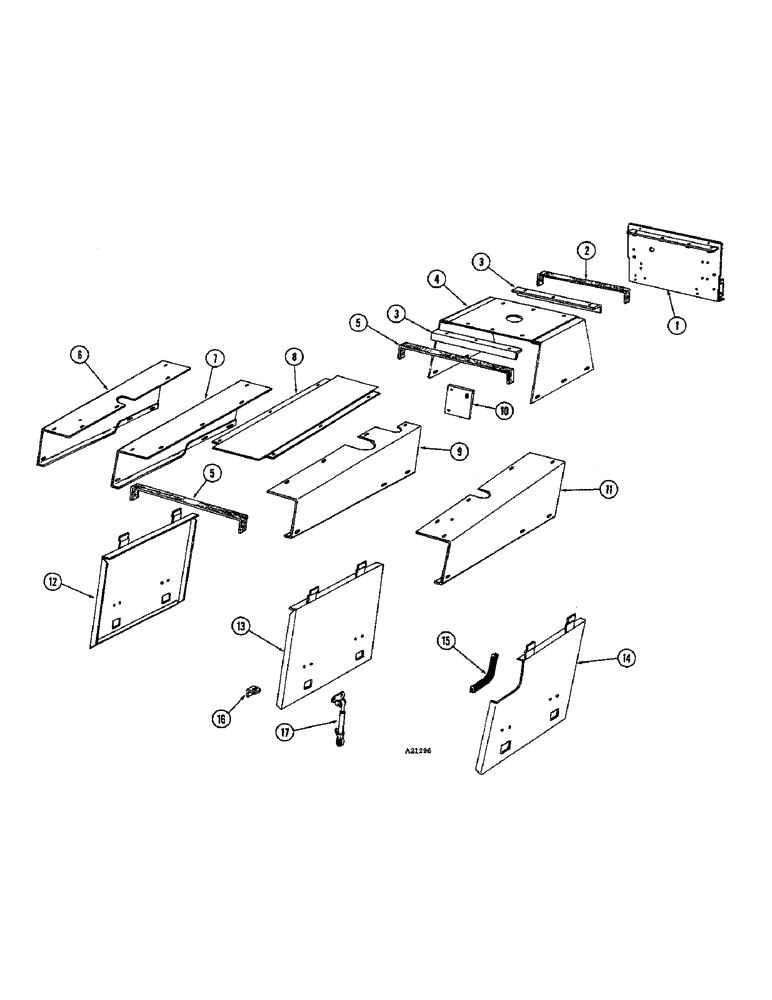

Запчасти Case W9E (142) - HOOD AND ENGINE SIDE PANELS (09) - CHASSIS

1

L42203

PLATE - mounting, fuel tank

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

92-6

LOCK WASHER,3/8"

4шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

2

A18822

GASKET

MOULDING - hood edge

1шт.

3

L42146

ANGLE - hood hold down

2шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

92-5

LOCK WASHER,5/16"

4шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

4шт.

4

L42141

HOOD - fuel tank, front

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

195-521

WASHER,5/16", SAE

- 5/16" Z.P. plain

6шт.

5

L11785

SHIM

PAD -, Serial Range: hood-chassis

2шт.

6

T41130

HOOD - rear L.H. (Diesel)

1шт.

7

T41129

HOOD - rear L.H. (Gas)

1шт.

8

T41135

HOOD - center, rear

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

92-5

LOCK WASHER,5/16"

4шт.

9

T41131

HOOD - rear R.H. (Gas)

1шт.

10

T41086

PLATE - cover, hood opening (Used with oil bath air cleaner, gas only)

1шт.

173-118

SCREW,Sl Rnd Hd, #12 - 24 x 5/8"

- machine, #12 x 5/8" N.C. rd. hd.

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

225-14112

NUT,#12-24

- #12 N.C. hex.

2шт.

11

T41132

HOOD - rear, R.H. (Diesel)

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12шт.

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16" x 1-1/4" N.C. hex.

4шт.

92-5

LOCK WASHER,5/16"

16шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

6шт.

12

L42187

PANEL ASSY.

SIDE PANEL - engine, L.H. (Used with dry and oil bath air cleaners)

1шт.

13

L42186

PANEL ASSY.

SIDE PANEL - engine, R.H. (Used with dry type air cleaner and oil bath, Gas)

1шт.

14

T41156

SIDE PANEL - engine, R.H. (Used with oil bath air cleaner, Gas only)

1шт.

15

A19989

MOULDING - side panel (Used with T41156 panel only)

1шт.

16

A14382

BRACKET - hold down panel

4шт.

17

A12514

LATCH

- side panel

4шт.

173-118

SCREW,Sl Rnd Hd, #12 - 24 x 5/8"

- machine, #12 x 5/8" N.C. rd. hd.

8шт.

193-7

LOCK WASHER,Ext Tooth, #12

WASHER, LOCK, Ext Tooth, #12

8шт.

225-14112

NUT,#12-24

- #12 N.C.

8шт.
