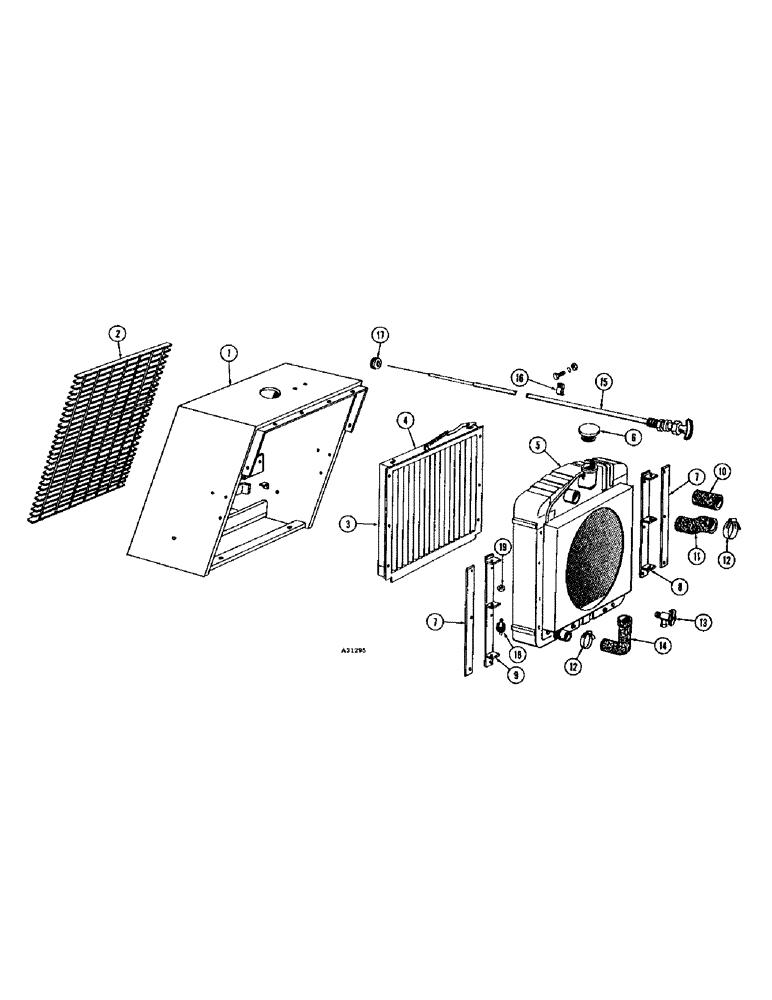

Запчасти Case W9E (140) - RADIATOR, GRILLE AND SHUTTER (09) - CHASSIS

1

L42125

HOUSING - radiator

1шт.

41-8

PLUG

- expansion

2шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

92-6

LOCK WASHER,3/8"

8шт.

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- 1/2" x 1-1/2" N.C. hex.

2шт.

92-8

LOCK WASHER,1/2"

2шт.

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

92-8

LOCK WASHER,1/2"

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

2

T41485

GRILL - radiator

1шт.

3

A15939

SHUTTER - radiator, Includes: Ref. 4

1шт.

4

A9909

SPRING - shutter

1шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT - 5/16" x 5/8" N.C. hex.

4шт.

92-5

LOCK WASHER,5/16"

4шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

4шт.

5

L41869

RADIATOR

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex.

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

2шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-24 x 5/8", G5, Full Thd

4шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" plain

6шт.

92-5

LOCK WASHER,5/16"

6шт.

6

A21389

CAP

- radiator (7 PSI)

1шт.

7

L42265

SPACER - radiator mounting

2шт.

8

L42189

SUPPORT - radiator mounting, R.H.

1шт.

9

L42190

SUPPORT - radiator mounting, L.H.

1шт.

10

A24293

LARGE HOSE,2.50" ID x 6.19", SAE 20R4 CLASS R

RADIATOR HOSE, , Inlet (Diesel) 2.50" ID x 6.19", SAE 20R4 CLASS R

1шт.

11

L41656

HOSE - radiator, upper (Gas)

1шт.

12

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, upper and lower

2шт.

13

A23655

VALVE

- radiator drain

1шт.

14

L41655

HOSE

- radiator, lower

1шт.

15

A9251

CABLE - shutter control

1шт.

16

A26673

CLIP

- shutter cable

1шт.

173-99

SCREW,Sl Rnd Hd, #10 - 24 x 5/8"

- machine, #10 x 5/8" N.C. rd. hd.

1шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

129-7

NUT,Hex, #10 - 24

- #10 N.C. hex.

1шт.

17

A17599

GROMMET,1/4" ID x 7/16" Groove Dia

- rubber, shutter cable

1шт.

18

L11236

BOLT

BOLT - flexible mounting

6шт.

19

195-2020

WASHER,.344" x 1" x .065"

- special

12шт.

92-5

LOCK WASHER,5/16"

12шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

12шт.
