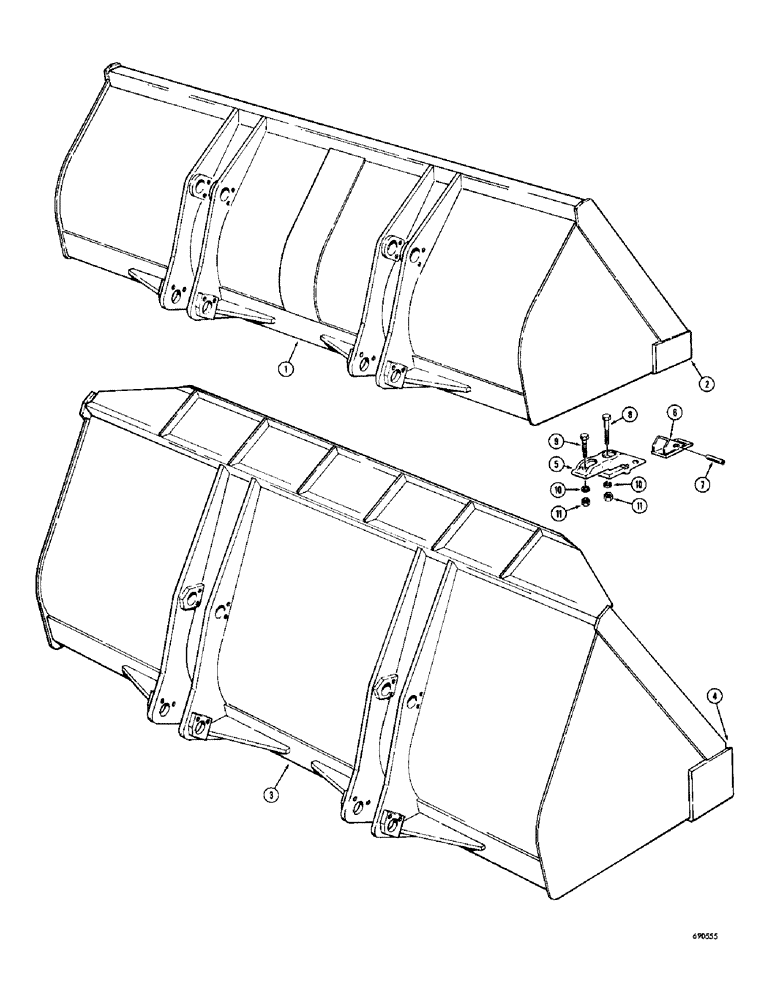

Запчасти Case W9C (200) - LOADER BUCKETS, OPTIONAL TYPES, 1-1/2 CUBIC YARD LOADER BUCKETS, MACHINERY ITEM (09) - CHASSIS

1

L19472

BUCKET - loader, 1-1/2 cu. yd. (Standard) Machinery item, Includes: Ref. 2

1шт.

2

A18590

CUTTING EDGE - bucket

1шт.

1

L19471

BUCKET - loader, 1-1/2 cu. yd. (Heavy Duty) Machinery item, Includes: Ref. 2

1шт.

2

A56284

CUTTING EDGE - bucket

1шт.

3

L19485

BUCKET - loader, 2 cu. yd. (92" wide) Machinery item,1 3/4 cubic yard, Includes: Ref. 4

1шт.

4

L13913

EDGE

CUTTING EDGE - bucket, 1-3/4 cubic yard loader (machinery item)

1шт.

3

L19469

BUCKET - loader, 2 cu. yd. (96" wide) Machinery item, 1-3/4 cubic yard, Includes: Ref. 4

1шт.

4

L13928

CUTTING EDGE

- bucket, 1-3/4 cubic yard loader (machinery item)

1шт.

3

L19468

BUCKET - loader, 3 cu. yd. (110" wide) Machinery item, 3 cubic yard, Includes: Ref. 4

1шт.

4

A19010

BLADE

CUTTING EDGE - bucket, 3 cubic yard loader (machinery item)

1шт.

L10085

BUCKET TOOTH

TOOTH ASSEMBLY - bucket (optional on L19485, L19486, and L19469 only), Includes: Ref. 5 - 7

9шт.

5

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket (optional on L19485, L19486, and L19469 only)

1шт.

6

D39093

TOOTH

POINT - tooth, bucket (optional on L19485, L19486, and L19469 only)

1шт.

7

D39094

BUCKET TOOTH KEY

FLEX PIN - point, bucket teeth ( optional on L19485, L19486, and L19469 only)

1шт.

8

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Bucket teeth (optional on L19485, L19486, and L19469 only) Hex, 5/8"-11 x 3", G5

9шт.

9

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Bucket teeth (optional on L19485, L19486, and L19469 only Hex, 5/8"-11 x 2 1/4", G5

9шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Bucket teeth (optional on L19485, L19486, and L19469 only) 5/8"

18шт.

11

25-1010

NUT,5/8"-11, G5

Bucket teeth (optional on L19485, L19486, and L19469 only) 5/8"-11, G5

18шт.
