Запчасти Case W9B (242) - CAB HEATER (09) - CHASSIS

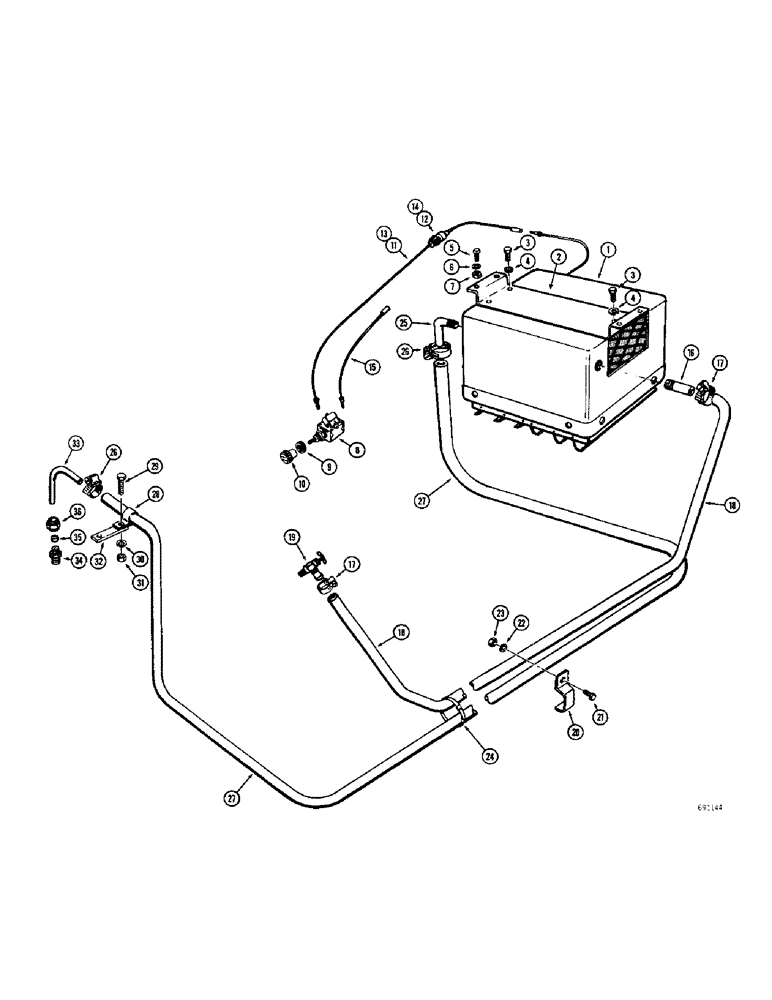

Схема запчастей Case W9B - (242) - CAB HEATER (09) - CHASSIS

Артикул

Название

Примечание

Количество

1

A19973

HEATER - cab (12 volt) Gas

1шт.

A18347

MOTOR HOUSING

MOTOR - heater (Not illustrated)

1шт.

L30009

FAN

- heater (Not illustrated)

1шт.

1

A19972

HEATER - cab (24 volt) Diesel

1шт.

A18348

MOTOR - heater (Not illustrated)

1шт.

L30009

FAN

- heater (Not illustrated)

1шт.

2

A19939

BRACKET - heater mounting

1шт.

3

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

3шт.

4

92-5

LOCK WASHER,5/16"

3шт.

5

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

6

92-5

LOCK WASHER,5/16"

4шт.

7

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

8

A12898

SWITCH

ASSEMBLY - heater

1шт.

9

A19945

NUT - switch mounting

1шт.

10

A19944

KNOB - fan switch

1шт.

11

L34010

WIRE ASSEMBLY - switch to heater (Gas), Includes: Ref. 12

1шт.

12

223-15

FUSE,15 Amp, Type 3AG

- heater fan (15 amp)

1шт.

13

A19937

WIRE ASSEMBLY - switch to heater (Diesel), Includes: Ref. 14

1шт.

14

223-7

FUSE,7 1/2 Amp, Type SFE

- heater fan (7-1/2 amp)

1шт.

15

A14733

ELECTRICAL WIRE

WIRE - heater switch to key switch

1шт.

16

A19940

PIPE

NIPPLE - straight, Serial Range: heater-hose

1шт.

17

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

18

A19942

HOSE

- heater to engine block

1шт.

19

A16764

VALVE

- shutoff, hose to engine block

1шт.

20

A13029

CLIP

CLAMP - heater hose, at master cylinder mounting bracket

1шт.

21

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

1шт.

22

92-5

LOCK WASHER,5/16"

1шт.

23

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

24

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - heater hose to engine block

1шт.

25

A19941

PACKAGE

ELBOW - 90 degrees, Serial Range: heater-hose

1шт.

26

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

27

A19943

HOSE

- heater to water pump

1шт.

28

A27256

CLAMP

-, Serial Range: hose-strap

1шт.

29

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

30

92-5

LOCK WASHER,5/16"

1шт.

31

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

32

A19330

STRAP, Serial Range: --manifold

1шт.

33

A14770

TUBE - heater hose to connector (Used with diesel models only)

1шт.

222-29

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - straight male, flex tube (1/2" tube) Used with diesel models only, Includes: Ref. 34 - 36

1шт.

34

NSS

NOT SOLD SEPARAT

CONNECTOR - male, straight

1шт.

35

222-105

SLEEVE,182" Tube

- flex tube

1шт.

36

222-115

NUT,13/16"-18

- flex tube

1шт.

Выбрано товаров: 42
