Запчасти Case W9B (124) - RADIATOR, GRILLE AND SHUTTER (09) - CHASSIS

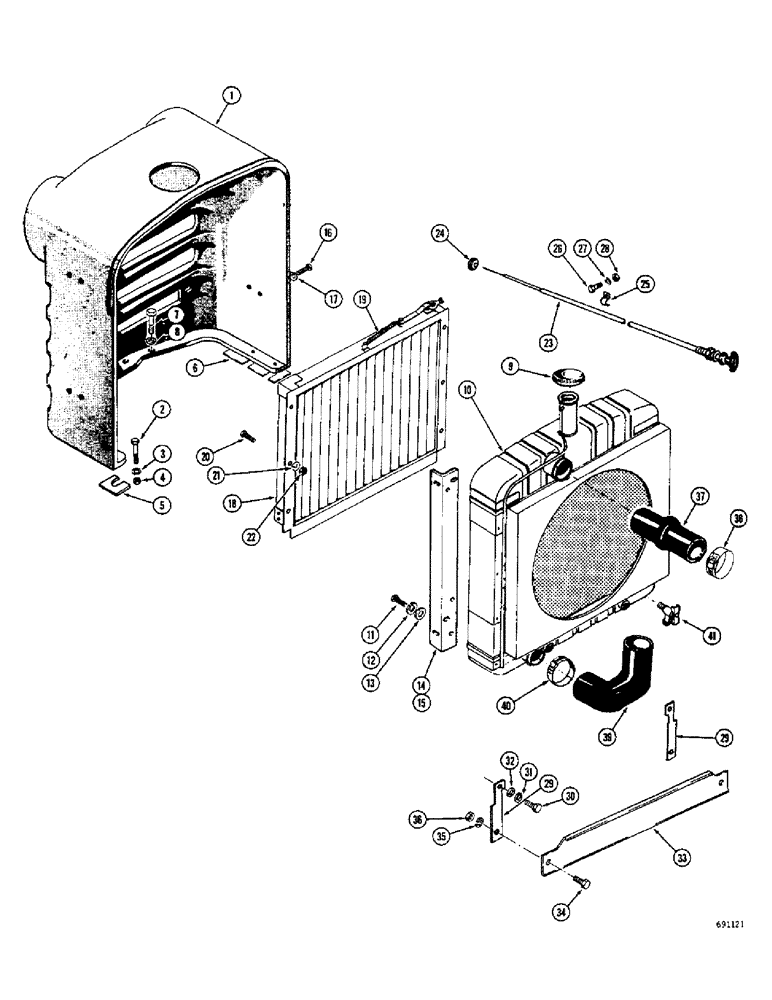

Схема запчастей Case W9B - (124) - RADIATOR, GRILLE AND SHUTTER (09) - CHASSIS

Артикул

Название

Примечание

Количество

1

A15030

GRILLE - radiator guard

1шт.

2

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

5

A15087

SPACER -, Serial Range: grille-frame

1шт.

6

L19701

SPACER -, Serial Range: grille-frame

2шт.

7

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 20 NF x 1-1/2"

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

A21389

CAP

- radiator (7 P.S.I.)

1шт.

10

L10089

RADIATOR

- cooling system

1шт.

11

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-24 x 5/8", G5, Full Thd

4шт.

12

92-5

LOCK WASHER,5/16"

4шт.

13

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

4шт.

14

A18648

ANGLE - radiator mounting, L.H.

1шт.

15

A18649

ANGLE - radiator mounting, R.H.

1шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

A15939

SHUTTER - radiator, Includes: Ref. 19

1шт.

19

A9909

SPRING - shutter

1шт.

20

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-24 x 5/8", G5, Full Thd

4шт.

21

92-5

LOCK WASHER,5/16"

4шт.

22

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

4шт.

23

A9251

CABLE - shutter control

1шт.

24

A17599

GROMMET,1/4" ID x 7/16" Groove Dia

- rubber, shutter cable

1шт.

25

A26673

CLIP

- shutter cable

1шт.

26

173-99

SCREW,Sl Rnd Hd, #10 - 24 x 5/8"

- machine, round head (#10 - 24 NC x 5/8")

1шт.

27

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

28

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24 NC)

1шт.

29

A18647

SUPPORT - lower baffle

2шт.

30

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

31

92-5

LOCK WASHER,5/16"

2шт.

32

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

2шт.

33

A15491

BAFFLE - heat, lower

1шт.

34

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

HHCS - 1/4" - 28 NF x 5/8"

2шт.

35

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

36

25-114

NUT,1/4"-28, G5

- hex. (1/4" - 28 NF)

2шт.

37

A19496

HOSE

- radiator, upper

1шт.

38

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, upper

2шт.

39

A15490

RADIATOR HOSE,2.25" ID, SAE 20 R4

Lower 2.25" ID, SAE 20 R4

1шт.

40

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, lower

2шт.

41

A23655

VALVE

- radiator drain

1шт.

Выбрано товаров: 41
