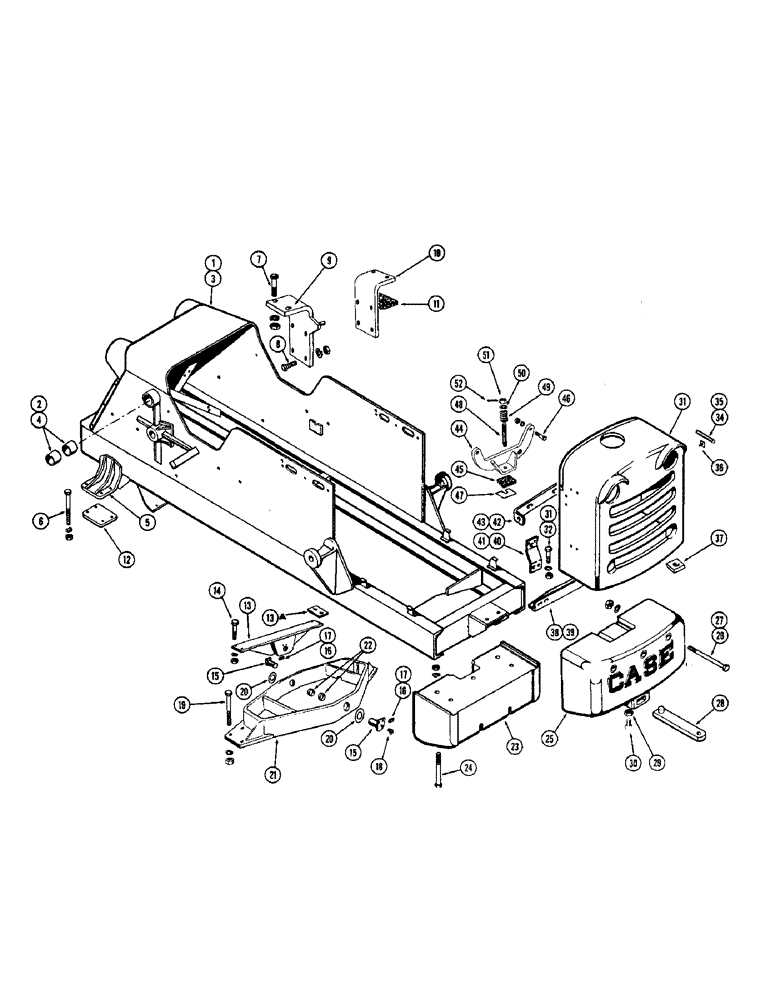

Запчасти Case W9A (164) - CHASSIS ASSEMBLY, COUNTERWEIGHT AND DRAWBAR, RADIATOR GRILLE (09) - CHASSIS

1

A17878

CHASSIS ASSY - loader (Late models)

1шт.

2

A16761

BUSHING

- lift arm pivot

4шт.

3

A15177

CHASSIS ASSY - loader (Early model)

1шт.

4

A16761

BUSHING

- lift arm pivot

4шт.

5

A12144

BRACKET - mtg., frt. axle (Weld in place)

2шт.

6

14-12128

BOLT,Hex, 3/4" - 16 x 8", Gr 5

- 3/4" x 8-1/2" N.F., hex

8шт.

7

14-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 5

- 3/4" x 3" N.F., hex

4шт.

8

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

8шт.

9

A15592

BRACKET ASSY - mtg., trans R.H.

1шт.

10

A15593

BRACKET - mtg. transmission, L.H.

1шт.

11

A15600

PAD - mtg. bracket, felt

2шт.

12

A14959

PLATE - mtg., frt. axle, lower

2шт.

13

A12086

BRACKET

SUPPORT ASSY - pivot, rear axle, upper

1шт.

13a

A12846

SHIM - pivot pin, mtg. brkt.

1шт.

14

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

4шт.

15

A15155

AXLE PIN

PIN - pivot, rear axle brkt

2шт.

16

A15157

LOCK ASSY

LOCK - pivot pin

2шт.

17

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

- 1/2" x 1" N.C., hex

4шт.

18

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

19

14-12112

BOLT,Hex, 3/4" - 16 x 7", Gr 5

- 3/4" x 7" N.F., hex

8шт.

REFER TO ILLUSTRATION, REF#19 THE WASHER IS PART 92-12 AND THE NUT IS 25-1112

1шт.

20

A12089

WASHER,38.89mm ID x 76.2mm OD x 1.9mm Thk

- pivot pin

3шт.

21

A12082

BRACKET

ASSY - mtg., rear axle, lower

1шт.

22

A7707

BUSHING

- pivot pin, brkt

2шт.

23

A12253

COUNTERWEIGHT - rear, lower, counterweight and drawbar

1шт.

24

13-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

- 3/4" x 8-1/2" N.C., hex, counterweight and drawbar

5шт.

25

A12252

COUNTERWEIGHT - rear, upper, counterweight and drawbar

1шт.

26

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

Counterweight and drawbar Hex, 3/4"-10 x 4", G5

2шт.

27

13-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

Counter weight and drawbar Hex, 3/4"-10 x 7", G5

3шт.

28

A12249

BAR ASSY - draw, counterweight and drawbar

1шт.

29

425-1410

JAM NUT,Jam, 5/8"-11, G5

- jam, 5/8" N.C., hex, counterweight and drawbar

1шт.

30

85-1032

SCREW - set, 5/8" x 2" N.C., sq. hd. cup pt., counterweight and drawbar

1шт.

31

A15030

GRILLE - radiator, radiator grille

1шт.

32

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2" x 1-1/4" N.F., hex, radiator grille

2шт.

33

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

- 1/2" x 2" N.F., hex, radiator grille

4шт.

34

A12362

MOLDING - grille, R.H., radiator grille

1шт.

35

A12363

MOLDING - grille, L.H., radiator grille

1шт.

36

A12364

CLIP - grille molding, radiator grille

4шт.

37

A13264

SHIM - radiator grille

1шт.

38

A15935

SUPPORT - mtg., tail lamp, radiator grille

1шт.

39

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- 1/2" x 1-1/2" N.F., hex, radiator grille

2шт.

40

A15938

BRACKET - mtg., tail lamp, radiator grille

2шт.

41

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Radiator grille Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

42

A15934

BRACKET - tail lamp (Metal mtd. only), radiator grille

1шт.

43

76-620

SCREW - mach., 3/8" x 1-1/2" N.C. rd. hd., radiator grille

2шт.

44

A15207

SUPPORT ASSY - mtg., engine, engine mount

1шт.

45

A15599

PAD - engine support (Felt), engine mount

1шт.

46

14-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

- 3/4" x 2-1/4" N.F., hex, engine mount

4шт.

47

A16371

SHIM - engine support, engine mount

2шт.

48

A15596

STUD - engine mounting

1шт.

49

A12227

VALVE SPRING

SPRING - engine mounting

1шт.

50

95-14

WASHER,7/8"

- wrought, SAE, engine mount 7/8"

1шт.

51

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - slotted, 7/8" N.F., hex, engine mount

1шт.

52

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), , Engine mount 3/16" x 2"

1шт.
