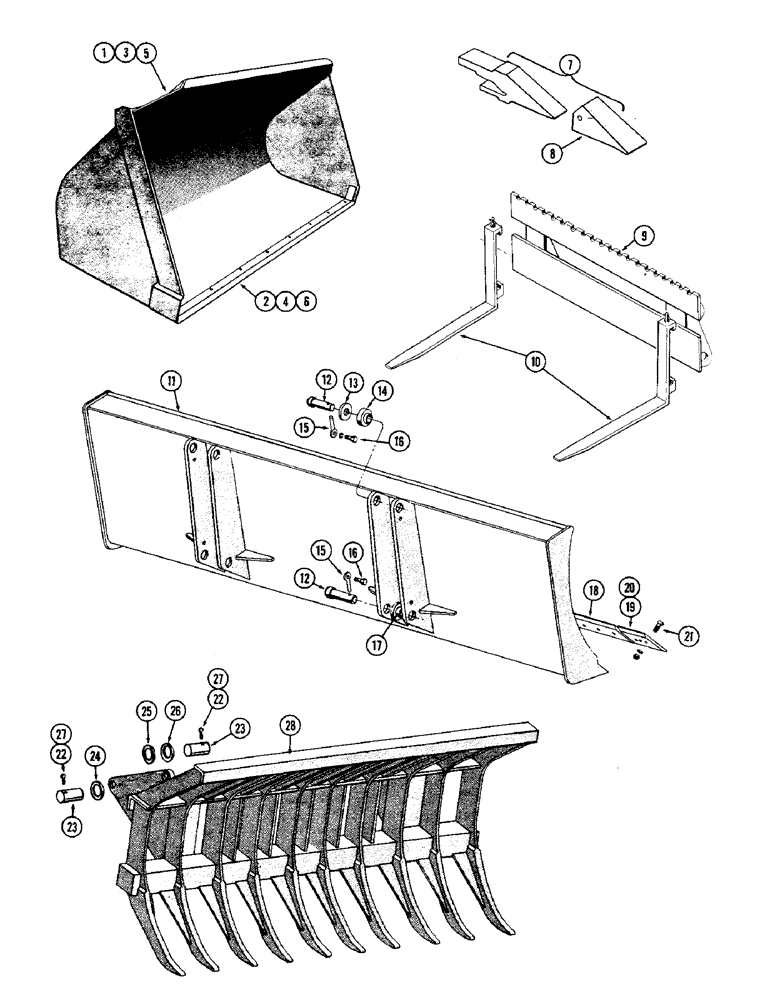

Запчасти Case W9A (146) - BUCKETS, FORKLIFT, DOZER, BRUSH RAKE (09) - CHASSIS

1

A12622M

BUCKET ASSY - 1-1/4 cu. yd. (Heavy duty)

1шт.

2

A12619

CUTTING EDGE - bucket (76-5/8")

1шт.

3

A12883M

BUCKET ASSY - 1-5/8" cu. yd. (Standard)

1шт.

4

A16452

CUTTING EDGE - bucket (88-5/8" inside)

1шт.

5

A12641M

BUCKET ASSY - 2-1/2 cu. yd. (Light)

1шт.

6

A12631

CUTTING EDGE - bucket (96-1/2" inside)

1шт.

7

A12855M

TOOTH SET - bucket, 8 used w/1-1/4 cu. yd. & 9 used w/1-5/8" cu. yd. bucket)

9шт.

8

A12854

TOOTH

POINT - tooth, bucket

1шт.

9

A15721

MOUNTING - fork lift

1шт.

10

A15731

FORK ASSY - ballet, fork lift

2шт.

11

R14478

BLADE ASSY - dozer

1шт.

12

R13262

PIN - pivot, upper & lower, dozer

4шт.

13

R13257

SPACER - pivot pin, upper (Outer), dozer

2шт.

14

R13258

SPACER - pivot pin, upper (Inner), dozer

2шт.

15

A10615

LOCK ASSY

PIN - lock, pivot pin, dozer

4шт.

16

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Dozer Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

17

R13252

SPACER - pivot pin, lower (Inner), dozer

2шт.

18

16792

EDGE, CUTTING

BLADE - cutting, dozer

1шт.

19

70441

BLADE

- cutting, R.H. end, dozer

1шт.

20

70442

BLADE

- cutting, L.H. end, dozer

1шт.

21

19-832

BOLT

- plow, 1/2" x 2" N.C., dozer

18шт.

22

A10615

LOCK ASSY

PIN - lock, pivot pin, brush rake

4шт.

23

R13262

PIN - pivot, upper & lower, brush rake

4шт.

24

R13252

SPACER - pivot pin, lower (Inner), brush rake

2шт.

25

R13258

SPACER - pivot pin, upper (Inner), brush rake

2шт.

26

R13257

SPACER - pivot pin, upper (Outer), brush rake

2шт.

27

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

- 1/2" x 1" N.C., hex., brush rake

4шт.

28

R13541

RAKE ASSY - brush, brush rake

1шт.
